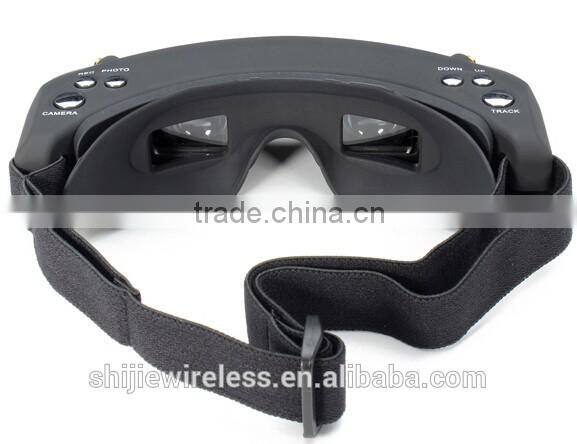

Help CenterSkyzone FPV Goggles 5.8G New 40CH Dual Diversity Receiver Head Tracker V2 SKY-01
Related Products
-
Skyzone SKY02 SKY02S V3 5.8G 40CH AIO 3D FPV Goggles Only Video Glasses HeadsetUS$ 509.00 - 509.00MOQ: 5 Units -
SKYZONE V3 SKY02 3D FPV VIDEO GOGGLES GLASSES DIVERSITY HEAD TRACKING 3D CAMERAUS$ 509.00 - 509.00MOQ: 5 Units
-
Skyzone SKY02 V3 40CH AIO 3D FPV Goggles Headset Head Tracing Glass SKY-02 5.8GUS$ 509.00 - 509.00MOQ: 5 Units
-
High Quality Skyzone SKY02 3D FPV Goggle/Video Glasses +Receiver Head Track JQ3VUS$ 509.00 - 509.00MOQ: 5 Units
-
2016 NEW HD Head-wearing Video Glass SJ-V01US$ 299.00 - 299.00MOQ: 5 Units
Description:
The all-in-one GOGGLES with build- in A/V receiver and virtual real-time large-screen display can connect with the RC Transmitter with a data cable, RC Transmitter supply power to the AIO GOGGLES. Along with the AIO GOGGLES tracking signal output to the RC Transmitter, the AIO GOGGLES tracking signal and the RC Transmitter control signal received by the receiver in the RC Aircraft. Images and sound captured by Camera are transmitted to the sky by the A/V Transmitter, Then, AIO GOGGLES can receive video and audio within a certain range, people who wear a AIO GOGGLES can see the images from the virtual real-time large-screen display, and hear the sound from the earphone.

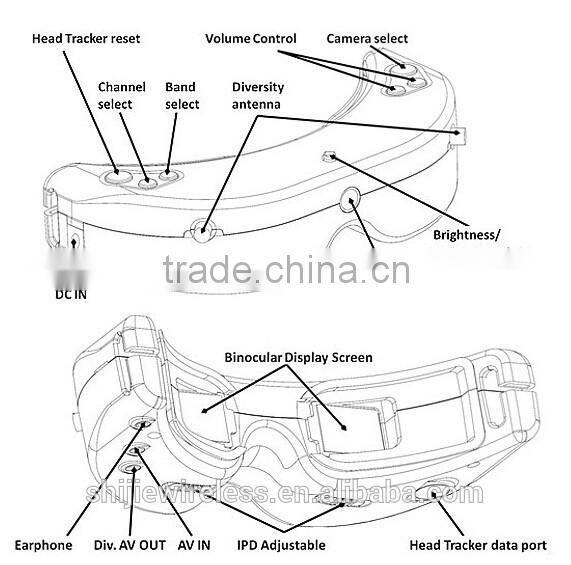

Features:
IPD Adjustable
Built-in Dual Diversity Receiver
Built-in Wide Angle Front View Camera
Built-in Dual-Axis Head Tracking System
High Resolution: 854 x 480 (WVGA), 1230K Pixels
High Sensitivity 4 Bands Total 32 Channel Receiver
Wide Voltage Support: 7V-28V (2S-6S Lipo Battery)
Brightness/ Contrast Settingss
It`s easy to setup the Brightness and Bontrast with the 5-position switch. Short press to adjust gradually; long press to adjust continuously. It will automatically saved if there is no operation within 5 secs. Press center button to adjust Brightness/Contrast to factory default.
The Benefits of Goggles with Diversity:
A diversity system uses two different video receivers, and two different video antennas. This gives you a better chance of receiving a clean and unobstructed signal. These are connected by a diversity unit that chooses the best video signal. You could mount one of the stock antennas vertically and one horizontally. For best results you want to use different types of antennas. This gives you the option of using a long range directional antenna for one receiver and a non-directional antenna for the other. The diversity system automatically chooses which antenna is receiving the best signal at any moment.
Front Camera:
The front camera is wide-angle camera with 680 x 480 (VAG) resolution and good low illumination. It is very convenient to view around without removing the Googles. The external camera allows you to keep the goggles on for small jobs and landing. The lens on the external camera does seem to make things look farther away. Press "Camera" button to open the front camera.
5.8 Diversity Unit:
These goggles have a built-in 8 channel/4 band 5.8G diversity unit. This allows you to use this unit with most FPV 5.8G transmitters on the market like Foxtech, DJI, Walkera and more.
Dual Receivers & Dual Antennas:
There are two 5808 receivers in this set of goggles. The unit comes with two vertical omni stock 50ohm antennas with SMA connectors.
Monitors:
The goggles have dual 854X480(WVGA) monitors with 1230K Pixels
Head Tracking
These goggles have built-in self calibrating head tracking that utilizes a gyro.
-PPM Channel Setup
-Pan Tracking Range Setting
NOTE - If you use the Futaba trainer plug you can power the goggles that way (no external lipo needed).
Lipo Powered:
A nice feature with these goggles is that just about any lipo you have can power them. The input power plug accepts voltages of DC 7- 28v/1A. I find that a two or three cell lipo does a good job.
FOV (Field of View):
The SkyZone goggles have 30 degrees (diagonal).
Diopter Lens:
The goggles also have removable optic lenses. These slide out. It comes with a pair installed with no correction. You can order lenses to help correct for myopic (near sighted) vision. This allows users that normally wear glasses to see far away to use the FPV goggles. People that only need reading glasses typically do not need any lens correction for the goggles. The lens sets sold for FatShark goggles also fit these goggles.

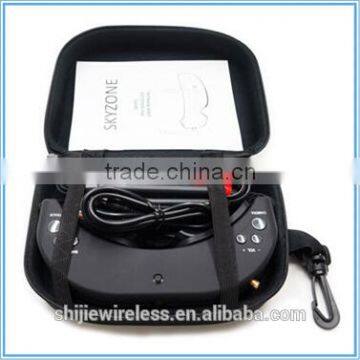

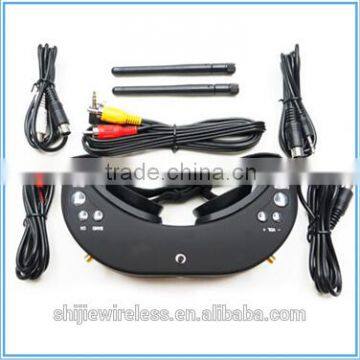

Package Includes:
1 x Skyzone SKY01 FPV Goggles
2 x 5.8G 2dbi Antennas

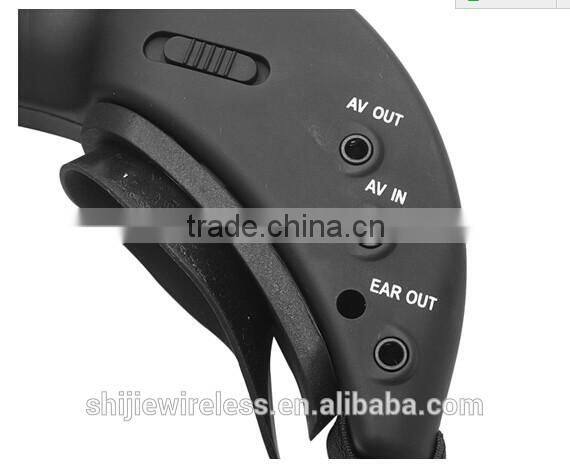

1 x AV Cable
1 x FUTABA Data Cable
1 x JR Data Cable
1 x WFLY Data Cable
1 x Power Cable

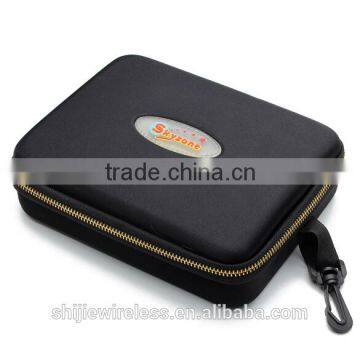

1 x Carry bag
1 x Manual
