Skyzone SKY02 V3 40CH AIO 3D FPV Goggles Headset Head Tracing Glass SKY-02 5.8G
US$ 509.00 - 509.00
MOQ: 5 Units
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
SKYZONE
Model Number:
SKY-02
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Skyzone SKY02 3D FPV Goggle/Video Glasses +Receiver Head Track JQ3VUS$ 509.00 - 509.00MOQ: 5 Units -
2016 NEW HD Head-wearing Video Glass SJ-V01US$ 299.00 - 299.00MOQ: 5 Units
-
SKYZONE 3D Goggle Camera SKY-301US$ 89.00 - 89.00MOQ: 5 Units
-
SKYZONE 3D Goggle 40CH Diversity Receiver SKY-201US$ 109.00 - 109.00MOQ: 5 Units
-
Skyzone 3D GOGGLEUS$ 509.00 - 509.00MOQ: 5 Units
Place of Origin
China
Brand Name
SKYZONE
Model Number
SKY-02
Frame Material
Silicone
Usage
Other, RC MODEL
Lenses Material
Polycarbonate
Lenses Color
Transparent
Product Description
Description:
Brand Name: Skyzone
Item Name: 3D FPV Goggles
Item NO.: SKY02 AIO
Dimensions : 168(L)X92.5(W)X41(H)mm (Not include prominent part)
Weight : 190g
Operating Temperature : 0℃~+60℃
Specification:
Display
FOV : 30 degrees (Diagonal)
Resolution : 854X480(WVGA) 1,229,760 color sub-pixels
Brightness : 350cd
Interpupillary distance(IPD): 59-69mm Adjustable
Wireless Receiver: ISM 5.8GHz 32 Channel, Diversity receiver.
Sensitivity : -90dBm±1dBm
Antenna port : 2 X SMA,50ohm
Preset Frequency:
CH1 5733M / 5771M;
CH2 5752M / 5790M;
CH3 5809M / 5847M;
CH4 5828M / 5866M
Custom Frequency :
Band CH 1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
A 5865M5845M5825M5805M5785M5765M5745M5725M
B 5733M5752M5771M5790M5809M5828M5847M5866M
E 5705M5685M5665M5645M5885M5905M5925M5945M
F 5740M5760M5780M5800M5820M5840M5860M5880M
Front Camera
FOV : 60 degrees (Diagonal)
Resolution : 640X480(VGA)
FOCAL LENGTH : f=4.0mm
F/NO : F/NO=2.8
Head Tracker
Sensor : Magnetic, Inertial and gyro
Output : PPM 8 channel, Optional 5-6CH,5-7CH,5-8CH,6-7CH,6-8CH,7-8CH
Record
Micro SD : Support to 32GB
Compression : MJPEG, 30fps, AVI
Picture : JPEG
Record rate : 6Mbps
AV Signal
Video Standard : NTSC/PAL
Video output level : 1.0Vp-p Typ. / 75ohm
Audio output level : 1.0Vp-p Typ. / 10Kohm
AV Port
Div. AV OUT(3.5mm4P) : Diversity Video, Audio output
EAR OUT(3.5mm3P) : Stereo 16Ω/150mW
AV IN(3.5mm4P) : Video/Audio input
Power Supply
DC IN : DC 7~26V/ 1A
Power Consumption : 12V input: 5.4W
Features:
3D Vision FPV Goggles,more vivid visual experience as a whole.
Can also work in normal diversity mode in 2D vision.
Built-in 5.8Ghz Diversity Receiver and two independent video display modules It requests the 3D camera SKY301 and the dual transmitter SKY201.
Well compatible with SKY201 and most of other transmitters.
Supports 4 Bands and total 32channels
Package Included:
1 x Goggles
2 x Antenna

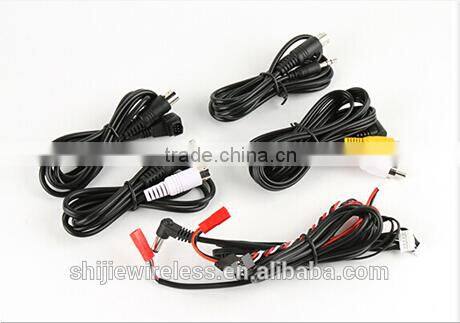

1 x Cable Pack
Package Included:
1 x Goggles
2 x Antenna
1 x Cable Pack

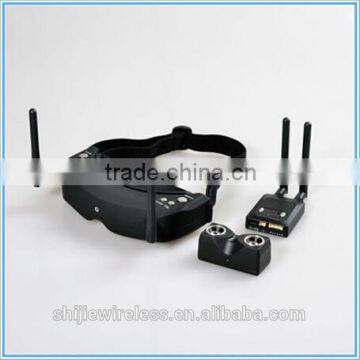

Product Pictures:
SKY-02 CE certifications:
