addressable fire alarm system of electrical input module
Overview:

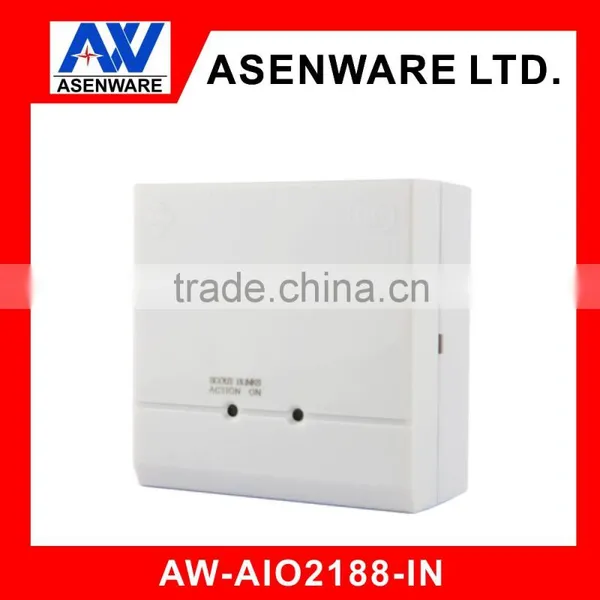

1:The AW -AIO2188-IN Intelligent input module (AW-AIO2188-IN module for short) is used with AW -AFP2188,
a two-bus fire alarm control panel.
2:It can be connected with a conventional smoke detector, a conventional heat detector, a conventional
manual call point, a conventional hooter/horn and some other equipment.
3:After the said equipment starts to operate, the alarm signal output will be sent by the AW-AIO2188-IN module
to the fire alarm control panel through a signal bus to give a fire alarm.
Features and technical parameters:
| 1. Mode of operation: Nonpolar two-wire system |
| 2. Quiescent current: <0.5mA (bus); <6mA (power line) |
| 3. Action current: <2mA (bus); <15mA (power line) |
|
4. Operation indicator: The inspection indicator will blink once about every 12 seconds in the inspection status or remain lit in the operation status. |
|
5. Operating environment: Temperature: - 10 ℃ ~ 50 ℃ ; relative humidity: ≤ 95% (40 ℃ ± 2 ℃ , without condensation) |
| 6. Terminal load: 4.7K resistance |
| 7. External dimensions: 86×86×40(mm) |
| 8. Weight: about 119g |
| 9. Executive standard: GB16806-2006 |
Instructions for use
Q1: How about the quality of the products?
A: We produce every product with good quality materials, and test carefully to make sure stable quality
before shipment.
Q2: Can I have a sample order?
B: Yes, Of course you can . we welcome sample order for your testing and checking products quality.
Mixed samples are avaliable.
Q3: What is the shipping time?
C: Small Qty order needs 3-5 working days, big Qty order usually needs 10-5 working days after payments arriving.
That's depends on order Qty.
Q4: How to proceed the order if I have logo to print?
D: We will prepare artwork for visual confirmation at first, if the color and position are alright,we will make print
Logo sample from silk print factory and take picture for you to comfire before mass production.
