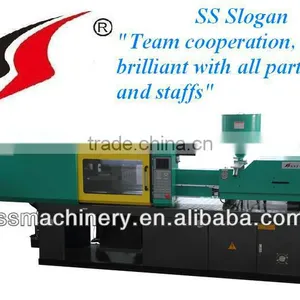

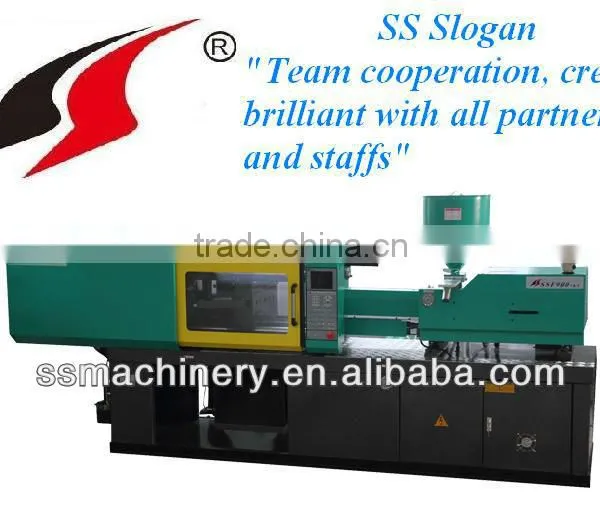

90T plastic moulding machine supplier
Main parameters of 90T injection molding machine as below;
| Items | Parameter | Unit | Parameter Value (SSF900-K5) | ||
| Injection Unit | Screw diameter | mm | A | B | C |
| 32 | 35 | 38 | |||
| Screw L/D ratio | L/D | 24.8 | 22 | 20 | |
| shot volumn (theoretical) | Cm3 | 112 | 134 | 158 | |
| injection weight(PS) | g | 102 | 122 | 144 | |
| plasticizing capacity | g/s | 10.5 | 11.6 | 13 | |
| injection rate | g/s | 90 | 107 | 126 | |
| injection pressure | Mpa | 208 | 174 | 148 | |
| screw speed | rmp | 220 | |||
| Clamping unit | clamp force | KN | 900 | ||
| open stroke | mm | 290 | |||
| space between bars (W*H) | mm | 360*320 | |||
| max mould height | mm | 380 | |||
| min mould height | mm | 150 | |||
| ejector stroke | mm | 80 | |||
| ejector force | KN | 31 | |||
| ejector number | PC | 5 | |||
| mould align diameter | mm | 125 | |||
| Others | max pump pressure | Mpa | 16 | ||
| pump motor power | KW | 9 | |||
| heating power | KW | 6 | |||
| machine dimension | m | 4*1.27*1.75 | |||
| machine weight | T | 2.9 | |||
| oil tank capacity | L | 150 | |||
Optional features;
Double cylinder core pulling and air blast
Hydraulic unscrew device and safety device
Optional auxiliary
Robot system
Hopper dryer
Auto loader
Hopper Magnet
Mold clamps
Water cooler
Plastic dehumidizer
Mold temperature controller
Oil temperature controller
Oil bypass filter
Warranty;
Machines that used within 12 months(Based on the date machine leaves our company) will be warranted as below;
1.Warranty of mechanical components(except screw and barrel) is 12 months;
2.Warranty of electrical appliances and hydraulic units(except heating ring) is 6 months;
3.Warranty of screw, barrel and heating ring is 3 months;
4. Above warranty is not applicable for the errors that due imporper operation.
Spare parts;
1.Nozzle
2.Lubricate oil
3.Seal rings(5pcs)
4. Tool box
5. Other tools such as spanner, straight screwdrivers;
6. Crash pad

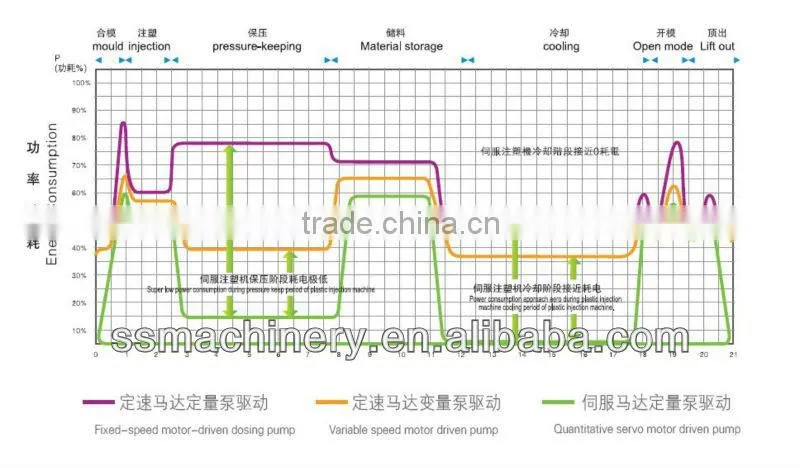

Energy saving chart compared variable and pixed pump;
We manufacture injection molding machine per ISO9001:2008 quality requirements, CE is optional per customer's requirements;
Our company respects every staff, values the opportunities to each partners, with our management ideas, we have developed steadiliy over these years, we promise to provide good quality plastic injection machines to our customers, we strive to promote our Shuangsheng brand injection molding machines to more oversea customers.
Organization Chart
If you have any query about our injection molding machine, just contact me at any time
Alexis Liao
Mobile photo:+8613806673276(whats app&we chat ID)
QQ:1159033100
