18MM Tire Plant Producing Line

FOB Price

US$ 55,000 - 60,000 / Set

1 Set(Min. Order)

Port qingdao
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Boring Machine
Place of Origin	Shandong, China	Brand Name	shining asia
Model Number	30000M3	Voltage	380V
Power(W)	10000kw	Certification	ISO9004
Warranty	3years	After-sales Service Provided	Overseas third-party support available

Product Description

Specifications

partcle baord prodution line30,000CUBIC METER/YEAR 100 m3/day, 22.5hours/day, 300days/year,SURFACE SIZE: 1220x2440MM,THICKNESS

PARTICLE BOARD PRODUCTION LINE

MACHINES AND EQUPMENT LIST

PRODUCTIONE LINE SPECIFICATION:

30,000CUBIC METER/YEAR(100 m³/day, 22.5hours/day, 300days/year)

SURFACE SIZE: 1220x2440MM,THICKNESS: 6~25MM

Chipper Section

NAME	Description
drum chipper	BX218
belt conveyer	10000×500mm
magnet
chip silo	50 m3

Flake Section

NAME	Description
belt conveyer	500×6000mm
pulverizer	37KWX2
flake pipeline	7000mmX2
flake silo	480m³
hopper	10000×8000×2000mm
screw feeding out pipe	4000mm
belt conveyer	6000mm
magnet
screen	6000 mm×1500mm
belt conveyer of unqualified flake	6000mm
Screw conveyor	4000mm
dryer	12000mm×1600mm
sieve	1500mm×6000mm
hopper
Screw conveyor & belt conveyer	3000mm+8000mm
core flake silo	30m³
Surface flake silo	50m³
Screw conveyor	4000mm

Glue Section

NAME	Description
glue vat	6000mm×2000mm
glue pump	0.7 KW X2
glue blender	2000×500mm, 18KWX2
belt conveyer	1000mmX2

Forming & Pressing Section

NAME	Description
forming machine	1800mm×6000mm
belt conveyer	1500×2800mm
belt conveyer with centering device
pre-press	2400mm
belt conveyer	1500×1500mm
edge trim saw for mat-board	2.2 KW-2 X2
cut saw	2.2 KW-2
belt conveyer	1500×3000mm
Accelerate belt-conveyer	1500×4000mm
belt conveyer	1500×3000mm
scale	1500×3000mm
unqualified board collect system	500×6000mm
belt conveyer	1500×3000mm
Accelerate belt-conveyer	1500×4000mm
board carrier and baffler	3KW

loader	4200mm
hot press	Hot platen size: 2700×1560×90mm Hot platen number:13pcs, Cylinders diameter & number:Φ320×6
Same time closing device
unloader	4000mm
roller conveyer	1000×2200mm
turner cooler	2900mm
turner conveyer
edge trim saw for finished board	5.5KW×4
roller platform conveyer
lifter	3KW

Oil Boiler

NAME	Description
oil boiler	1600000kcal/h

Sanding Section(optional)

NAME	Description
board pusher	Φ50×500mm X2
lifter	3KW,1250×2500mm X2
roller conveyer	1500×3000mm
sander	3-head
roller conveyer	1500×3000mm
lifter	2800×1500mm X2
air compressor	5.5KW
de-dust pipeline
de-dust blower	22KW
de-dust silo	10000×8000×5000mm
Japanese PLC electric system

workshop: area2000M2, length100m,width20m

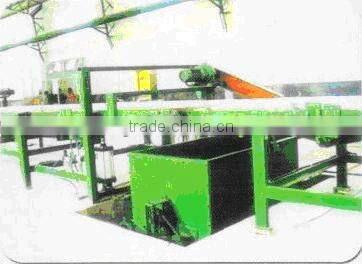

Machine Pictures:

please contact me frequently if you have interesting about it.

linyi shinning asia industry CO.,LTD

tel/fax:0086-539-8203336
