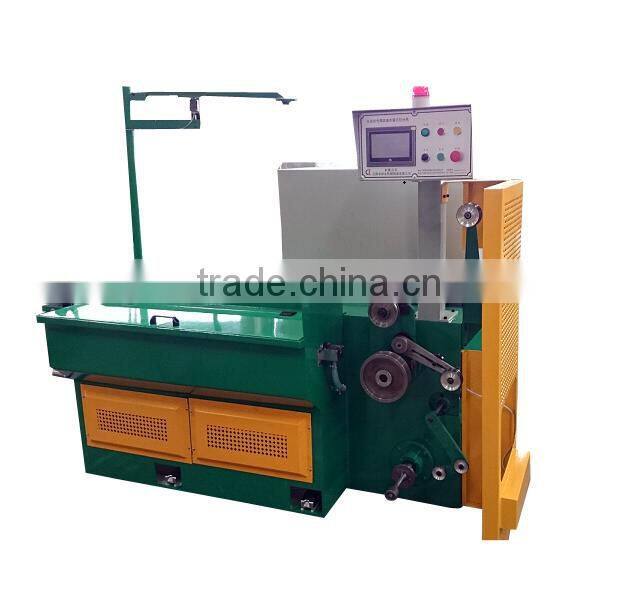

Mini gold color wire drawing machine

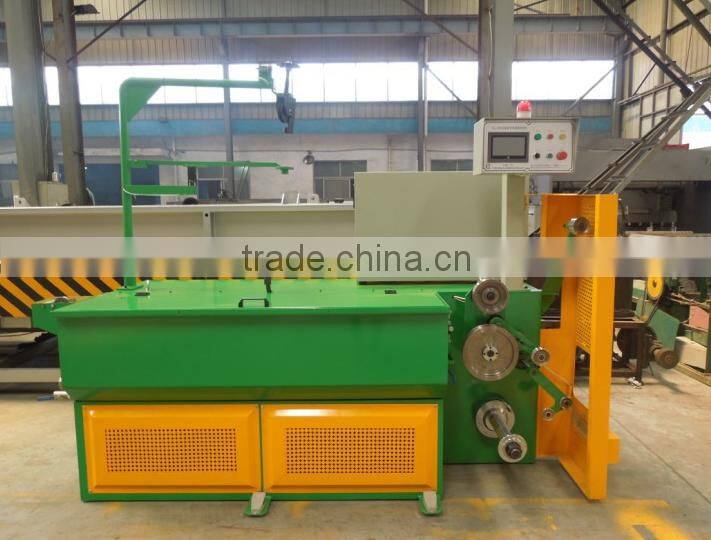

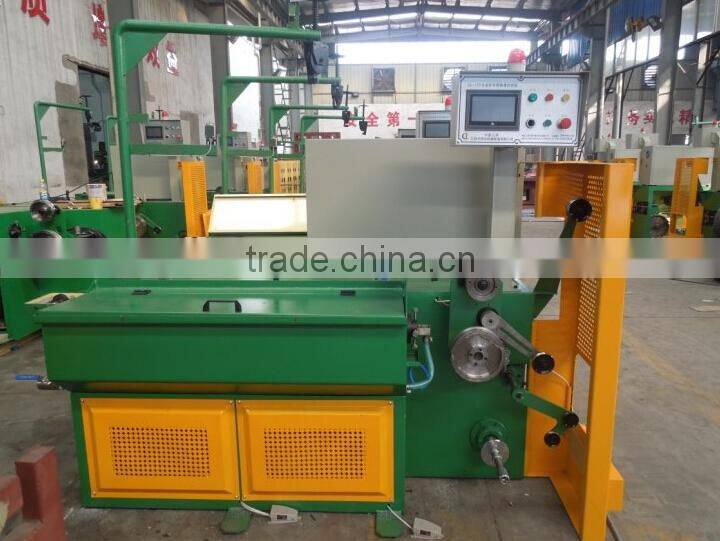

Pruduct show of gold Wire Drawing Machine
Main technical parameter of Wire Drawing Machine
Category |
CL-15D |
CL-17D |
CL-22D |
|
Wire inlet dia |
2.0mm~l.6mm |
0.6mm~0.4mm |
1.2mm~0.8mm |
|
Wire autlet dia |
l.0mm~o.5mm |
0.25mm~0.10mm |
0.4mm~0.2mm |
|
Max modules |
15 |
17 |
22 |
|
Drawing method |
Horizontal tour-step pulley type |
|||
Control system |
PLC Dual frequency conversion |
|||
Tension Control |
Automatically adjustment of precision Potentiometer |
|||
Mechanical reduction |
15.6% |
|||
Capstan Slip Ratio |
15.6% |
12% |
12% |
|
Max Line Speed |
200m/min |
800m/min |
600m/min |
|
Body Structure |
Annealed treatment of weld steel plate |
|||
step pulley |
Vacuum annealing treatment of die steel |
|||
Max.dia.of step pulley |
230mm |
170mm |
230mm |
|
Capstan dia |
253mm |
170mm |
200mm |
|
Take-up spool spec |
300mm-400mm |
250mm-0300mm |
250mm-300mm |
|
Take-up method of top butlom spools |
L-axis Locking Screw Top Heart |
|||
Take-up capacity |
50kg-100kg |
25kg-50kg |
25kg-50kg |
|
Traversing |
Adjustable winding method of stepper motor type |
|||
Main Engine Power |
HKw |
4Kw |
7.5Kw |
|
Take-up engine Power |
1.5Kw |
|||
traverse power |
90W |
|||
Transmission method |
Synchronous Wheel,synchronous Belt, Flat Belt |
synchronous Wheel' synchronous Belt |
Synchronous Wheel,synchronous Belt,Flat Belt |
|
Correction System |
Take-up automacally by Frequency converter |
|||
Drawing Lubrication method |
Modules,step pulley by fall immersion |
|||
Shaft Sealing method |
Mechanical Seal(Automatically compensation) |
|||
Braking method |
10kg Eiectromagnetic Brake |
|||
Available power |
380V50Hz/75Hz |
|||
Outline Dimension(mm) |
L2700XW1150XH2000 |
L2000XW1150XH2000 |
L2300XW1150XH2000 |
|
Weight(kg) |
2100 |
1250 |
1600 |
|
|
output: l.inlet0.4mni-outlet 0.l0mm to produce 2.98kq/hour,according to the speed of 800m/min in 24 hours the daily output are 71.52kg; 2.inlet(I).2miii-outlet 00.05mm to produce 0.747itq/hour,according to the speed of 800m/min in 24 hours the daily output are 17.92kq | ||||
We choose the best domestic delivery and handle goods carefully, using necessary protections to keep the machines away from unexpected damages. We ensure that clients will get their satisfying machines.
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
All the products of our company have already been widely used in metal products area.
Our company is located in Humen, Dongguan, Guangdong province.
In wire drawing and annealing area, based on practical experience, modern technical, united management, perfect service after sale and good reputation, especially founded public’s praise and brand image in stainless steel drawing industry.
The company focuses on developing and designing wire drawing and annealing equipment. Improving the quality of the final products. Novel design and complete functions can offer various type on basis of wire Dia. for choice to meet customers’ needs and create more convenience and economic benefit.
In wire drawing manufacturer technique, our company break the traditional opinion, use corresponding machine to produce different martial wire instead of one machine drawing various material wire, achieve one martial, one dedicated machine. The drawing technique changed also depend on wire material. Meanwhile, in the wire annealing to increase efficient, combine the wire material requirement, formulate the new technique differ from previous to make the energy substantial drop. Our wire drawing machines and accessories sells to the Far East Asia, Middle East, Africa, India and Egypt.
