Help CenterStainless Steel Cable Making Machine/Steel Wire Drawing Machine
Related Products
-
CCS Stainless Steel Fine Wire Drawing MachineUS$ 10,000 - 1,000,000MOQ: 1 Set -
Double Wire Drawing MachineUS$ 10,000 - 1,000,000MOQ: 1 Set
-
Scourer Wire Drawing MachineUS$ 10,000 - 1,000,000MOQ: 1 Set
-
Water Tank Stainless Steel Wire Drawing MachineUS$ 10,000 - 1,000,000MOQ: 1 Set
-
Inlet 0.4 -0.2mm Outlet 0.1 -0.05mm 17 Dies Steel Spring Fine Wire Drawing Machine Quality ChoiceUS$ 10,000 - 1,000,000MOQ: 1 Set

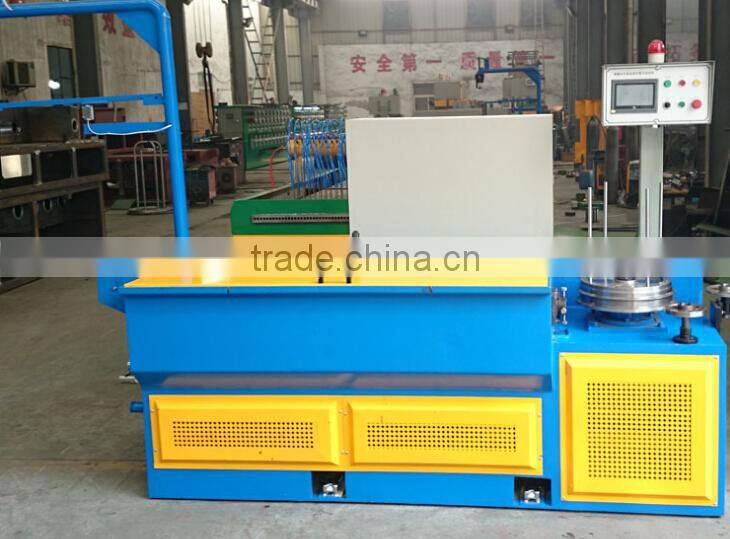

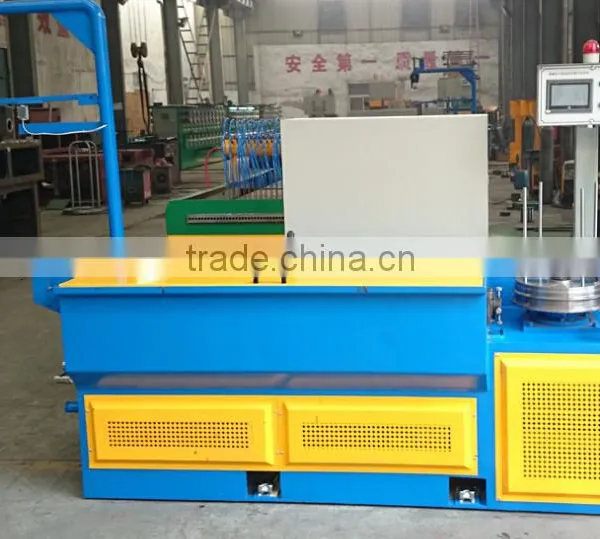

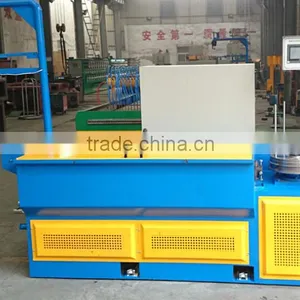

Stainless Steel Spring Wire Drawing Machine
Main technical parameter
| Category | CL-300 | CL-400 |
| Wire inlet dia | 1.5mm-1.8mm | 2.2mm-2.4mm |
| Wire outlet dia | 0.5mm-0.6mm | 0.8mm-1.4mm |
| Max modules | 15 | |
| Drawing method | Horizontal tour-step pulley type | |
| Control system | PLC Frequency conversion | |
| Mechanical reduction | 15% | |
| Capstan slip ratio | 15% | |
| Max line speed | 120m/min | 100m/min |
| Body structure | Annealed treat ment of weld steel plate | |

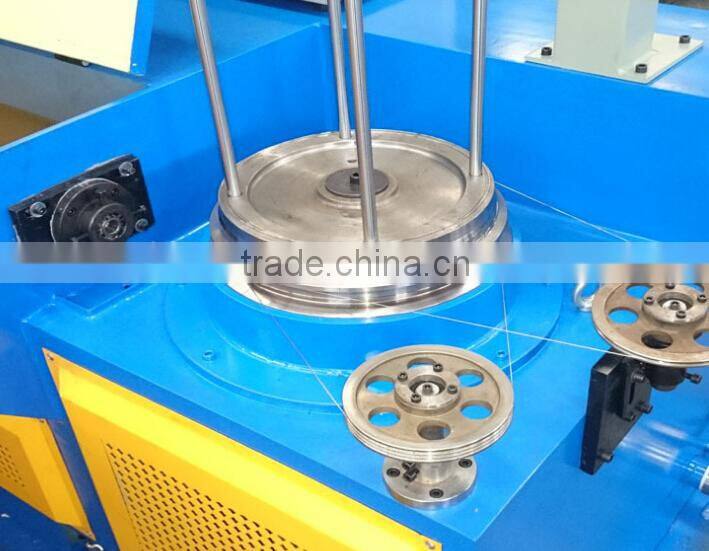

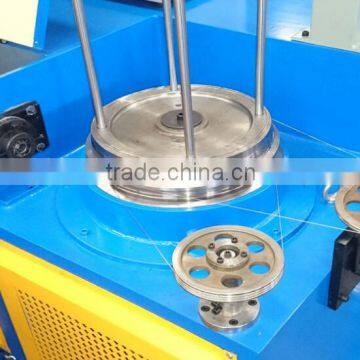

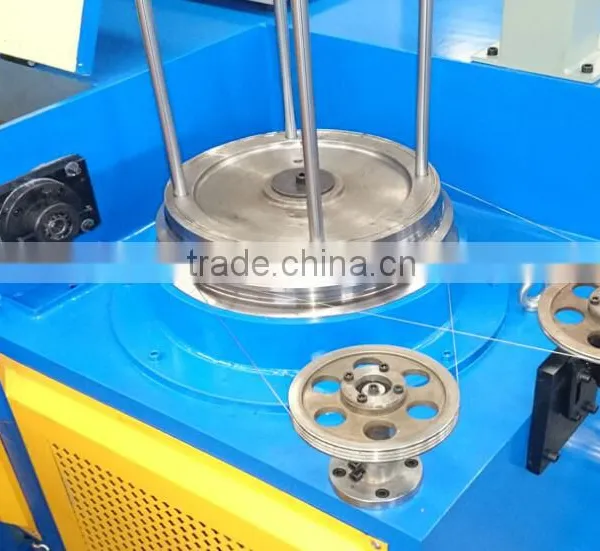

| Step pulley | Vacuum annealing treatment of die steel | |
| Max.dia.of Step pulley | 230mm | |
| Dia.of take-up reel(TaiWan) | 300mm | 40mm |
| Take-up capacity | about25kg | about40kg |
| Mam Engine Power | 7.5kw | 11kw |
| Transmission method of Main Engine | Synchronous WheeUynchronous Belt,Hat Belt | |
| Drawing Lubrication method | Modules,steppulley by full Immersion | |
| Shaft Sealing method | Mechanical Seal(Automatically compensation) | |
| Braking method | Free braking | |
| Linear adjustment | Universal adjustment of finished mold | |
| Available power | 380V 50Hz/75Hz | |
| Outline dimension(mm) | L2470xW1200xH1800 | |
| Weight(kg) | 2300kg | 2400kg |
We choose the best domestic delivery and handle goods carefully, using necessary protections to keep the machines away from unexpected damages. We ensure that clients will get their satisfying machines.
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem

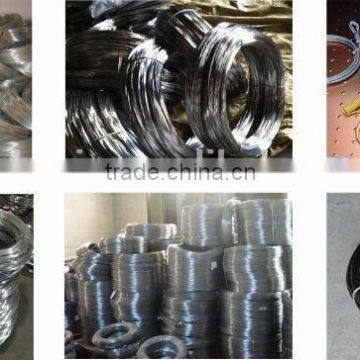

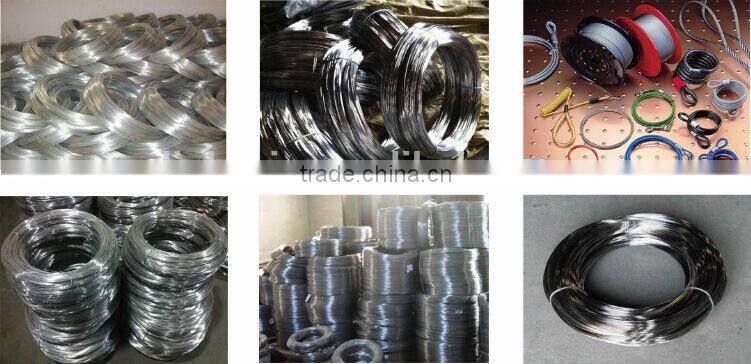

All the products of our company have already been widely used in metal products area.
Our company is located in Humen, Dongguan, Guangdong province.
In wire drawing and annealing area, based on practical experience, modern technical, united management, perfect service after sale and good reputation, especially founded public’s praise and brand image in stainless steel drawing industry.
The company focuses on developing and designing wire drawing and annealing equipment. Improving the quality of the final products. Novel design and complete functions can offer various type on basis of wire Dia. for choice to meet customers’ needs and create more convenience and economic benefit.
In wire drawing manufacturer technique, our company break the traditional opinion, use corresponding machine to produce different martial wire instead of one machine drawing various material wire, achieve one martial, one dedicated machine. The drawing technique changed also depend on wire material. Meanwhile, in the wire annealing to increase efficient, combine the wire material requirement, formulate the new technique differ from previous to make the energy substantial drop. Our wire drawing machines and accessories sells to the Far East Asia, Middle East, Africa, India and Egypt.
At 2012 SHANGHAI WIRE & TUBE EXHIBITION
