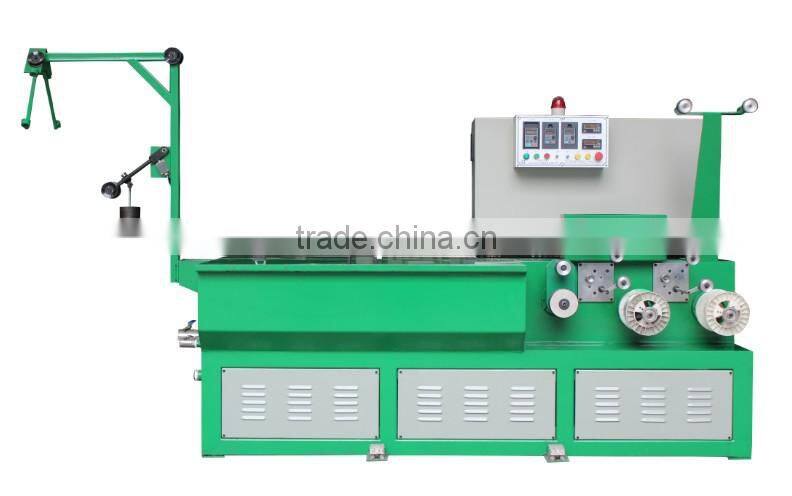

Help CenterInlet:0.7mm Outlet:0.13mm 20 Dies Stainless Steel Wire Drawing Machine/stainless Steel Scourer Making Machine
Related Products
-
Factory Price Immerse Steel Wire Drawing MachineUS$ 10,000 - 1,000,000MOQ: 1 Set -
Copper Wire 0.5mm to 2.0mm EDM Wire Drawing MachineUS$ 10,000 - 1,000,000MOQ: 1 Set
-
High Quality Pulley Type Wire Drawing Machine for Steel WireUS$ 10,000 - 1,000,000MOQ: 1 Set
-
Mini Gold Color Wire Drawing MachineUS$ 10,000 - 1,000,000MOQ: 1 Set
-
Inlet:0.4mm-0.2mm Outlet:0.1mm-0.05mm Stainless Steel Wire Drawing MachineUS$ 10,000 - 1,000,000MOQ: 1 Set

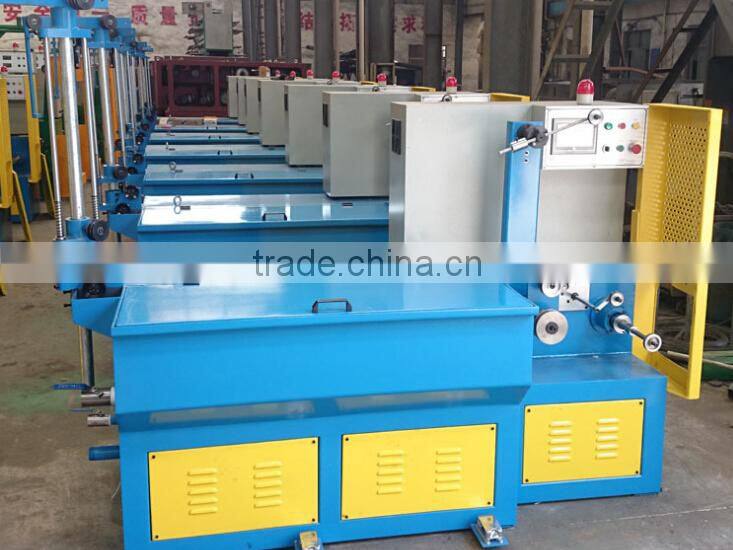

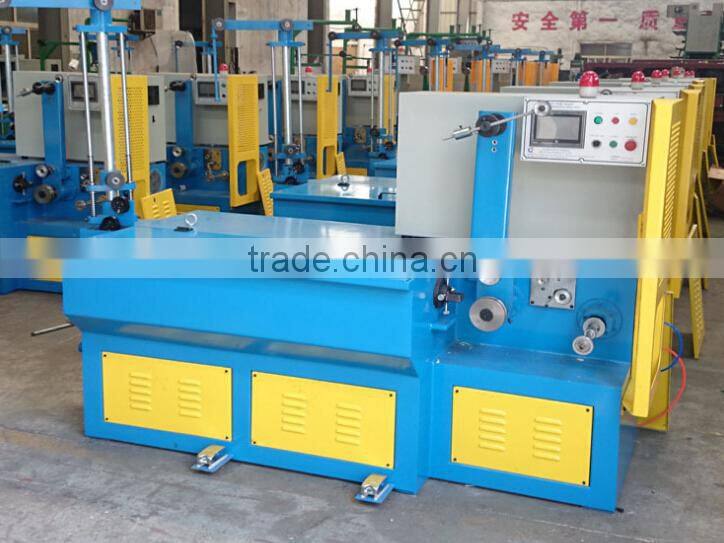

20D Immerse type of Scourer Wire Drawing Machine /Scourer making machine
Main technical parameter
Machine Type |
Dual wire drawing machine |
Wire Inlet dia |
0.7 |
Wire Outlet dia |
0.13 |
Max modules |
20 |
Drawing method |
Horizontal tour-pulley type |
Control system |
PLC Frequency conversion |
Maximum line speed |
720m/min |
Body structure |
Annealed treatment ot weld steel plate |
Step pulley |
vacuum annealing treatment of alloy steel |
Max.dia.of step pulley |
210 |
Take-up spool spel |
200 |
Traversing |
Adjustable winding method ot stepper motor |
Main engine power |
2.2KW-4P |
Take-up engine power |
1.1KW-4P |
Traverse power |
13W |
Transmission method |
Synchronous wheel.synchronous belt |
Drawing lubricating method |
modules step pulley by full immersion |
Shaft Sealing method |
Mechanical seal |
Braking method |
5Kg Electromagnetic brake |
Available powe |
380V 50Hz/75Hz |
Outline Dimension(mm) |
2300X850X2000 |
Weight(kg) |
1100Kg |
Details
We choose the best domestic delivery and handle goods carefully, using necessary protections to keep the machines away from unexpected damages. We ensure that clients will get their satisfying machines.
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
All the products of our company have already been widely used in metal products area.
Our company is located in Humen, Dongguan, Guangdong province.
In wire drawing and annealing area, based on practical experience, modern technical, united management, perfect service after sale and good reputation, especially founded public’s praise and brand image in stainless steel drawing industry.
The company focuses on developing and designing wire drawing and annealing equipment. Improving the quality of the final products. Novel design and complete functions can offer various type on basis of wire Dia. for choice to meet customers’ needs and create more convenience and economic benefit.
In wire drawing manufacturer technique, our company break the traditional opinion, use corresponding machine to produce different martial wire instead of one machine drawing various material wire, achieve one martial, one dedicated machine. The drawing technique changed also depend on wire material. Meanwhile, in the wire annealing to increase efficient, combine the wire material requirement, formulate the new technique differ from previous to make the energy substantial drop. Our wire drawing machines and accessories sells to the Far East Asia, Middle East, Africa, India and Egypt.
At 2012 SHANGHAI WIRE & TUBE EXHIBITION
