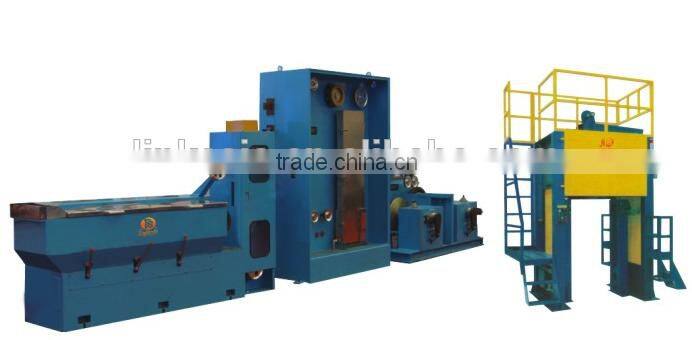

EDM Wire Drawing Machine
With Online Annealer
Main technical parameter
| Model | LS-17 |
| Inlet wire(mm) | 2.6-3.5 |
| Outlet wire(mm) | 0.4-1.5 |
| Speed ( m/min ) | 2000 |
| Capstan Dia.(mm) | 280 |
| No.of Dies | 17 |
| Main motor power | 55 |
| Diameter of barrel | 650 |
| Max.annealing current(A) | 1500 |
| Max.annealing voltage(V) | 64 |
| Annealing power(KVA) | 115 |
| Steam generator power(kw) | 9 |
| Steam volume(kg/h) | 12 |
| Total installed power(kw) | 190 |
| Place of origin | Guangdong,China |
Advantages
| Full immersed lubricant system.transmission by flat belt,low noise,high efficiency. |
| Imported PLC and color touch screen.which is convenient for the operator to set and display the parameter on the touch screen. |
| Abrasion-proof cone pulley and capstan with highly accurate,keep wire verticality and quality,which is good for next process. |
| Full-automatic take-up method.save human resource and increase work efficiency. |
| Automatic protection device,machine auto stops if wire disorder or break. |
We choose the best domestic delivery and handle goods carefully, using necessary protections to keep the machines away from unexpected damages. We ensure that clients will get their satisfying machines.
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
All the products of our company have already been widely used in metal products area.

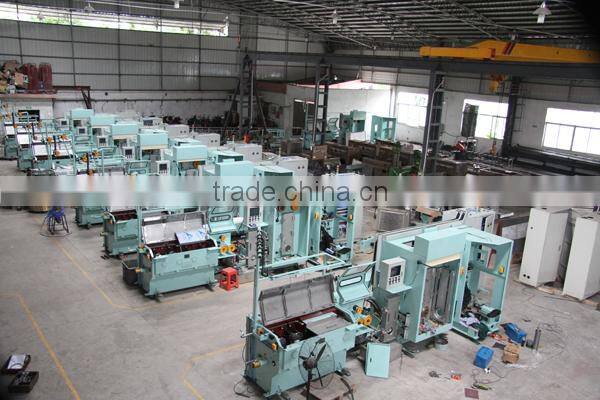

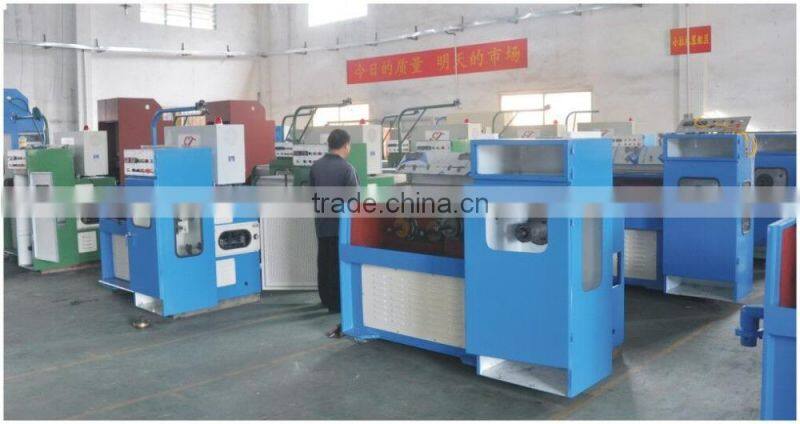

Our company is located in Humen, Dongguan, Guangdong province.
In wire drawing and annealing area, based on practical experience, modern technical, united management, perfect service after sale and good reputation, especially founded public’s praise and brand image in stainless steel drawing industry.
The company focuses on developing and designing wire drawing and annealing equipment. Improving the quality of the final products. Novel design and complete functions can offer various type on basis of wire Dia. for choice to meet customers’ needs and create more convenience and economic benefit.
In wire drawing manufacturer technique, our company break the traditional opinion, use corresponding machine to produce different martial wire instead of one machine drawing various material wire, achieve one martial, one dedicated machine. The drawing technique changed also depend on wire material. Meanwhile, in the wire annealing to increase efficient, combine the wire material requirement, formulate the new technique differ from previous to make the energy substantial drop. Our wire drawing machines and accessories sells to the Far East Asia, Middle East, Africa, India and Egypt.
At 2012 SHANGHAI WIRE & TUBE EXHIBITION
