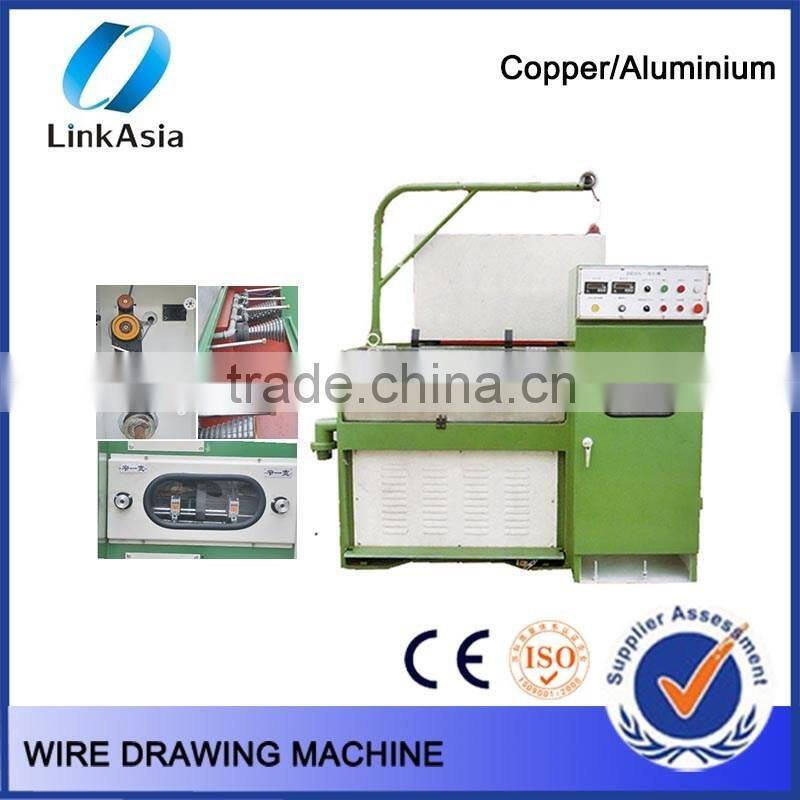

High quality speed control steel wire drawing machine
- 10 Set / Sets per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Inlet Diameter: | 0.15-0.4 | Outlet Diameter: | 0.05-0.12 |
Place of Origin: | Guangdong, China | Brand Name: | LinkAsia | Model Number: | 20DHA |
Voltage: | 380V | Power(W): | 6KAV | Dimension(L*W*H): | 1800L*1350W*1800H |
Weight: | 1600kg | Certification: | ISO9001 | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
High quality speed control steel wire drawing machine
Main technical parameter of steel drawing machine
Product Name | High quality speed control steel wire drawing machine |
Model | 20DHA |
Max. inlet diameter(mm) | 0.15-0.4 |
Outlet diameter range(mm) | 0.05-0.12 |
Max. mechanical speed(m/min) | 2000m/min |
Capstan diameter(mm) | 120 |
Number of dies | 20 |
Mechanical Elongation Rate | 12%+6.5% |
Power(kw) | AC 4kw+2.2kw(driven by inverter) |
Installed power | 6 kw |
Dimension of take-up spool(mm) | 230*165*125*250 |
Volt(V) | 380 |
Frequency(Hz) | 50 |
Traverse method | sychnorous motor |
Lubrication type | spray type |
Brake method | magnetic brake |
Machine dimension | 1800L*1350W*1800H |
Machine weight | 1600kg |

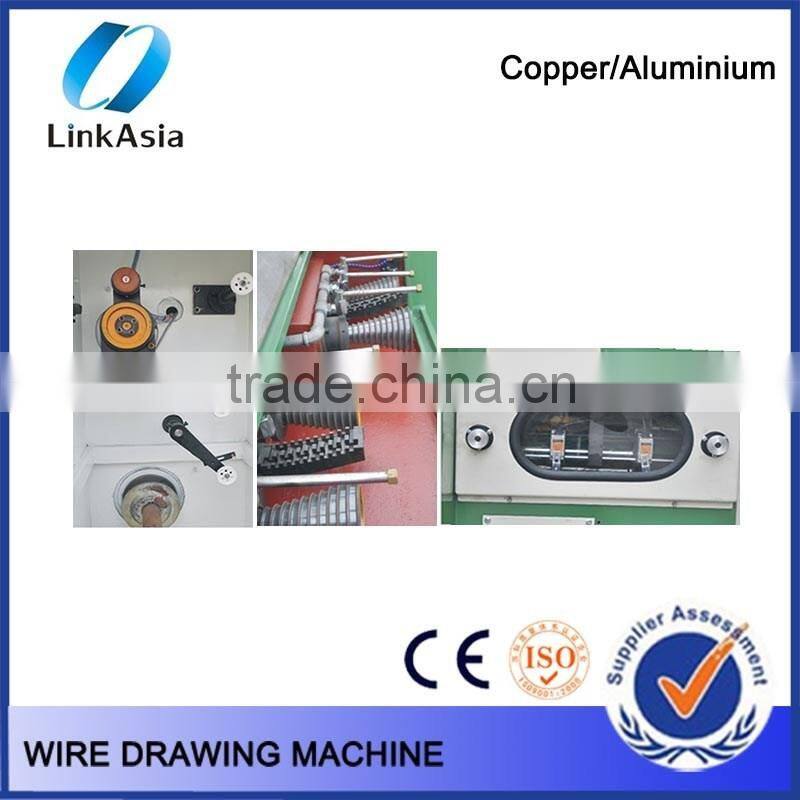

Product show of steel drawing machine
Similar steel drawing machine you may like
We choose the best domestic delivery and handle goods carefully, using necessary protections to keep the machines away from unexpected damages. We ensure that clients will get their satisfying machines.
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
All the products of our company have already been widely used in metal products area
Our company is located in Humen, Dongguan, Guangdong province.In wire drawing and annealing area, based on practical experience, modern technical, united management, perfect service after sale and good reputation, especially founded public’s praise and brand image in stainless steel drawing industry.
The company focuses on developing and designing wire drawing and annealing equipment. Improving the quality of the final products. Novel design and complete functions can offer various type on basis of wire Dia. for choice to meet customers’ needs and create more convenience and economic benefit.
In wire drawing manufacturer technique, our company break the traditional opinion, use corresponding machine to produce different martial wire instead of one machine drawing various material wire, achieve one martial, one dedicated machine. The drawing technique changed also depend on wire material. Meanwhile, in the wire annealing to increase efficient, combine the wire material requirement, formulate the new technique differ from previous to make the energy substantial drop. Our wire drawing machines and accessories sells to the Far East Asia, Middle East, Africa, India and Egypt.
2012 SHANGHAI WIRE & TUBE EXHIBITION
Welcome to contact us
Link Asia (China) Group of Industries CO.,LTD
Address:Unit 1016,Block 1,Yizhou Business Center,Liansheng Zhong Rd,Humen Town,Dongguan Province,China
Attn:Ella Li
Tel:8613725830159 86 0769-85180450
Skype:haiyingand
