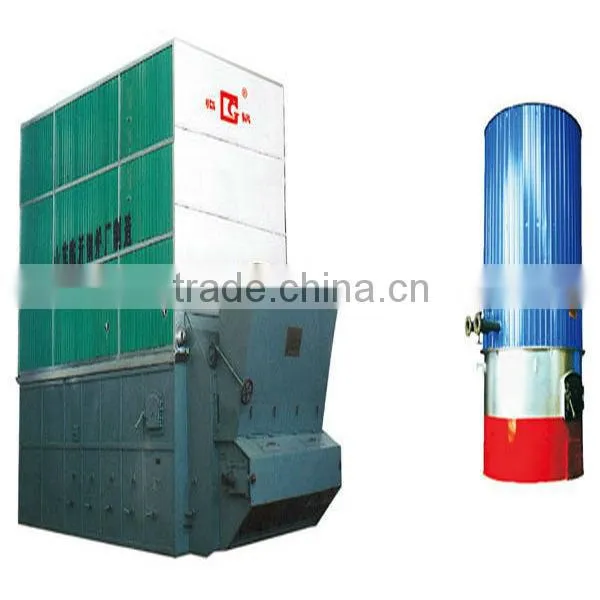

3.0M Kcal/h Thermal Oil Boiler
US$ 85,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Force circulation
Usage:
Industrial
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO/SHANGHAI/TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
82% Efficiency Coal Fired Steam BoilerUS$ 120,000 - 150,000MOQ: 1 Set -
20t/h Double Drum Steam BoilerUS$ 250,000 - 300,000MOQ: 1 Set
-
Cogeneration Steam BoilerUS$ 200,000 - 2,000,000MOQ: 1 Set
-
Packaged Double Drum Steam BoilerUS$ 250,000 - 280,000MOQ: 1 Set
-
90% Efficiency Thermal Oil BoilerUS$ 10,000 - 30,000MOQ: 1 Set
Condition
New
Type
Other, Force circulation
Usage
Industrial
Structure
Water Tube
Pressure
Other, Low Pressure, 1.0MPa
Style
Horizontal
Fuel
Other, Coal-fired, Gas/Oil/Coal/Biomass
Place of Origin
Shandong, China
Brand Name
SW
Model Number
YLW-3.5
Output
Other, Hot oil
Dimension(L*W*H)
6900*2720*5280mm
Weight
32680KG
Certification
GB/CE
After-sales Service Provided
Engineers available to service machinery overseas
Organic Heat Transfer Material Heaters
Product Features
1.Higher working temperature shall be obtained under lower operating pressure.
2.Steady heating and accurate temperature adjustment shall be performed
3.Under each grade loading,the thermal efficiency shall remain in a high level
4.The boiler shall save power,water,as well as investment
Main Parameter List
| Boiler type | YLW3.5 | YLW4.2 | YLW5.0 | YLW6.0 | YLW7.0 | YLW9.5 | YLW12 | YLW14 | ||
| Capacity(104Kcal) | 300 | 360 | 420 | 500 | 600 | 800 | 1000 | 1200 | ||
| Thermal efficiency(%) | 83 | 83 | 83 | 83 | 83 | 83 | 83 | 83 | ||
| Working pressure(MPa) | 1 | 1 | 1 | 1 | 0.7 | 0.7 | 1 | 1 | ||
| Coal consumption(kg/h) | 791 | 943 | 1128 | 1323 | 1546 | 2008 | 2470 | 2932 | ||
| Heat surface area(m2) | 180 | 255 | 291 | 413.5 | 479 | 582.4 | 735.4 | 799.4 | ||
| Working temperature(°c) | 320 | 320 | 300 | 300 | 300 | 300 | 300 | 300 | ||
| Oil capacity in furnace(m3) | 2.71 | 2.92 | 3.01 | 3.5 | 4.1 | 5.4 | 6.8 | 8.3 | ||
| Circulate oil volume(m3) | 200 | 258 | 300 | 350 | 400 | 400 | 400 | 400 | ||
| Size(mm) | 6900*2720*5280 | 6600*3200*5750 | 7300*3200*5750 | 7840*3400*6340 | 8720*3400*5400 | 9340*3780*5870 | 10665*3560*6050 | 10865*4120*6600 | ||
| Total power(KW) | 92.5 | 119.5 | 138 | 142.8 | 153.9 | 157.4 | 188.9 | 225.9 | ||
| Connect pipe(MM) | 150 | 200 | 200 | 250 | 250 | 250 | 250 | 300 | ||
| Total weight(Kg) | 32680 | 43410 | 46180 | 60023 | 63360 | 78720 | 81000 | 113063 |
