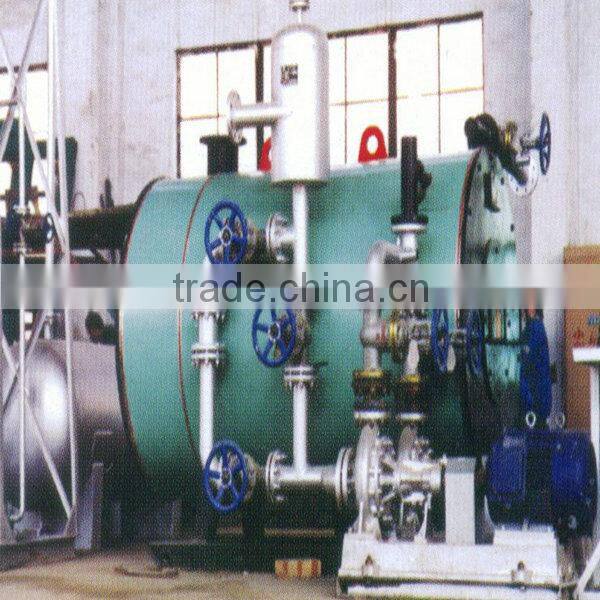

Coal Fired Hot Water Boiler

Name: Coal Fired Hot Water Boiler
Brand: HY
Availability: InStock

FOB Price

US$ 60,000 - 120,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Natural Circulation
Usage	Other, Industrial, Industry/Power station	Structure	Water Tube
Pressure	Other, Middle Pressure	Style	Other, Horizontal, Packaged/Assembly
Fuel	Other, Coal-fired, Coal /Biomass	Place of Origin	Shandong, China
Brand Name	HY	Model Number	SZL-10.5-1.0/115/70
Output	Hot Water	Dimension(LWH)	990034003530mm
Weight	36T	Certification	ASME
After-sales Service Provided	Engineers available to service machinery overseas

Hot Water Boiler

The boiler shall adopt double drum, monolayer arrangement, compact structure, as well as large heating surfaces which are more 10% than those of same kinds of products, featuring the following advantages such as sufficient output, safe and reliable operation ,short construction period, and low installation cost ect.
The design of cyclone reburning chamber in furnace resulted in the decrease of dust contained in the flue gas .At the same time, incandescent carbon black particles shall burn further, enhancing the boiler thermal efficiency, and decreasing gas blackness ,as a result, the gas emission concentration shall meet the requirements of grade A environmental protection area.
The grate shall employ the technology patent of small roller structure, boundary grate and so on ,improving the operation reliability of the boiler.
Since the adoption of technology patent for the sealed wind chamber and bilateral grate air register, and the application of machining cone seal structure to grate adjusting air equipment, the sensitivity of the grate shall be improved.
The boiler was awarded the following titles: first class products of mechanical and electrical department, excellent energy-saving products promoted by state, excellent energy-saving products of Shandong province.
According to the customers’ requirements, the layering burn device and other energy saving equipments,implementedinstate, shall be matched.

Parameter List

Boiler type	SZL4.2-0.7/95/70-AII	SZL5.6-0.7/95/70-AII	SZL7.0-1.0/115/70-AII	SZL10.5-1.0/115/70-AII	SZL5.6-0.7/95/70-AII(Q)	SZL14-1.0/115/70-AII	SZL7(0)-1.0/115/70-1.25-AII
Rated capacity(MW)	4.2	5.6	7.0	10.5	5.6	14	7(10)
Rated effuent temperature(°c)	95(60)	95	115	115	95	115	115(94)
Rated return water temperature(°c)	70(45)	70	70	70	70	70	70
Combusion mode	Chain grate	Chain grate	Chain grate	Chain grate	Chain grate	Chian grate	Chain grate
Applicable coal	AII AIII	AII AIII	AII AIII	AII AIII	AII AIII Gas	AII AIII	AII AIII
Grate area(m2)	7.23	9.9	11.99	17.38	9.9	21.33	11.99
Heat surface of boiler(m2)	157.6	240.2	243.2	324	240.2	440	232.3
Heated surface of boiler tail(m2)			174.4	236		233	52.7
Coal consumption(kg/h)	896.6(943)	1186.6	1507.6	2258	1186	2938	1407(1507.3)
Exhaust gas temperature(°c)	175(161)	175	170	170	175	170	195(170)
Dust emission concentration(mg/Nm3)	<80	<80	<80	<80	<80	<80	<80
Thermal effciency(%)	79.2	79.59	82.17	82.3	79.59	82.5	78.28
Transfer size(LWH)mm	537029703550	672034003540	880032302600	990034003530	672034003540	1070035503400	757032303540
Weight(T)	36	26.4	30.51	36	26.4	41	33.3
Installed size(LWH)mm	837053303860	900050005600	1132036005400	1300045005800	900050005600	1400047307820	1180042505750
Rated working pressure(MPa)	0.7	0.7	1	1	0.7	1	1(1.25)

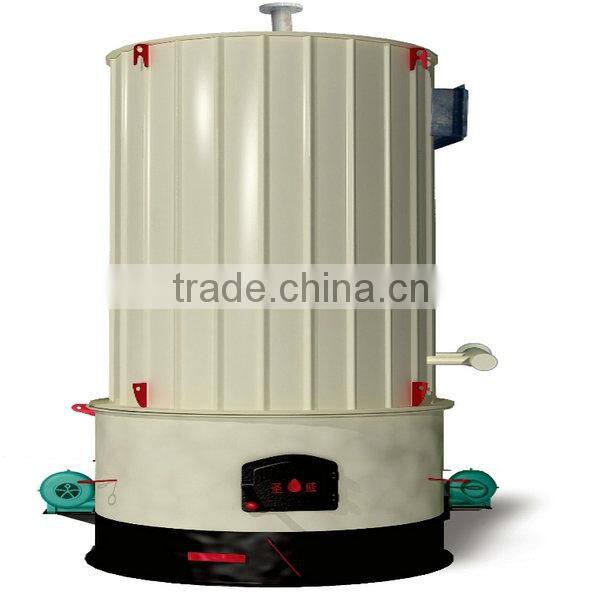

Other Products Photos
