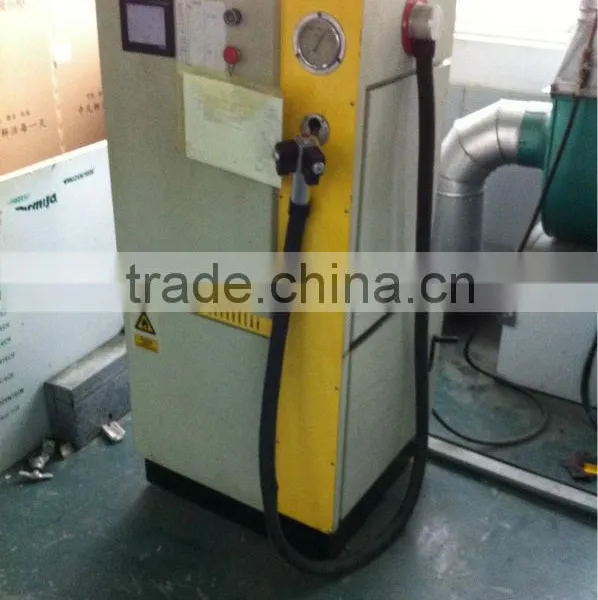

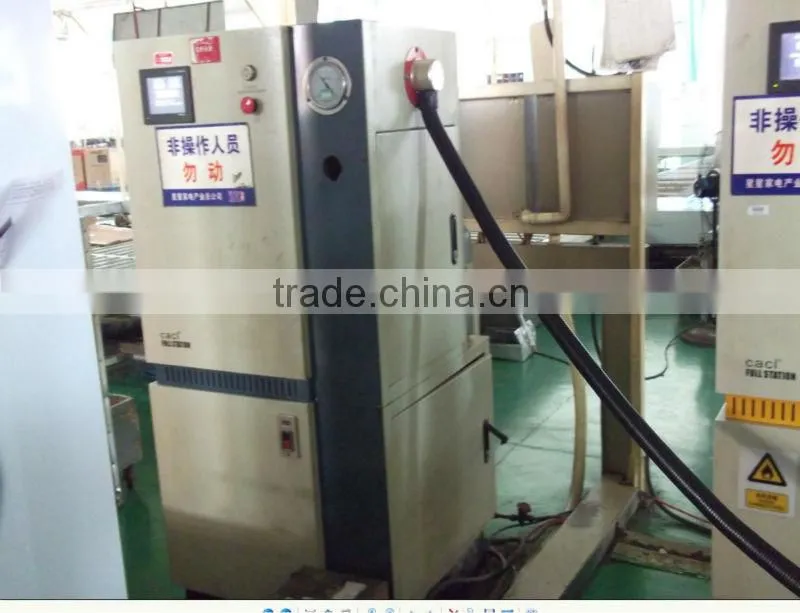

NC refrigerant automatic charging machine(refrigerant perfusion)
Main feature:
CNC technology
Precision flow sensor measurement for
Attribute 1/10 g resolution
Full color of touch screen man-machine interface
Bar code identification, 100 preset channel
Pneumatic reversing high efficiency booster pump (R600a)
24 hours leakage safety monitoring (R600a)
Wind pressure monitoring
The low pressure operation, higher safety(R600a)
System of centralized control
The design of explosion protection system(R600a)
Technical parameters
Item |
CA-788C-600a-N |
S40/S45 |
Power supply |
380V/220V 50Hz |
380V/220V 50Hz |
Power |
1KW |
1KW |
Refrigerant |
R600a |
R134a R407c R404A R410A R22 |
Working pressure |
1.2-2MPa |
1.2-2MPa |
Ambient temperature |
0-45 |
0-45 |
Resolution ratio |
0.1g |
1g |
Charging range |
5-99999g |
5-999g/10-4999g |
Charging speed |
15g/S |
60g/S(high-speed 120g/S) |
Charging repetitive error<100g |
<+/-0.5g |
<+/-0.5g |
Charging repetitive error>100g |
<+/-1% |
<+/-1% |
Vaccum |
<10Pa |
<10Pa |
Vaccum rate |
4L/S |
4L/S |
Quick coupling |
1/4"- 3/8" |
1/4"- 3/8" |
Filler line length |
3m |
3m |
Programmable channels |
100 |
100 |
compressed air supply |
0.5-0.7MPa |
0.5-0.7MPa |
Weight |
210Kg |
200Kg |
Siza |
780×760×1650mm |
