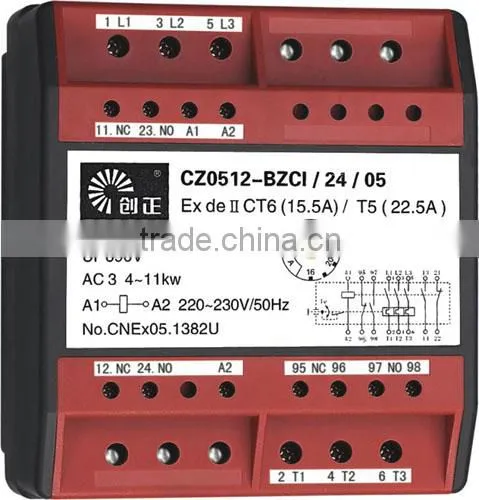

Explosion Proof Magnetic Starter

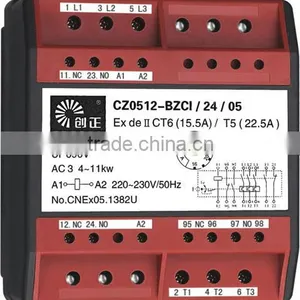

Explosion Proof Magnetic Starter thumbnail-1
Explosion Proof Magnetic Starter photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CZ
Model Number:
0512
Contact Supplier Request Quote Chat Now
CZ Explosion-Proof Electric Appliances Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name CZ
Model Number 0512
Max. Current 40A
Max. Voltage 690V

Specifications

Flameproof magnetic starter

Detailed Product Description





1)TUV Certified
2)with domestic conformity certificate of explosion-proof



Technical Data:

  • Ex mark:Ex deIIC T6(0.1~16A)

       Ex deIIC T5(22.5A)

  • Intended use:Zone 1&2 and zone 21&22
  • Rated voltage: 380~400V
  • Rated current:to 22.5A
  • Setting range of over load trip:01~24A
  • On-off capacity:AC3/4~11kW
  • Coil voltage:AC24C,36V,48V,110V,220~230V,380V~400V(50Hz)
  • Capacity of auxiliary contact:AC13 3A/250V AC15 2A/250
  • Cross section of terminal:major contact 2×10mm2
  • Auxiliary contact 2×2.5mm2
  • Material: Unsaturated resin
  • Weight:2.5kg

Specifications:

Rated current of AC Contactor

Setting range of Thermorelay(A)

Order No.

BZCI Flameproof magnetic starter module

(AC Contactor+Thermorelay)



22.5A

0.1-0.16

0.16-0.24

0.24-0.4

0.4-0.6

0.6-1

1-1.6

1.6-2.4

2.4-4

4-6

6-10

10-16

16-24

BZCI/0.16/Code

BZCI/0.24/Code

BZCI/0.4/Code

BZCI/0.6/Code

BZCI/1/Code

BZCI/1.6/Code

BZCI/2.4/Code

BZCI/4/Code

BZCI/6/Code

BZCI/10/Code

BZCI/16/Code

BZCI/24/Code



Code of the coil service voltage:

01-24V

02-36V

03-48V

04-110V

05-220~230V

06-380V~400V
