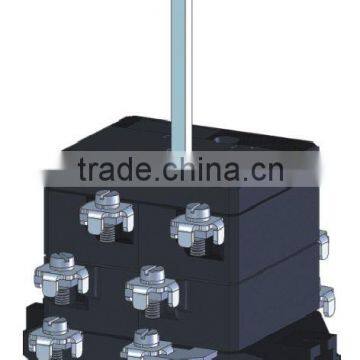

Help CenterFlameproof Isolation Switch Module
US$ 800 - 4,400
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CZ
Model Number:
CZ0513
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Increased Safety Current Transformer ModuleUS$ 200 - 201MOQ: 1 Piece -
Sockets and PlugsUS$ 200 - 2,100MOQ: 1 Piece
-
Explosion-proof Socket and PlugNegotiableMOQ: 1 Set
-
CZ Ex ed Full Plastic Explosion-proof Panel Type SocketUS$ 310 - 340MOQ: 1 Set
-
CZ Ex ed Full Plastic Explosion-proof Wall Type SocketUS$ 353 - 385MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
CZ
Model Number
CZ0513
Max. Current
180A
Max. Voltage
690V
Specifications
1)According to the following standards for safetyGB3836.1-2000/GB3836.2-2000/GB3836.3-2000
2)Material:unsaturated resin
Technical Data:
- Ex mark:Ex deIICT5/T6
- Intended use: zone 1&2, zone 21 &22
- On-off capacity of switch:
AC3 |
230V |
400V |
500V |
690V |
25A |
25A |
20A |
16A |
|
40A |
40A |
40A |
32A |
|
80A |
80A |
80A |
63A |
|
180A |
180A |
150A |
125A |
- Material of enclosure: Unsaturated resin
Specification:
Method |
Rated Current |
Cross section of terminal |
Weight |
Order No. |
3Poles |
25A |
2×6mm2 |
0.55kg |
D/R 25/3 |
40A |
2×16mm2 |
1.0kg |
D/R 40/3 |
|
80A |
2×35mm2 |
3.30kg |
D/R 80/3 |
|
180A |
2×50~120mm2 |
6.0kg |
D/R 180/3 |
|
4Poles |
25A |
2×6mm2 |
0.58kg |
D/R 25/4 |
40A |
2×16mm2 |
1.10kg |
D/R 40/4 |
|
80A |
2×35mm2 |
3.5kg |
D/R 80/4 |
|
180A |
2×50~120mm2 |
6.5kg |
D/R 180/4 |
|
|
Note: D:Standard type(Black handle) R:Emergency stop type (Red/Yellow handle) |
||||
