IECEx and ATEX Certified Explosion-proof GRP 25A 40A 80A 180A Safety Switch for Zone 1 2 21 22

IECEx and ATEX Certified Explosion-proof GRP 25A 40A 80A 180A Safety Switch for Zone 1 2 21 22

Descriptions:

The enclosure of this products is made of anti-static and impact-resistant glass fibre reinforced polyester. It is able to be used in inverse industrial areas. Concav-convex joint is designed between the cover and body to mount an air-foam silicone bar, IP65 can be secured.

It houses Ex de flame-proof switch module. It is suitable for isolation the power in the circuit which frequency is AC50/60Hz, rated voltage is 230-690V, and rated current of 16-180A for motor maintenance, cleaning and overhauling. This is the most safe way to get the motor not driving during maintenance, cleaning and overhauling.

Advantages:

• Interlock devise inside, the switch couldn't be opened when locked.
• Padlock is available on switch handle
• Black handle is for normal usage, Red/Yellow handle is optional for emergency.
• Inside switch module is U certified.

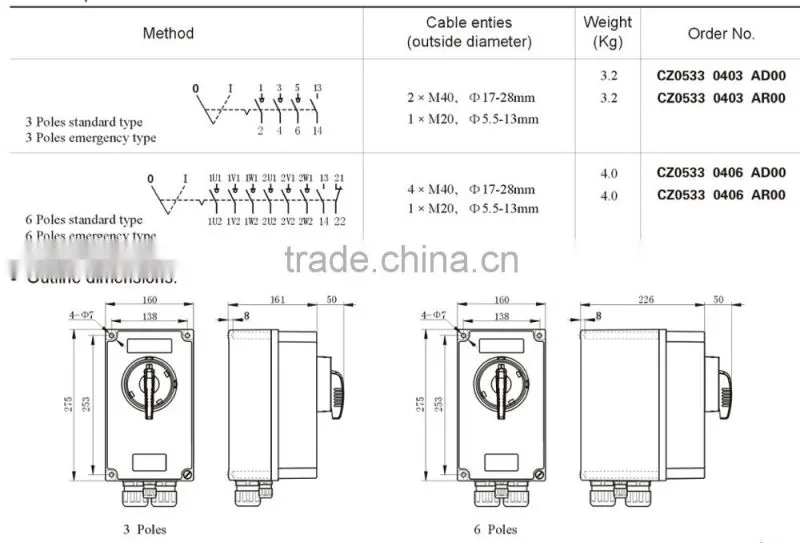

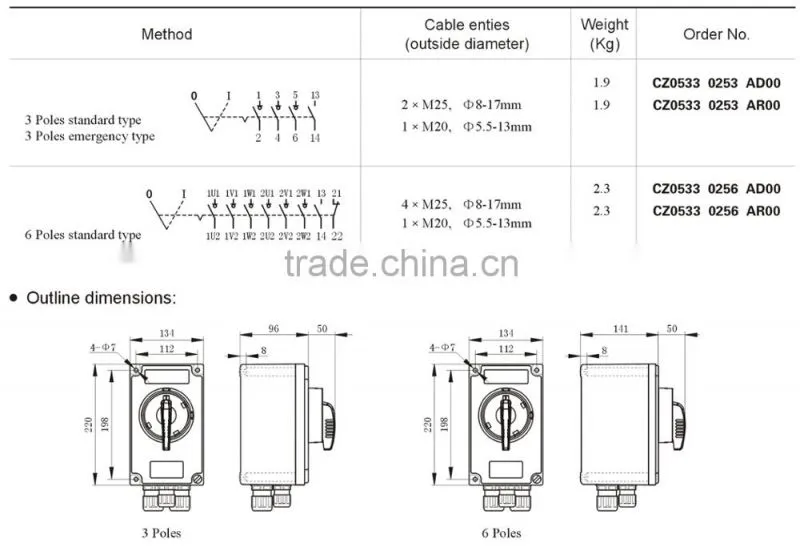

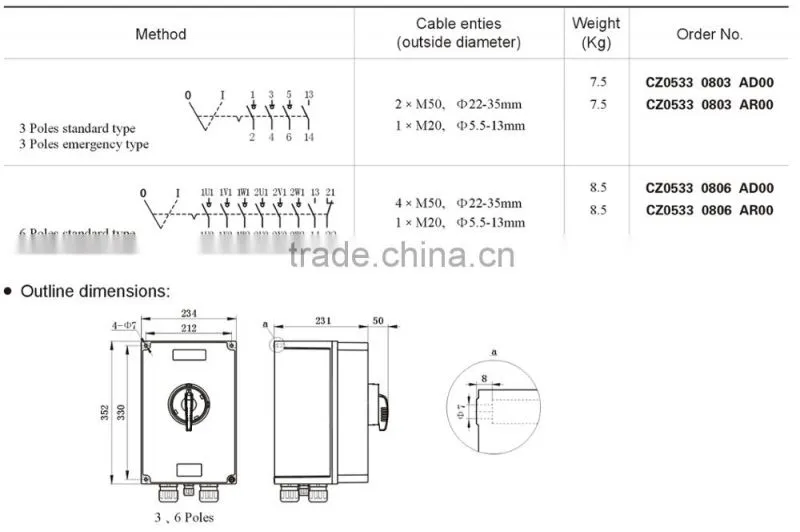

Order Specifications:

16/25A

32/40A

63/80A

125/180A
