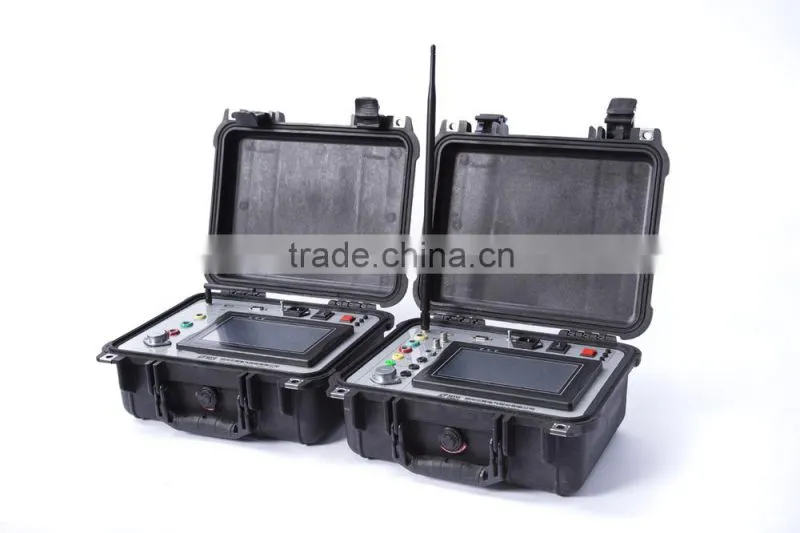

MT3000D Multifunctional Portable Electric Meter Test Equipment
- 15 Set / Sets per Month
- SHANGHAI/SHENZHEN/NINGBO/QINGDAO
- T/T
Product Details
Place of Origin: | Henan, China | Brand Name: | SMS | Model Number: | MT3000D |
Power: | Electronic | Usage: | Other, onsite meter calibration |
Product Description
Specifications
1.SMS hot product2.Fully surport meter test onsite
3.Certification:ISO9001
fessional afer-sales service
ADVANTAGE:
18 years of professional experience
low price and excellent quality
stantard of ISO9001 ,IEC
excellent after-sales service
highly customizable
Onsite Multifunctional Meter Tester
Main performance:
1. Newly designed outer case with small size and little weight.
2. Built operation system windows CE. NET. Window operating interface with convenient application.
3. 640x480TFT true color and high precision screen with the wonderful display interface.
4. Built-in large capacity FLASH. The intelligent meter is synchronous loading.
5. DSP high precision technology, multi-electirc parameters measurement synchronously with higher precision.
6. Adopts the latest ARM high performance CPU as the main control unit, the operation speed is faster.
7. The main and subsidiary meter calibration P3/P4 automatic wire checking, constant checking Waveform and the harmonics analysis, demand quantity burden test.
8. Standard RS232 USB interface, the external device such as the bar code, U disk and the portable PC are optional.
9. The GPS and GPRS modular are optional, which can realize the real time data transmission and the GIS information processing.
10. Equipped with wireless model, communication with PDA.
Index
Voltage measuring range: | 30--400V (3×60,3×100,3×200,3×400V) | |
Current measuring range: | Direct measurement | 3×1A,3×5A,3×20A(as per requirement) |
Clamp measurement | 5A,500A Optional:100A,200A,1000A | |
Accuracy: | Voltage | 0.1% |
current | 0.1% | |
power | 0.05% | |
Reactive | 0.1% | |
Frequency | ±0.01Hz | |
Phase angle | ±0.05° Iin>20%In | |
±1° 10%In<Iin<20%In | ||
Working voltage range | AC80V400V | |
Power consumption | <15VA | |
Working temperature | -10°C--+40°C (special -25°C--+70°C) | |
Relative humidity: | 30%--80% no condensation | |
Dimension | 340*295*152mm | |
weight | <4KG |
PRODUCTS SHOW
1. What is the advantages of your products?
Thanks for your inquiry. Our products' advantages is that all products achieve the standard of IEC and ANSI.
And our goods have been exported to many countries in the world, such as Korea, India, Russion, Pakistan, Vietnam ans so on. The quality is excellent that it wins lot reputation for us.
2. What is the shelf life for your products?
Thanks for your consideration. The shelf life of our products is 3 years. (Our company is responsible for the repairing and maintaining free of charge)
3. What terms of trade your company accept?
Thanks for your consideration. Our company accepts T/T, L/C, Western Union. Thanks for your understanding.
1. We can produce the single phase meter test bench/single phase energy meter instrument/single phase electricity meter test equipment according to client's requirement.
2. Good after-sale service, and good quality.
3. All our products can test all items such as IEC and ANSI
Packed in Plywood case
Deliver the goods within one month after receiving the prepayment
