Specifications
1.Online portable meter calibration2. Wrong connection judgement
3.hot product of SMS
4.Certificate: ISO9001 . IEC
18 years of professional experience
low price and excellent quality
stantard of ISO9001 ,IEC
excellent after-sales service
produce as your requirement

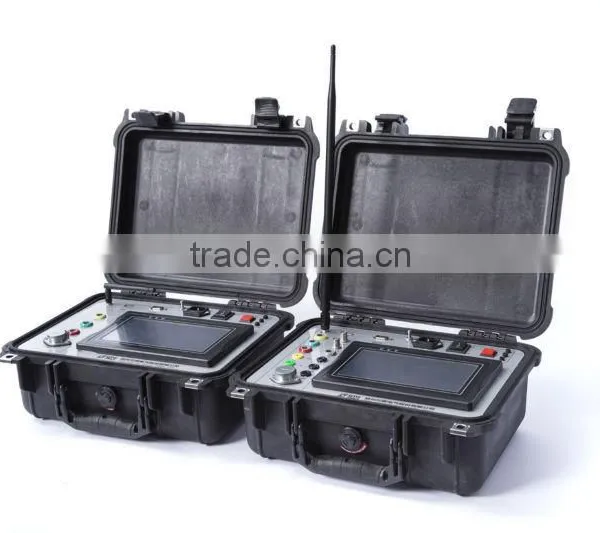

MT3000D(F) Multifunctional Onsite Energy Meter Calibrator
Main features:
1) Newly designed outer case with small size and little weight
2) Built-in operating system Windows CE.NET, window operating
interface with convenient application
3) Color LCD with high precision with wonderful display interface
4) Built-in large capacity flash, the intelligent meter is synchronous
loading
5) DSP high precision technology, multi-electric parameters measurement
synchronously with higher precision
6) The main and subsidiary meter calibration, P3 / P4 automatic wire
checking, constant checking, waveform and the harmonics analysis,
demand quantity, burden test
7) Standard RS232 and USB and PS2 interface. The external device such
as the bar code, U disk and the portable PC are optional
8) Bluetooth modular which can communicate between the Bluetooth and
the PDA wireless communication are optional
9) The GPS and GPRS modular are optional, which can realize the real time
data transmission and the GIS information processing
Technical index
1) Accuracy class: 0.05, 0.1
2) Working voltage: AC 80 - 400V, voltage measurement: 30 - 400V
3) Current measurement directly: 0.01A - 20A with clamp: 5A, 100A
(200A, 500A, 1,000A are optional)
4) Measurement accuracy for voltage, current and the power: 0.05%
5) Measurement accuracy for phase: ±0.05°
6) Measurement accuracy for frequency: 0.001Hz
7) Power consumption: 15VA
8) Working conditions: temperature: -25 - +55°C, humidity: 30 - 80RH
2. Good after-sale service, and good quality.
3. All our products can test all items such as IEC and ANSI
1. What is the advantages of your products?
Thanks for your inquiry. Our products' advantages is that all products achieve the standard of IEC and ANSI.
And our goods have been exported to many countries in the world, such as Korea, India, Russion, Pakistan, Vietnam ans so on. The quality is excellent that it wins lot reputation for us.
2. What is the shelf life for your products?
Thanks for your consideration. The shelf life of our products is 3 years. (Our company is responsible for the repairing and maintaining free of charge)
3. What terms of trade your company accept?
Thanks for your consideration. Our company accepts T/T, L/C, Western Union. Thanks for your understanding.
Packed in Plywood case
Deliver the goods within one month after receiving the prepayment
