1,0.66kv low voltage current transformer technical parameter:
current ratio:50-3000/5A accuracy class:0.5s/0.25s
rated load :5/2.5VA ,5/3.75VA ,10/3.75VA,10/2.5VA
2,10-35KV current transformer technical parameters:
current ratio:20-3000/5A acruracy class :0.2S/10P15,0.2S/10P10,0.2S/0.5/10P15 and so on
rated load :10/15VA ,10/15/15VA, 15/15/30VA and so on

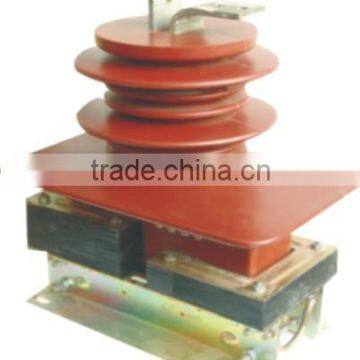

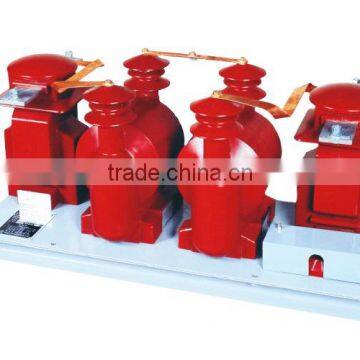

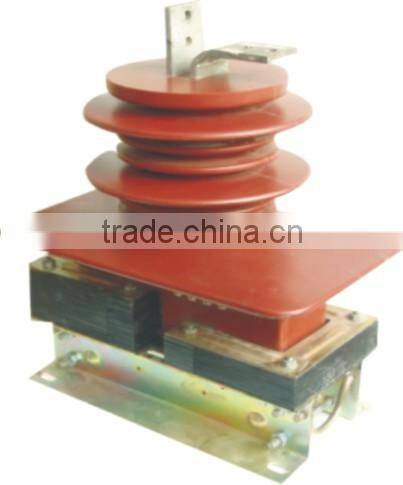

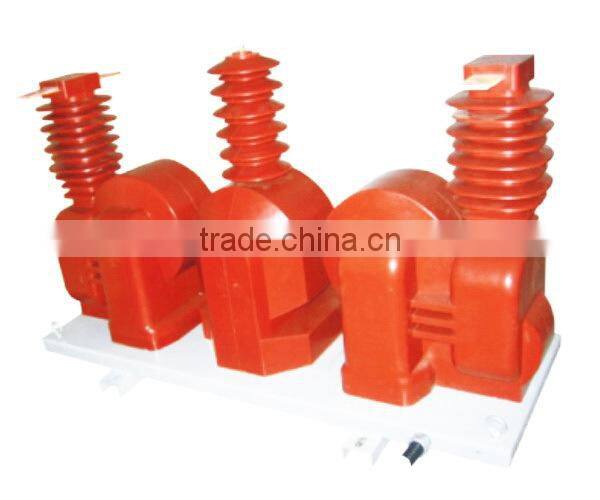

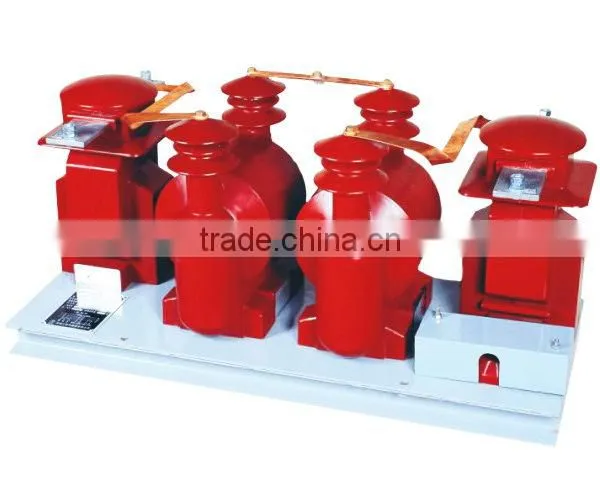

10-35 KV current transformer adopts the fully enclosed epoxy resin casting structure ,casting the one and two times winding together ,having the chaaraterics of good insulation and moisture performance ,applying to the electricity system which rated voltage is below 35KV ,and rated power is 50 hz or 60hz indoor or outdoor to protect the current ,electricity measurement and relay .
transformer coil and iron core adopts the epoxy resin with good insulating property as the insulating medium ,using vacuum casting mold in one -time ,having the characteristic of high insulating performance ,long using life.
