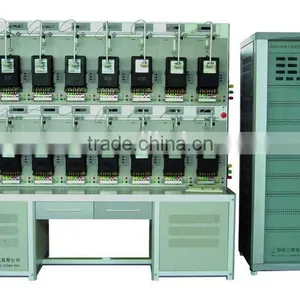

Help CenterDZ-603 Three Phase Power Meter Test Equipment With Isolated Current Transformer
Related Products
-
DZ603-12 Three Phase Electric Meter Test BenchUS$ 10,000 - 25,000MOQ: 1 Set -
DZ601-12 Single Phase Meter Test DeviceNegotiableMOQ: 1 Set
-
3 Meter Positions Three Phase Energy Meter Test BenchesUS$ 5,000 - 50,000MOQ: 1 Set
-
16 Meter Positions Three Phase Meters Test BenchesUS$ 5,000 - 30,000MOQ: 1 Set
-
60 Meter Positions Single Phase Energy Meter Test DevicesNegotiableMOQ: 1 Set
ADVANTAGE:
19 years of professional experience
low price and excellent quality
stantard of ISO9001 ,IEC
excellent after-sales service
highly customizable

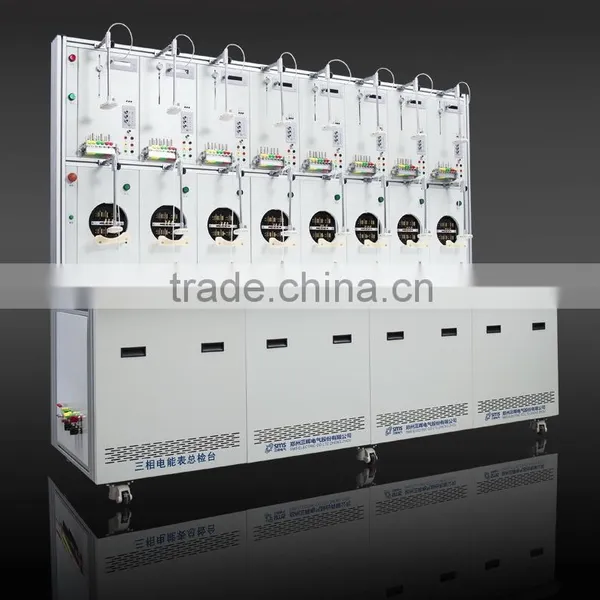

DZ603-16 Three-Phase Close-Link Power Meter Test Equipment
Main features:
1. Equipped with current isolating CT, current of each meter position is isolated
by 1: 1, which makes it possible to test the three-phase closed loop meters without
disconnecting the voltage and current links
2. The tested meters may be same specification with different constants. The meters
such as single phase mechanical, electromechanical and electronic meters can be tested simultaneously
3. Equipped with the high precision reference meter with wide range
4. Randomly set the basic current and the maximum current, no limit to the current range
5. Automatic warning when the voltage output is in short circuit (overload) and the
current output is in open circuit (overload)
6. Automatic capturing rotor mark or carry out start testing and running with no
load test, and automatic judges the testing results
7. Randomly set 2 to 21 harmonics, error curve can be made, value can be calculated
8. Fully automatic meter testing controlled by computer, intelligent data processing
and network data sharing
9. Support Meter bar code reading
10. Randomly setting of reporting table and certificate formats
11. It can be equipped with GPS clock calibrator to check the daily error, time-interval
error, time projection error, the maximum demand; check constant, register
display error and RS485 communication
12. The unit of measuring ambient temperature and relative humidity is optional
13. The unit of measuring the consumption of meter under test is optional

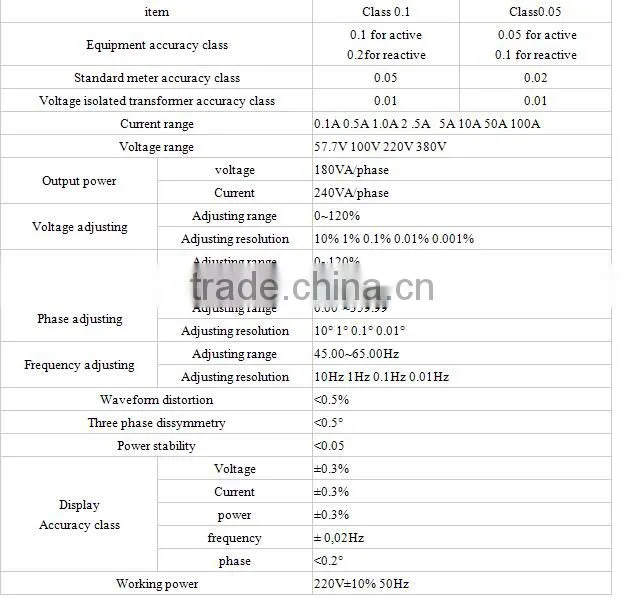

Performance index:
Annotation:we can produce three or single phase energy meter test bench with 3-60 meter positions according to your requirements.
CUSTOMERS FROM THE WORLD:
1. What is the advantages of your products?
Thanks for your inquiry. Our products' advantages is that all products achieve the standard of IEC and ANSI.
And our goods have been exported to many countries in the world, such as Korea, India, Russion, Pakistan, Vietnam ans so on. The quality is excellent that it wins lot reputation for us.
2. What is the shelf life for your products?
Thanks for your consideration. The shelf life of our products is 3 years. (Our company is responsible for the repairing and maintaining free of charge)
3. What terms of trade your company accept?
Thanks for your consideration. Our company accepts T/T, L/C, Western Union. Thanks for your understanding.
1. We can produce the single phase meter test bench/single phase energy meter instrument/single phase electricity meter test equipment according to client's requirement.
2. Good after-sale service, and good quality.
3. All our products can test all items such as IEC and ANSI
Packed in Plywood case
Deliver the goods within one month after receiving the prepayment
