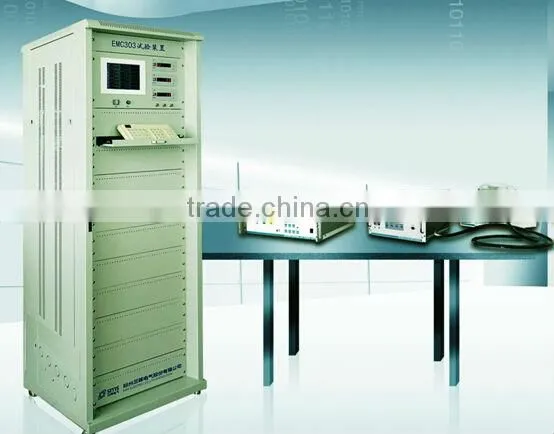

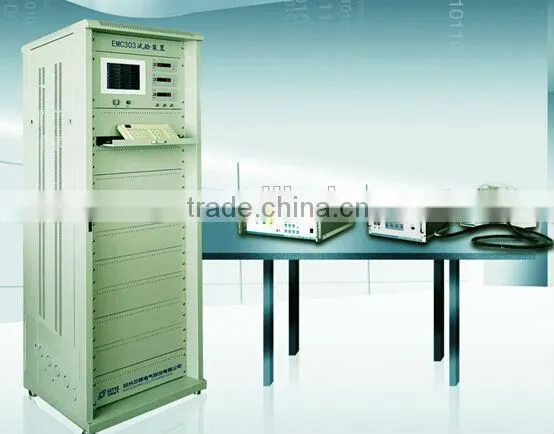

Help CenterEMC3000 Type Three Phase Energy Meter Test Equipment
Related Products
-
DZ601-48 Single Phase Energy Meter Testing Machine(SMS)US$ 20,000 - 25,000MOQ: 1 Set -
Three Phase ELectric Meters Calibration Test Bench With 12 Meters PositionsUS$ 5,000 - 30,000MOQ: 1 Set
-
Dz601-60 Single Phase Energy Meter Test Equipment With 60 Meters PositionsUS$ 20,000 - 25,000MOQ: 1 Set
-
Three Phase Electric or Kwh Meter Test Equipment With 16 Meter Positions(DZ603-16)US$ 20,000 - 25,000MOQ: 1 Set
-
Three Phase Electric Power Meter Test Equipment With 6 Meter Positions (DZ603-6 )US$ 10,000 - 22,000MOQ: 1 Set
Specifications
Test Electromagnetism Compatibility of Energy Meter
l Production Introduction
Energy Meter Electromagnetism Compatibility Tesing Equipment,Specifically develop professional testing equipment for the intelligent energy meter, Terminal power metering instruments etc.electric energy meter electromagnetic immunity test, Matching a variety of electromagnetic compatibility test equipment. According to stipulation of GB/T17215.211-2006 and GB/T17215.322-2008, can complete all kinds of electromagnetic immunity test and EMC test.
l Functions and Features
- 1. Professional design of Internal electrical components, when proceeding the coupling of various testing signal, able to work reliably;
- 2. Can provide three phase programmable voltage and current signals, built-in reference energy meter error calculator, the test can synchronously receive electric energy pulse and calculate the error of electric energy meter;
- 3. Coordinate with a variety of signal generator and the coupler, Can accomplish the test project: Electrostatic Discharge; High frequency electromagnetic field; Fast transient burst; Conduction of the radio-frequency fields; Surge; Attenuation sasser; Radio interference suppression.
- 4. Mobile cabinet design, can measure the voltage, current, power factor, phase, frequency and other parameters in real time.
l Index
- 1. Accuracy class:0.1;
- 2. Output voltage:57.7V,100V,220V,380V,adjusting range :0-120% of each range continually,resolution:0.01%;
- 3. Output current: 0.1A,0.5A,1A,2.5A,5A,10A,20A,50A,adjusting range: 0-120% of each range continually,resolution:0.01%;
- 4. Frequency:45.0-65.0HZ,adjusting continually,resolution:0.1HZ;
- 5. Phase:0~359.9°,adjusting continually,resolution:0.1°;
- 6. Output voltage,current,power stability:0.1%;
- 7. Output power:Voltage:1000VA/Phase,Current:500VA/Phase.
Associated Standards
IEC 61036 Alternating current static watt-hour meters for active energy.
IEC 61268 Alternating current static var-hour meters for reactive energy.
IEC 60521 Alternating current watt-hour meters classes 0.5. 1 and 2.
IEC 60736 Testing equipment for electrical energy meters.
IEC 61358 Acceptance inspection for direct connected alternating current static watt-hour meters for active energy (class 1 and 2).
IEC62053 Electricity metering equipment (A.C.)-Particular requirements
DIN 4 3857 (Part1) Electricity meters in moulded cases without current transformers. Principal Dimensions for single-phase meters
BS 7856 Design of alternating current, watthour meters for active energy (class 1 and 2).
