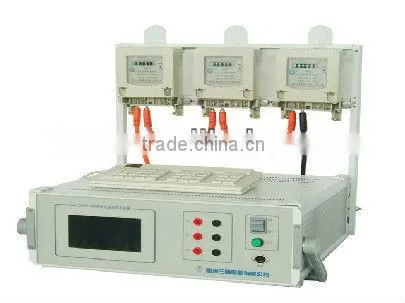

DZ601-3B Portable Single Phase Meter Calibration device

Specifications

1. Light weight and portable
2. LED display optional
3. Certificate: ISO 9001;
4. Accuracy class: 0.05, 0.1;

DZ601-3B Portable Single Phase Meter Calibration Device

Main performance:

1. New type aluminum alloy case, composed meter-mounting rack, light weight and portable; Single phase electric or mechanical meter can be tested simultaneously.

2. Programmed control and high accuracy testing power source, all operations can be carried out via the special keyboard.

3. Large screen liquid crystal display, and all operation process can be displayed on the screen.

4. Automatic captures spots from tested meter, starting and creep testing.

5. Saving 240 meters tested data.

6.Saved data could be managed by PC with RS232.



Technical index:

1. Accuracy class: 0.1, 0.2

2. Output current: 0.01-60A, range: 0.1A, 0.5A, 1.0A, 2.5A, 5A, 10A, 20A, 60A.

3. Output  voltage: 220V(230V,240V)

4. Output power: 30VA for voltage, 60VA for current.

5. For each range of voltage and current, 0-120% of range value could be continually adjusted, the resolution: 0.1^o

6. Phase scope: 0-359.9^o, adjusted resolution: 0.1^o

7. Adjusted frequency scope: 45.00--65.00Hz, resolution: 0.1Hz.

8. Dimensions:480*320*25mm

9.Power supply: 220V, 230V, 240V, +/-10%.
