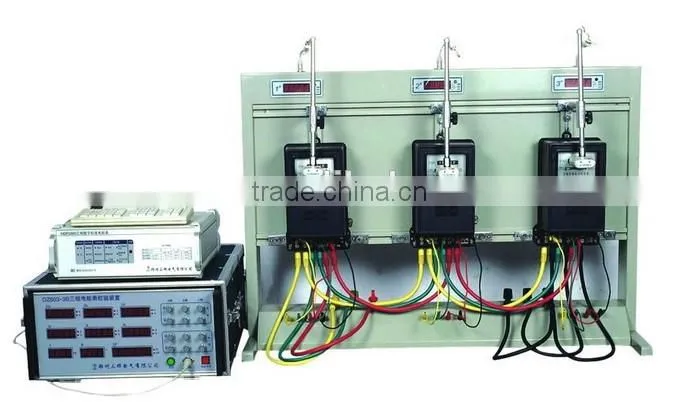

Help CenterDZ603-3B Portable Electricity Meter Testing Bench
Related Products
-
DZ601-3B Single Phase Energy Meter Test BenchUS$ 5,000 - 8,000MOQ: 1 Set -
DZ601-12 Single Phase Electric Meter Test BenchUS$ 10,000 - 16,000MOQ: 1 Set
-
DZ601-48 Single Phase Meter Testing DeviceNegotiableMOQ: 1 Set
-
DZ601-24 Single Phase Meter Test EquipmentUS$ 15,000 - 20,000MOQ: 1 Set
-
DZ601-48 Digital Smart Kwh Meter Test Equipment for Single PhaseUS$ 18,000 - 25,000MOQ: 1 Set
Specifications
1.Certificate: ISO 90012.Accuracy class: 0.05, 0.1
3.Can simultaneously test 3 pcs single-phase & three-phase energy meters.
18 years professional experience
produce as your personal requirement
low price and excellent quality
excellent after-sales service
DZ603-3B Portable Electricity Meter Calibrator
1)Accuracy classes: 0.1 , 0.05
2)Model: DZ603-3B
3)Equipped with 0.05 class three phase reference standard meter
4)The maximum output current: 120A; Ranges: 0.1A, 0.5A, 1.0A, 2.5A, 5A, 10A, 20A,
50A, 60A(72A max)
5)Voltage is divided into four ranges: 57.7V, 100V, 220V, 380V6)Voltage output power: 280VA per phase, current power: 450VA per phase
7)0.01%.For each range of current and voltage, 0~120% of the range value can be
continually adjusted, the resolution is better than 0.01% of range value
8)Accuracy of Indication Meter: Voltage meter: class 0.5, Current meter: class 0.5,
Frequency meter:class 0.3 phase meter: class0.3
9)Phase scope 0~359.9 degrees, adjusted resolution is 0.1 degree
10)Testing points of power factor: 0.5C, 0.8C, 1.0, 0.8L, 0.5L,
11)Range of frequency is from 45.00 to 65.00Hz, adjusted resolution is 0.01Hz
12)Shall set and measure 2-21 times harmonic and measure the distortion
13)Output power stability: 0.05%(PF=1.100Sec)
14)Wave distortion of outputting: < 1%
15)Working ambient temperature: 23 deg¡À2 deg, relative humidity is less than 85%.
16)Voltage supply: AC3¡Á220V+10% (or as per your request) 50Hz
1. Packing & Shipping
Packed in Plywood case
Deliver the goods within one month after receiving the prepayment
1. We can produce the single phase meter test bench/single phase energy meter instrument/single phase electricity meter test equipment according to client's requirement.
2. Good after-sale service, and good quality.
3. All our products can test all items such as Per IEC and ANSI
1. What is the advantages of your products?
Thanks for your inquiry. Our products' advantages is that all products achieve the standard of IEC and ANSI.
And our goods have been exported to many countries in the world, such as Korea, India, Russion, Pakistan, Vietnam ans so on. The quality is excellent that it wins lot reputation for us.
2. What is the shelf life for your products?
Thanks for your consideration. The shelf life of our products is 3 years. (Our company is responsible for the repairing and maintaining free of charge)
3. What terms of trade your company accept?
Thanks for your consideration. Our company accepts T/T, L/C, Western Union. Thanks for your understanding.
