DZ603-6 Three Phase Energy Meters Test Equipments

Specifications

1. Test all items as per IEC and ANSI
2.Certificate: ISO 9001
3.Accuracy class: 0.05

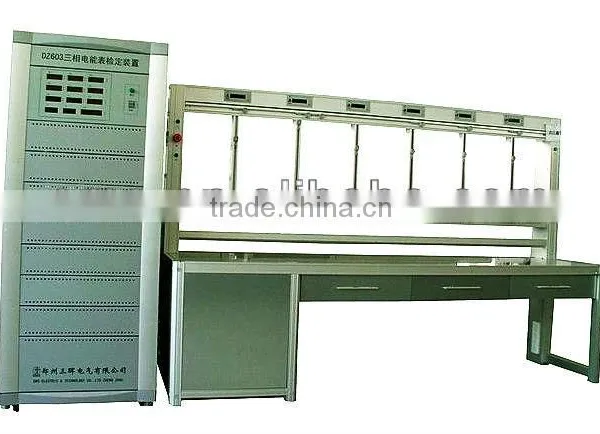

DZ603-6  Three Phases Energy Meter Test equipment

Main Performance:

1. Shall carry out completely automatic calibration items such as running with no load, starting, basic error, standard distortion and 24 hours variation etc according to testing regulations: four quadrant: positive, negative, active or reactive error test, automatic shift the input of all kinds of pulse.

2. The tested meters maybe same specification but different communication protocols.

3. Shall carry out tests such as demand cycle and its display, time interval error, register combined error and daily error.

4. Communication test, GPS broadcast time calibration, meter data verification, regarding record meter number.

5. According to regulations, carry out various influence value test, voltage falling and interruptions shall be carried out.

6. Automatically adjust black spot, calculate time for starting test and running with mo load test according to regulations.

7. Shall adopt fixed time and fixed quality burden methods to carry out the reading test, and different time interval with different burden tests are available.

8. Shall display the voltage and current wave diagram with same phase: shall set and measure 2~21 times harmonic wave and measure the distortion degrees.

9. Data be processed and printed automatically, and the table lay out shall be set freely according to user's requirements, transfer data by all M2S port.

10. Support: bar code input, error curve, error limit setting, multi-mode calibration plans and equipment management authority etc.



item		Class 0.1	Class0.05
Equipment accuracy class		0.1 for active 0.2for reactive	0.05 for active 0.1 for reactive
Standard meter accuracy class		0.05	0.02
Voltage isolated transformer accuracy class		0.01	0.01
Current range		0.1A 0.5A 1.0A 2 .5A  5A 10A 50A 100A
Voltage range		57.7V 100V 220V 380V
Output power	voltage	180VA/phase
	Current	240VA/phase
Voltage adjusting	Adjusting range	0~120%
	Adjusting resolution	10% 1% 0.1% 0.01% 0.001%
Current adjusting	Adjusting range	0~120%
	Adjusting resolution	10% 1% 0.1% 0.01% 0.001%
Phase adjusting	Adjusting range	0.00°~359.99°
	Adjusting resolution	10° 1° 0.1° 0.01°
Frequency adjusting	Adjusting range	45.00~65.00Hz
	Adjusting resolution	10Hz 1Hz 0.1Hz 0.01Hz
Waveform distortion		<0.5%
Three phase dissymmetry		<0.5°
Power stability		<0.05
Display Accuracy class	Voltage	±0.3%
	Current	±0.3%
	power	±0.3%
	frequency	± 0,02Hz
	phase	<0.2°
Working power		220V±10% 50Hz

Technial Index:
