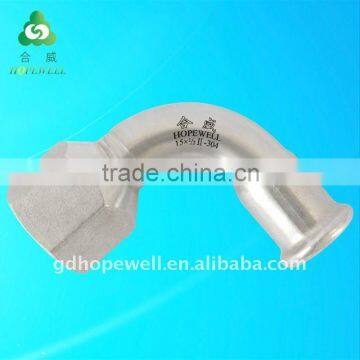

232 Psi Stainless Steel Pipe Elbow

Hopewell Building Materials Co., Ltd.
232 Psi Stainless Steel Pipe Elbow thumbnail-1
232 Psi Stainless Steel Pipe Elbow photo-1
US$ 0.1 - 5 MOQ: 1 Piece
Key Specifications
Get Latest Price
Material:
Stainless Steel
Technics:
Other, Weld, punch, hydraulic
Type:
Elbow
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Stainless Steel
Technics Other, Weld, punch, hydraulic
Type Elbow
Place of Origin Guangdong, China
Model Number HW04051
Brand Name HOPEWELL
Connection Other, Press connect
Shape Equal
Head Code Other, Round

Stainless steel press fitting and pipe system


Water working pressure high to 1.6MPa (232psi);
Only need 8 second to finish install a connector, very easy install;
Perfect choice to replace traditional pipe fitting.

Product Description


Stainless Steel Press Fitting Pipe System

Hopewell press fitting system joins pipe without welding or bolting, can be widely used in cold and hot water supply, heating supply, fire protection, medicinal gas, industrial petroleum pipeline system etc. It has already replaced welding fittings in most Europe countries, Asia countries, America, Australia and some other countries.

Sizes range:
The norminal diameters are: DN15, 20, 25, 32, 40, 50, 65, 80 and DN100, including GB 1 and GB 2.
GB 1 series is same size as EN10312, out diameters are: 18, 22, 28, 35, 42, 54, 76.1, 88.9, 108mm.
GB 2 series is same size as JIS G 3448, out diameters are: 15.88, 22.22, 28.58, 34.00, 42.7, 48.6, 76.1, 88.9, 108mm.
Which sizes is suitable for your market?
GB Ⅰ(EN10312)GB Ⅱ(JIS G3448)
Item No.Nominal Dia.DiameterThickItem No.Nominal Dia. DiameterThick
HW015BDN15181HW015ADN1515.880.8
HW020BDN20221.2HW020ADN2022.221
HW025BDN25281.2HW025ADN2528.581
HW032BDN32351.5HW032ADN32341.2
HW040BDN40421.5HW040ADN4042.71.2
HW050BDN50541.5HW050ADN5048.61.2
HW065BDN6576.12HW065BDN6576.12
HW080BDN8088.92HW080BDN8088.92
HW100BDN1001082HW100BDN1001082
NoteStandard pipe length is 6m. Other lengths and specifications can be customized according to correspondents' needs.

Standard:
Press fitting standard: GB/T 19228.1-2003, DVGW W534-1995 and JWWA G116
Pipe standard: GB/T 19228.2-2003, BS EN 10312 and JIS G3448
Sealing ring standard: GBT 19228.3-2003, EN681-1:1998

Technical information:
-- Material: Stainless steel 304 and 316 available.
-- Max working pressure 1.6MPa (equal to 232 psi),
testing water pressure: 2.5MPa for JIS sizes (equal to 362.5psi), and 5MPa for EN10312 sizes.
-- Working temperature from -20 to 110 degree centigrade (with Chlorinated butyl rubber O ring),
-- Suit medium: cold water, hot water, compressed air, gas, oil etc


Press fitting range:
Coupling -- Equal coupling, Reducing coupling, Adjustable coupling, coupling with screw;
Elbow -- equal elbow, reducing elbow, elbow with plain end, elbow with screw;
Tee -- equal tee, reducing tee, tee with screw;
Other fittings -- Pipe cap, pipe bridge and Flange.


Sealing ring material:
Option 1. CIIR(Chlorinated butyl rubber): Sanitary for human consumption, not oil resistant. Suitable for drinking water, tap water, hot and cold water, sanitary air.
Option 2. EPDM(Ethylene-Propylene-Diene Monomer) : Sanitary for human consumer, not oil resistant. Suitable for drinking water, tap water, hot and cold water, sanitary air and compressed gas.
Option 3: FKM(Fluororubber): It is both oil proof and sanitary. suitable for edible oil, compressed air. But a little more expensive than CIIR, EPDM and NBR.

What application purpose do you want to use the press fit pipeline system? Which O-ring Material do you prefer?


Advantages of Press Fitting Pipeline:
(1). Corrosion-resistant:
232 psi stainless steel pipe elbow



(2). Easy Installation:
232 psi stainless steel pipe elbow


(3). Load High Working Pressure(1.6MPa / 232PSI):
232 psi stainless steel pipe elbow


(4). Shock Resistant:
232 psi stainless steel pipe elbow

(5). Suitable for In-wall Installation:
232 psi stainless steel pipe elbow

(6). Low Comprehensive Cost:
232 psi stainless steel pipe elbow


* Installation Case Example:
232 psi stainless steel pipe elbow



Packaging & Shipping

For press fittings packing: we pack press fittings in polybag to prevent surface scratch, and then pack them inside brown export cartons.


For pipe packing: we pack the stainless steel pipes inside polybag, so that it can prevent surface scratch, and keep dirts away from the inside of the pipes.
If you have special requirement on packing, please tell us.

* Press Fitting Packing:
232 psi stainless steel pipe elbow


* Container Loaded:
232 psi stainless steel pipe elbow


Our Services

* Free sample: we can provide a few free sample for evaluation.

* After-sales service: we provide after-sales technical support for clients.

* Strict Quality control: we have 100% inspection before delivery to ensure every pieces are in good quality.

Below you can see pictures of our inspection line:

232 psi stainless steel pipe elbow

232 psi stainless steel pipe elbow


Company Information

We are an ISO certified professional manufaturer supplying stainless steel press fittings and pipes.

ISO certification:

232 psi stainless steel pipe elbow

We have getten Singapore, HongKong and Brunei approval, see as below:

232 psi stainless steel pipe elbow

Production line view:

232 psi stainless steel pipe elbow



Production line View:
232 psi stainless steel pipe elbow


Please contact us for free sample and pricelist.
