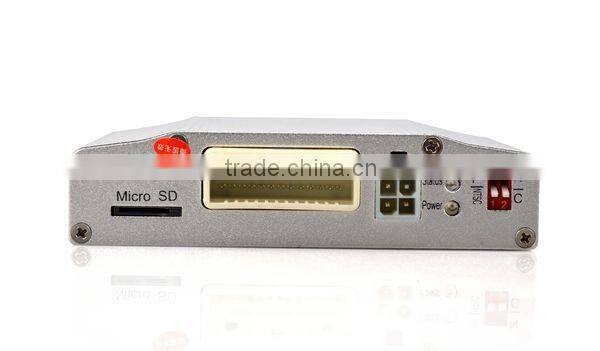

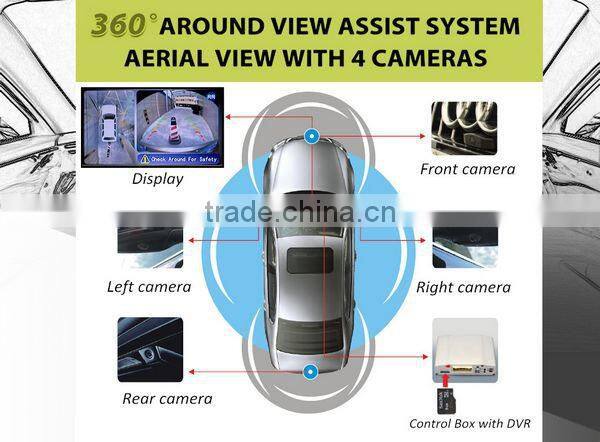

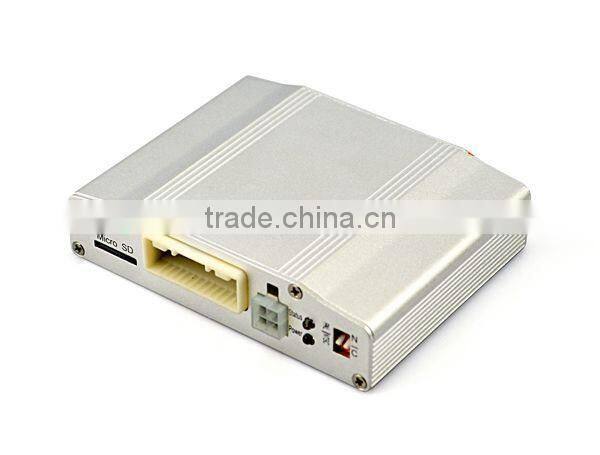

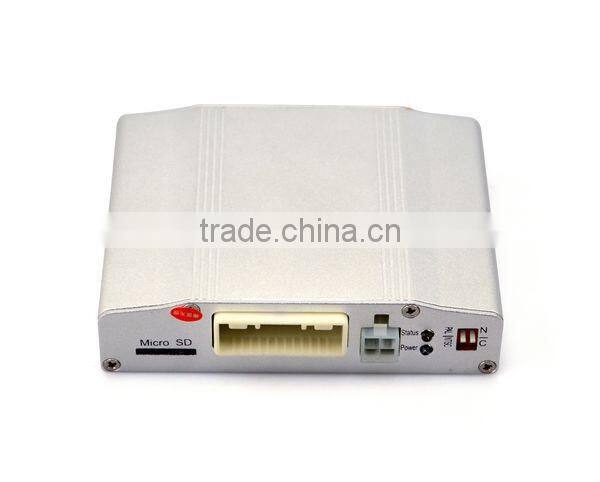

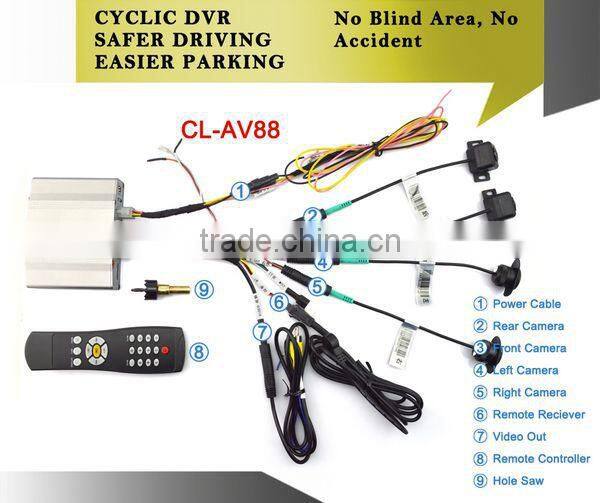

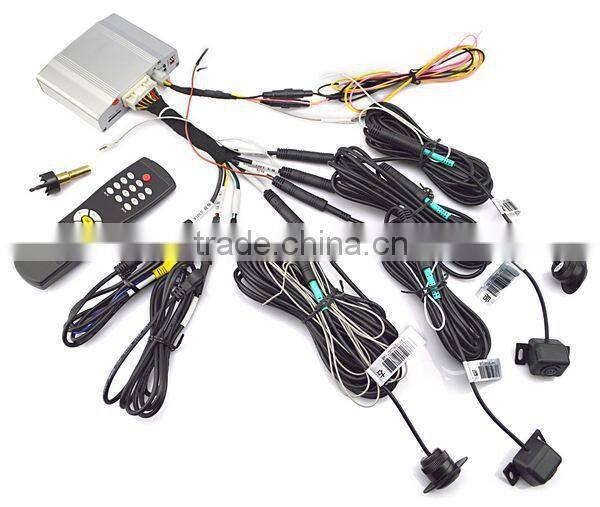

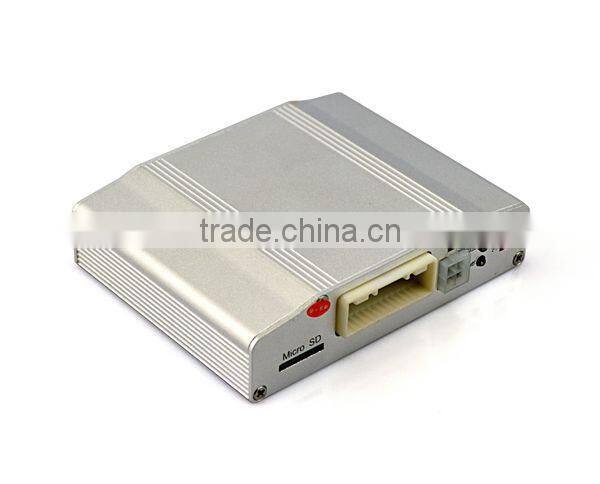

Chelong Original Manufacturer 360 degree around view car cctv camera recorder
Processor
CPU: TI3730
TV System: PAL/NTSC
Video FPS:PAL: 25fps,
NTSC: 30fps
Working voltage: DC 8V~28V
Working current: 160mA(DC12V)
Average power dissipation: 2000mW
Boot time: 2sec;
Wake-up time: 1sec;
Picture switch time: 200msec
Guide line error less than 10CM
Video standard: PAL or NTSC optional
2BIT dial-up
Normal start(N)or upgrade mode start(C);
Power interface connect with normal power cable;
Operating Temperature(Deg.C): 0℃~+70℃
Interface style with flexible configuration
Support Micro SD card,for system configuration,software upgrading and Video data recording and storage
Weight: 185±8g
Storage Temperature(Deg.C) : -40℃~+105℃
Status indicator is blue, blue lights flashing when normal operation;
Power indicator is red, red lights flashing when normal operation
Camera
Image feature:PC3089
Input power: DC 3.3V
Working current: 120mA
Lens Angle(Deg.) : 170°
Resolution(TV Lines) : 480
Video Output: 1.1Vp-p,75 Ohm
Storage Temperature(Deg.C) : -40℃~+105℃
Operating Temperature(Deg.C): -40℃~+85℃
Ip rating: GB4208-2008 IPX7
1. Gift Box For car cctv camera recorder :
2.Shipping:By DHL/UPS/FEDEX/EMS/TNT/CHINA POST...
1.One-to-one service with efficient support;
2.Speedy shipment: we could arrange the shipment within 5 business days after we have confirmed the payment;
3.We could offer the best competitive price;
4.We could supply unique items;
5.Quality stability, can to provide certification of products( such as CE, FCC, ISO9001:2000);
6.Con venient payment methods: Paypal, bank-in, T/T and Western Union.
7.Product Warranty: The goods on appro for six months ,and to repair it free for a year,which we will bear the expense.
