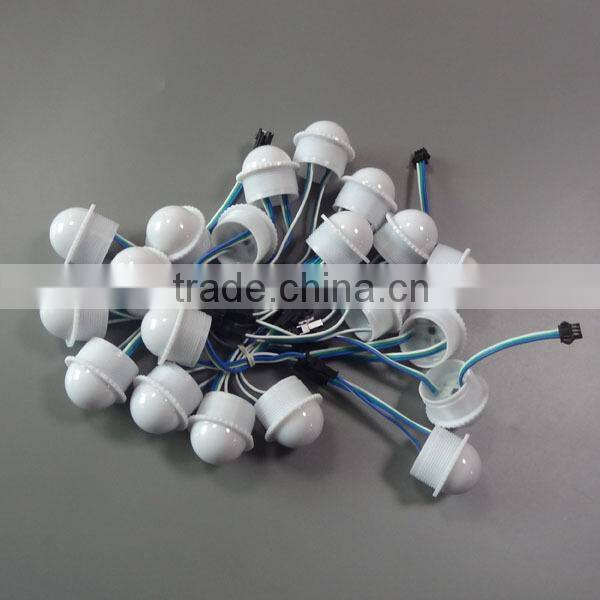

Programable 36mm 6leds LED Pixel (UCS1903)

Name: Programable 36mm 6leds LED Pixel (UCS1903)
Brand: BTF-Lighting
SKU: 112559601
Availability: InStock

US$ 1 - 1.5 MOQ: 20 Pieces

Key Specifications

Model Number:

BTF-D36

Emitting Color:

Other, full color

Luminous Flux(lm):

Shenzhen BTF-Lighting Technology Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Model Number BTF-D36

Emitting Color Other, full color

Luminous Flux(lm) 60

Power Other, 1.44W / pcs

Storage Temperature(℃) -45, 60

Place of Origin Guangdong, China

Brand Name BTF-Lighting

Certification CE

Programable 36mm LED Pixel (UCS1903)

Feature:

1. Individually control: 1PCS LED pixel & 1IC (UCS1903)

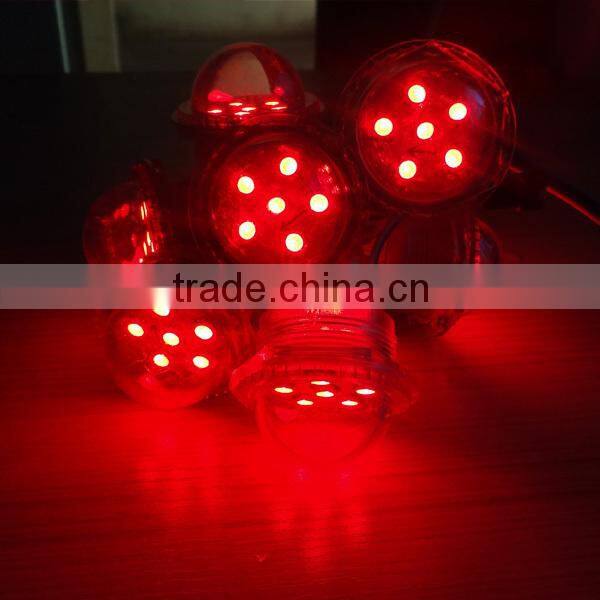

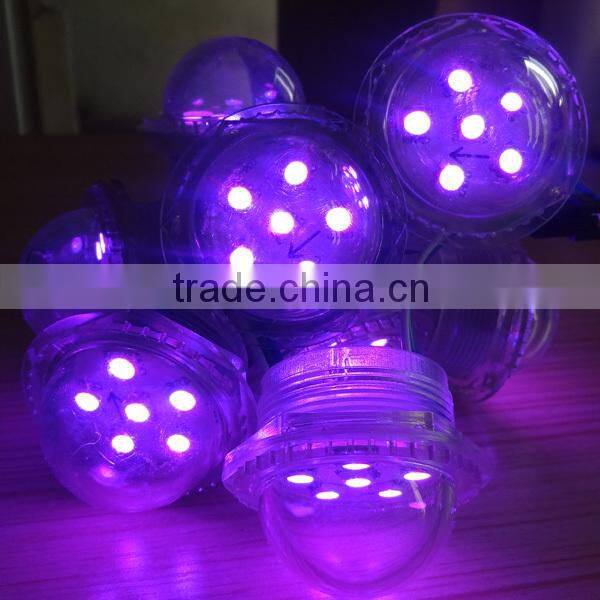

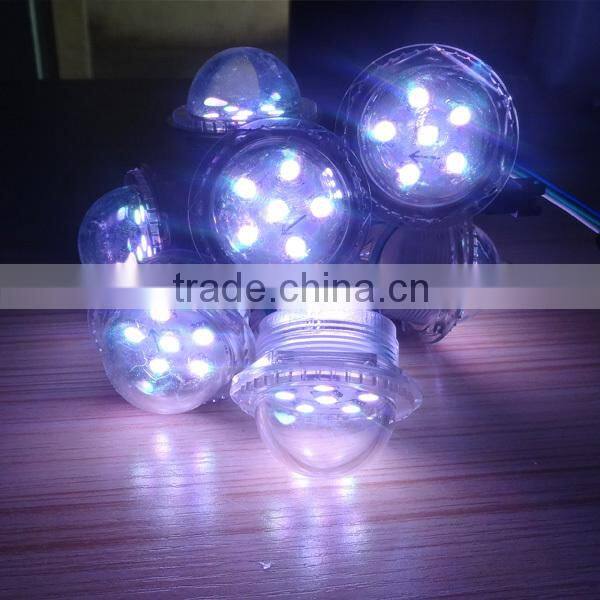

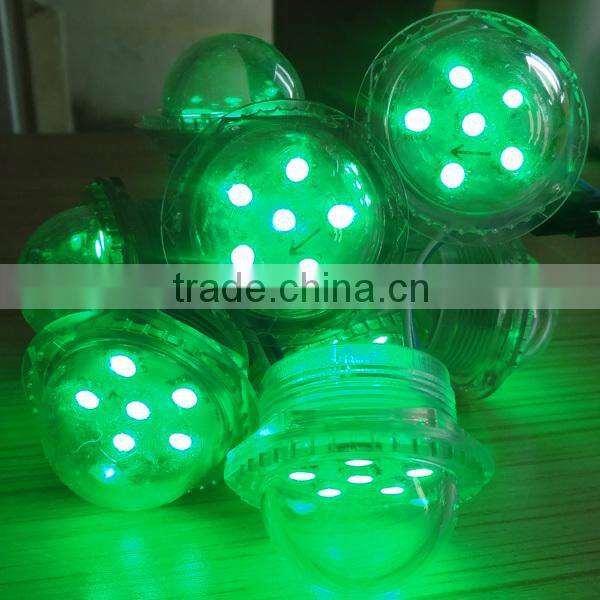

2. Color and effect: addressable lights you can set to any color, or animate, like running water,chasing

and scanning etc. depending on the different installation methods may compose different dynamic

effect of different color's character and design

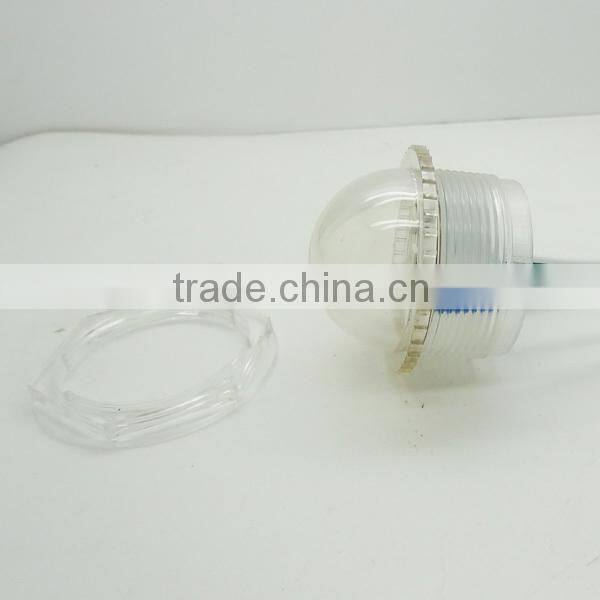

3. Combination: PVC shell(thermostability, cold-resistant, resistant to UV) and PCB board, connector cables...

4. Waterproof: Yes IP65, with silicon glue waterproof protection.

5. Installation: Easy to install, you'd better drill the hole about 36 - 40mm.

6. With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.

7. Power supply: You must use a 24V DC power supply to power this pixel, do not use higher than 25V

or you can destroy the entire pixel.

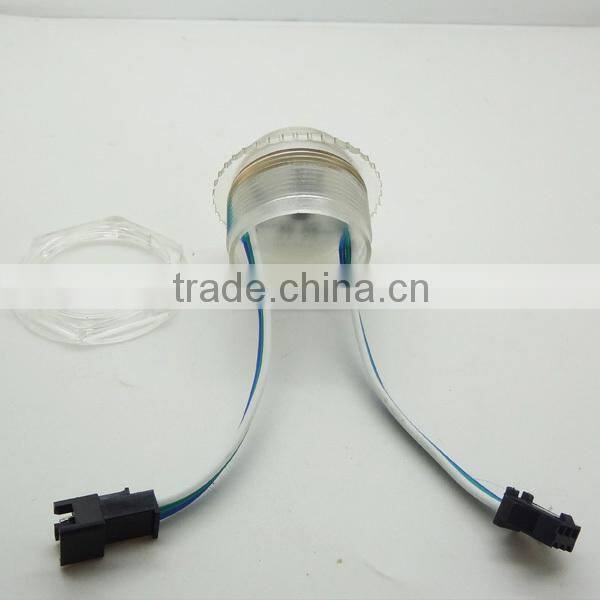

8. Connetors: 3PIN JST female and male connectors, also can be waterproof connectors, DAT, DC24V+, GND-,

each led pixel is seperate, you can connect them one by one via male and female connectors easliy.

10. Brand: iPixel LED

Specification:

Product Name	35mm 6LEDs/pcs led pixels
Product No.	P356V24
LED Chip	Epistar SMD 5050 RGB LED chip
IC Chip	UCS1903
Input Voltage	DC24V
Watts	1.44W/PCS
Cover Color	transparent cover, Milky cover
Connectors	3PIN JST, also can be waterproof connectors
Beam angle	140
Certification	CE, RoHS
LED Qty	6LEDs/pcs
Cable Length	10cm usually, also can be customized
