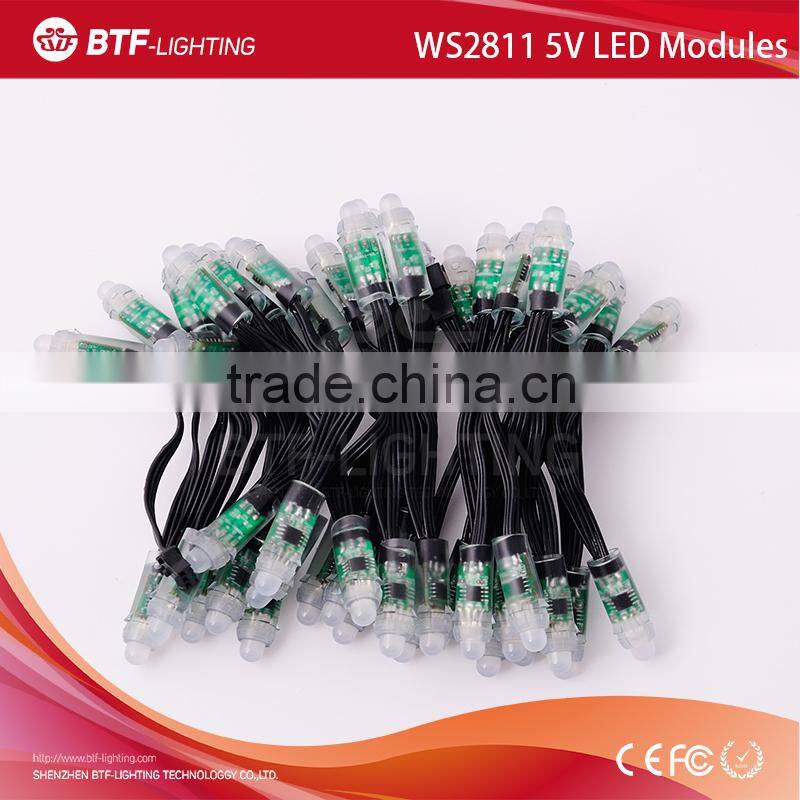

Help CenterWS2811 Pixel Led Module 5V IP68 Waterproof White Wire
Related Products
-
WS2811 Pixel Led Module 5V IP68 WaterproofUS$ 1 - 20MOQ: 1 Strand -
WS2811 12MM Module Ip68US$ 8.82 - 12.86MOQ: 1 Strand
-
Ws2811 Modules Non-waterproof 5vUS$ 0.13 - 0.2MOQ: 50 Pieces
-
Ws2811adressable Modules Non-waterproof 5vUS$ 0.13 - 0.2MOQ: 50 Pieces
-
Ws2811 Led Modules Non-waterproof 5vUS$ 0.13 - 0.2MOQ: 50 Pieces
Specifications
rgb LED pixel lighting (WS 2811 IC)
DMX512 controllable &compatible with Madrix
Working voltage: DC5V
Working current: 60ma
Working consumption: 0.3W
Working temperature: 40°C- 60
IP grade: IP68
Dimension: 12mm*14mm
LED type: 1pcs stawhat
LED qty: 1pcs
Lifespan: MTBF>50000h
Viewing angle: >90
Specification:
Part No |
BTF-2811-12mm-5V |
Color |
rgb full color,each node individually controlled,takes 3 dmx channels |
LED Qty |
1pcs 8mm round hat rgb led |
Input Volt |
DC5V |
Max current |
60MA |
Max Power |
0.24W |
Driver method |
Constant current circuit |
Dimension |
12mm diameter(open hole) |
Viewing angle |
100-120degree |
Protection Level |
IP68 |
Certification |
CE and RoHS |
Standard connection |
50pcs module per string |
Standard wire length |
100mm , Black/Green/White/Tansparent/RWB wire |
Housing |
transparent PVC |
Fixed way |
open hole |
Lifespan |
50000 hours |
Warranty |
2 years |
Operation temperature |
-40-50 |
Store temperature |
-50-60 |

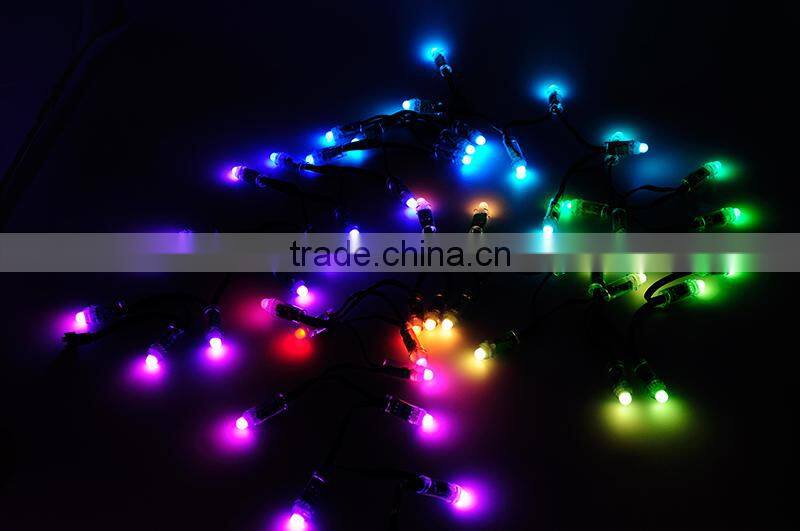

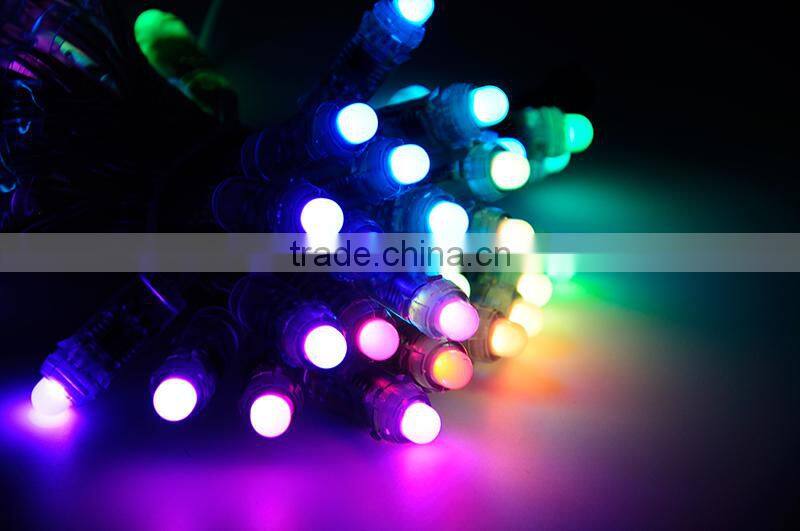

RGB Pixels are digitally-controllable lights you can set to any color, or animate
Each RGB LED and controller chip is molded into a 'dot' of silicone.
The dots are waterproof and rugged.
There are four flanges molded in so that you can 'push' them
into a 12mm drill hole in any material up to 1.5mm/0.06" thick
They are typically used to make outdoor signs. Compared to our other 20mm LED dots
these are diffused 8mm LEDs so they are not as bright but they color mix a little nicer.
The pixels are connected by a 3-conductor cable. Red is +5V, Yellow is Ground, Green is Data and
Data is shifted down from one pixel to the next so that you can easily
cut the strand or attach more onto the end.
Each dot is digitally controlled, with an internal 8-bit PWM LED driver (24-bit color for 32,768 different shades). The pixels must be clocked by a microcontroller
The pixels use 8mm diffused RGB LEDs
with brightness of about 300 mcd per individual r/g/b LED.
SD controller
Programable by Software
Individually Control
Conformal Coating,PVC glue protection
IP66, Water-proof protection
Easy installation (punching 12mm hole on metal panel)
50pcs per set
Applications
Meets the general lighting
environment such as:
Outdoor advertising
christmas decoration
Black Wire
Green Wire
White Wire
Tansparent Wire
RWB Wire
Packaged included:
50 pieces ws2811 pixel module per string
