Specifications
a.Gas boilerfor heating and hot water supplyb.Double heat exchanger
c.High quality valve system
d.Rectangle expansion water
Model:L1PB24-BTA(L)

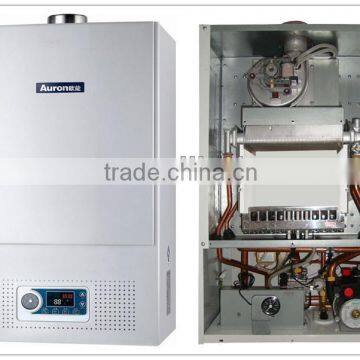

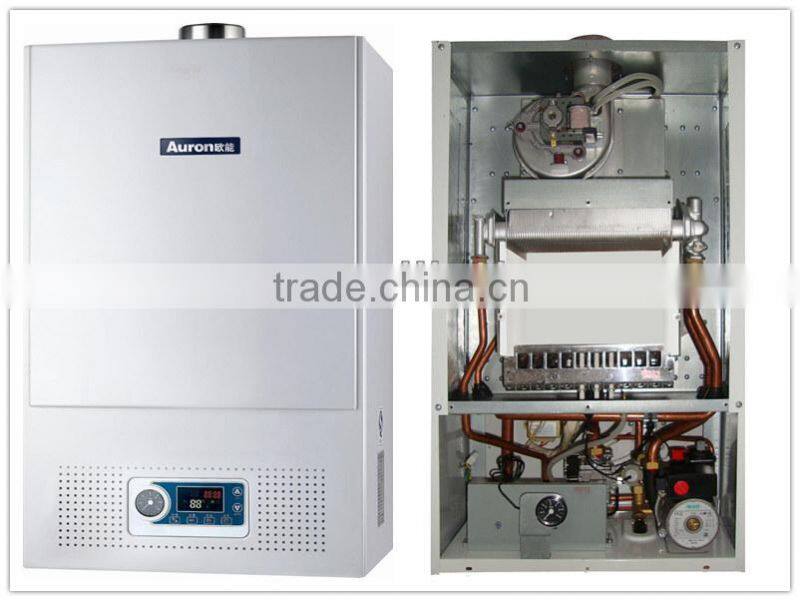

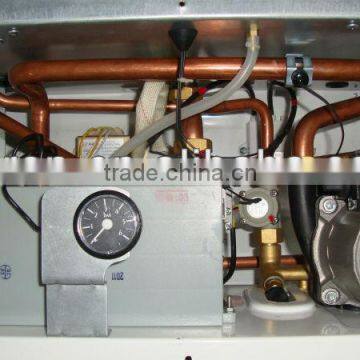

Wall Hung Gas Boiler For Russia Market
a.Double pipe type
b.Heating & Bathing for 24kw
c.Germany Technology
d.High Efficiency & Gas-saving, export to Russia,Ukraine,Iran,etc
1.Product characteristic:
a.European Technology
b.Provide both heating and shower water
c.High efficiency and gas-saving
d.Four section timer
e.Fashional appearance design
f.High quality components with CE certificates
2.Safety features:
-Triple overheat protection.
-Flameout protection.
-Reignition function.
-Defer ignition function.
-Anti-freezing function .
-Anti-lock function for pump.
-Overload protection for pump.
-Lightning strike protection.
-Overload protection for control system.
-Safety release function.
-Automatic circulation function of pump.
-Self-diagnostic function.
-Safety lock function.
-Automatic by-pass valve
-Gas Boiler (24KW)
-EUTechnology
-Supply Both Heating
3.Technology parameter:
| Product Model | Unit | L1PB20-BTA | ||
| Rated Heat Input | Kw | 20 | ||
| Min. Heat Input | Kw | 6 | ||
| Rated Heating Heat Output | Kw | 18 | ||
| Min. Heating Heat Output | Kw | 5 | ||
| Rated Output Hot Water Δt=30K | Kg/min | 9 | ||
| Gas Type | NG | |||
| Rated Gas Pressure | Pa | 2000 | ||
| Heating Systerm Water Pressure Range | Mpa | 0.05~0.3 | ||
| Safety Valve Openning Water Pressure | Bar | 3 | ||
| Domestic Hot Water Systerm Pressure Range | Mpa | 0.05~0.6 | ||
| The Water Cycle Way Of Heating | Built-in Closed Water Tank | |||
| Water Temperature Adjustment Range | Heating Water Output | °C | 40~80 | |
| Domestic Hot Water Output | °C | 30~60 | ||
| Heat Efficiency | % | 88-94% | ||
| Max.Power Input | W | 105 | ||
| Power Supply | V/Hz | AC220V 50Hz | ||
| Pump lift | m | 5 | ||

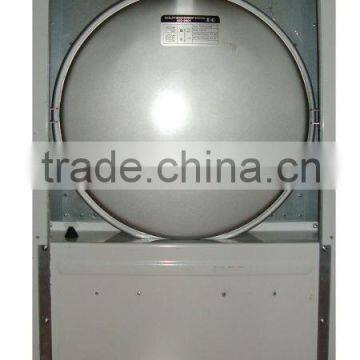

| Expansion tank capacity | L | 6.5 | ||
| Insulation Grade | Ⅰ | Ⅰ | ||
| Index Of Protection | IPX4D | IPX4D | ||
| Exhaust Way | Forced Exhaust | |||
| Outside Diameter and Inside Diameter Of Exhaust Smoke Gas | mm | Φ90/Φ60 | ||
| Max.Permissible Flue Length | m | 3 | ||
| Flue Pipe Length Reduction For Elbow | 90°Elbow 90° | m | 1 | |
| 45°Elbow 45° | m | 0.5 | ||
| Fittings | Central heating fitting | Inch | G3/4 | |
| DHW fitting | Inch | G1/2 | ||
| Gas fitting | Inch | G3/4 | ||
| Reference heating square | m2 | <100 | ||
| N.W | Kg | 33 | ||
| G.W | Kg | 35 | ||
| External Dimensions | mm | 710*450*220 | ||
| Packing Size | mm | 850*545*330 | ||
| Loading Quantity | 20ft | Pcs | 180 | |
| 40FT | Pcs | 350 | ||
| 40HQ | Pcs | 445 | ||
4.The policy of warranty:
1 year warranty.
Provide the spare parts for free of charge with some easy
Broken.
We can replace it if the quality of product is confirmed cause
of ours responsibility
More than 10 years experience specialize
OEM & ODM are welcome!
