Related Products
Specifications
1. CE/CSA/SGS/ISO2. Sample is available
3. CO2 fluctuating quantity 0.3% max
4. According to customers' drawings
Ningbo Jiali manufactures ODS for 15 years.
ODS stands for "Oxygen Depletion Sensor".

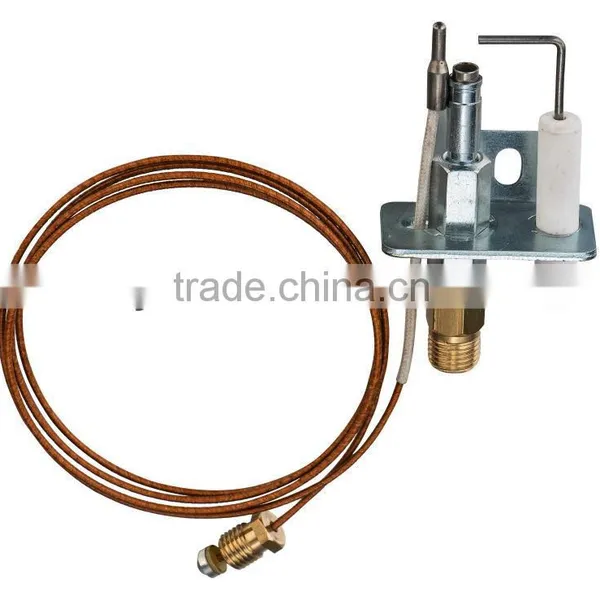

Oxygen depletion safety shut-off system(ODS):
The system is made up of thermocouple,ignitor,the injector(burner) assembly and the nozzle assembly and so on.
It is designed to shut off the main burner of the gas appliance for use with NG or LPG gases ,when the oxygen
content of the room in which the appliance installed is reduced below a predetermined level,so as to protect
user’s health and safty.

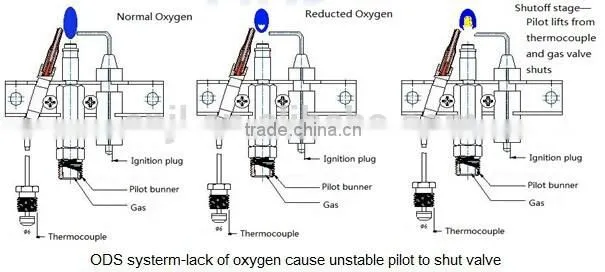

1.Working principle: ODS use thermocouple component as a sensor to search the temperature
of pilot flame in order to drive the electromagnetic valve,when the space is hypoxia( O2 17%~19%),the
flame temperature is under 400°C,there is not enough potential to open the valve ,so then the valve will be closed to keep safe .
2.Function: automatic ignition for gas appliance ,hypoxia protection.
3. Applicable gas : LPG,NG,Propane & Butane
4.All design and production are may according to customer’s demand.
Technical parameters
| Applicable gas species | LPG,NG,Propane & Butane | |||||||||
| CO2 | 0.8%-1.5% | |||||||||
| O2 | ≥19.0% | |||||||||
| CO | ≤50ppm | |||||||||
| Inner resistance | 5-50±3 mΩ | |||||||||
| No-load potential | ≥20mV(650℃) | |||||||||
| Connector | Nut (M8*1,M9*1) or others | |||||||||
| Axial tension 50N, sustain 1 min, no loose, no cut | ||||||||||
| The length according the client’s request | ||||||||||
1.Operating Condition:
Range of ambient temperatures: 0°C ~52°C (32°F to 125°F)
2.Maximum operating temperatures:
Thermocouple Tip:750ºC / 1382°F
Thermocouple Wire:180ºC / 356°F
Cold Junction:150 ºC / 302°F
ASM-Injector(Burner):750ºC / 1382°F
ASM-Igniter:800ºC / 1382°F
Bracket:400ºC / 752°F
ASM-Nozzle:250ºC / 482°F
3 Thermocouple:
Heating characteristic: ≥12mV (within 20s at 650℃)
Cooling characteristic: ≤1.5mV(within 60s)
Range of length:150mm(5.9 inch)~1600mm(63 inch)
Range of resistance:10~50 mΩ
4. Ignition source:continuous
5. Flame performance:(working under normal conditions with no wind):
Flame away (Flame is away from the burner hole):NO
Application
barbecue grill, fryer, gas oven, patio heaters, gas cookers, oven, outdoor,
volumetric gas water heaters and remove protection device
Our Advantage
|
No.1 Consistency of mass-production Shut-off point of CO2 within 0.3% |
|
No.2 CSA Certificate We are one of the few companies with CSA in china |
|
No.3 5 patents The unique patented design |

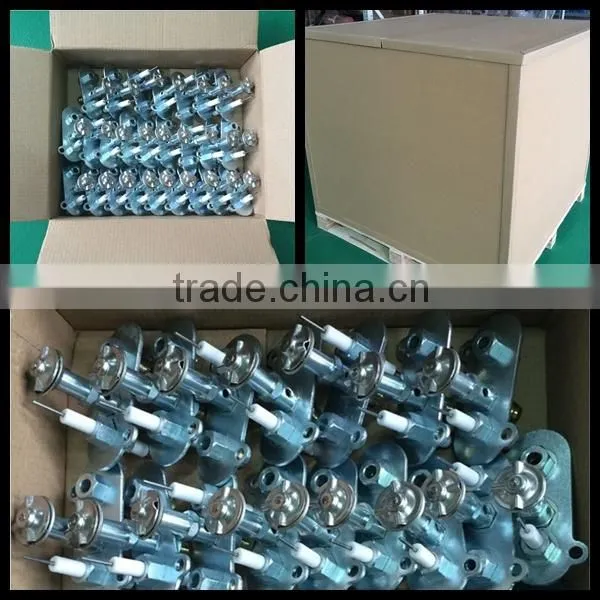

Parking material |
Cartons & pallets & PVC bags |
PCS/BAG |
25pcs/ctns |
PCS/CTNS |
200pcs/ctns |
CTN Size |
400*250*30mm |
Pallets |
120*120*90mm |
Shipping |
By courier or by sea |
This packing Ensure no damage to the goods!
Delivery time:
Sample lead time:5days
Delivery time:15-25days after confirmation of the order
Ningbo JiaLi Gas Appliance & Science and Technology Co., Ltd. | |
In 1998 |
The company was founded. Specializes in manufacturing of gas appliance. Such as: Thermocouple,ODS,Thermostat,Magnet valve etc. |
In 2002 |
we have a number of outstanding engineers and perfect laboratory which make sure that we can prodcue great products. |
In 2009 |
Company through the ISO9001 Our thermocouple passed the CSA. |
In 2011 |
ERP system & ISO (matching the ERP) began to be applied. fully guarantee products' quanlity and efficient internal management. |
In 2012 |
ODS Pilot burner has 5 patents, and passed the CSA by one-time. The shut-off point of our ODS products can be controlled within 0.3% (CO2, for example 0.8~1.1%). |
In 2014 |
We moved into the new factory, Modernization. Have more advanced equipments, technology and professional team. |
|
Our customers are all over the world. High quality products and good services are make us be recognized by the customers Our target: let every family gas cooker more safety and environmently! | |
This is our sale team,welcome to visit our company!
Our workshop manufacturing of gas appliance such as thermocouple,magnet valve and so on !
1.Inquiry response:Your inquires will be replied in 24hours.
2.Samples support:Two free samples are avaliable in 2-5days.
3.Delivery time:Your shipment will be loaded in 15-25days,depeds on quantity.
Two heads are better than one.
Q:Can you provide samples ?
A:Of course,we can offer you samples for free(less than three),and you just pay freight.
Q:What about your delivery time?
A:Within 25 days after received your deposit.
Q:Can you tell me your payment term?
A:Always 30%TT and balance with BL copy.also we can accept LCDPDA.
Q:Will you give us any discounts when we place a bigger order?
A:Of course,but the discount depends on the quality.
