Specifications
1. CE/CSA/SGS/ISO2. Sample is available
3. CO2 fluctuating quantity 0.3% max
4. According to customers' drawings
Principle

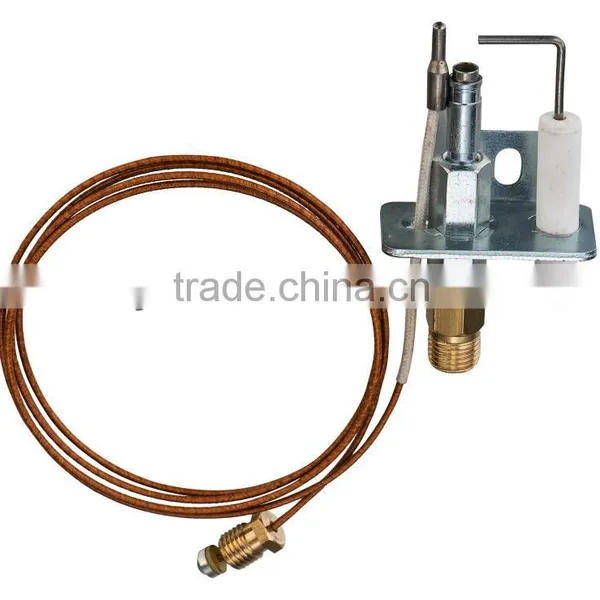

The system is made up of thermocouple, ignitor, the injector(burner) assembly and the nozzle assembly and so on. It is designed to shut off the main burner of the gas appliance, when the oxygen content of the room in which the appliance installed is reduced below a predetermined level, so as to shut off gas ovens to protect user’s health and safty.
Normal Operation:
20.9 Percent Oxygen -
The flame touches the tip of the Thermocouple, generating the necessary millivoltage needed to hold the gas valve open.
Oxygen Level Drops:
19 Percent Oxygen -
The flame begins to lift off the precision pilot burner. The thermocouple begins to cool.
Safety Shutdown:
18 Percent Oxygen -
The unstable pilot flame goes out, causing the thermocouple to cool.
The thermocouple stops generating the electricity needed to hold the spring loaded solenoid valve open.
The valve shuts the ventfree gas heater down and cannot be started until the oxygen level in the room returns to normal.
Application
ODS specified for gas oven,gas heater,outdoor heaters etc.
Our Advantage
| No.1 | Consistency of mass-production |
| Shut-off point of CO2 within 0.3%(eg:0.8%-1.1%) | |
| No.2 | CSA Certificate |
| We are one of the few companies with CSA in china | |
| No.3 | 5 patents |
| The unique patented design |
| Technical parameters | |
| Applicable gas species | LPG,NG,Propane & Butane |
| CO2 | 0.8%-1.5% |
| O2 | ≥19.0% |
| CO | ≤50ppm |
| Inner resistance | 5-50±3 mΩ |
| No-load potential | ≥20mV(650°C) |
| Connector | Nut (M8*1,M9*1) or others |
| Axial tension 50N, sustain 1 min, no loose, no cut | |
| The length according the client’s request |
ODS 03 ODS 05 ODS 08
About us
(1). JIALI was established in 1998, has nearly 15 years exporting experience
(2). Manufacturing Thermocouple,ODS,Thermostat,Magnet valve etc.
(3). CSA CE ISO SGS
(4). producing by your drawings,samples or pictures
