Home > Consumer Electronics > Display & Accessories > LCD Module > 8inch 600nits 1024*600 High Brightness Lcd Display Module With Lvds Interface
8inch 600nits 1024*600 High Brightness Lcd Display Module With Lvds Interface
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Wilcon
Model Number:
SW080HB-SVA4
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
8inch 700nits 1024*768 High Brightness Lcd Capacitive Touch Panel With LVDS InterfaceNegotiableMOQ: 1 Piece -
7inch 450nits 800*480 High Brightness Lcd Screen With RGB InterfaceNegotiableMOQ: 1 Piece
-
7inch 800*480 RGB Interface Resistive Touch Screen Tft Lcd With 250nitsNegotiableMOQ: 1 Piece
-
7inch 800*480 RGB Interface 250nits Capactive Touch Panel Tft DisplayNegotiableMOQ: 1 Piece
-
7inch 800*480 RGB Interface Tft Display Lcd With 250nits BrightnessNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Wilcon
Model Number
SW080HB-SVA4
Type
Other, TFT, TFT
8.0inch TFT LCD module
LCD specification
| Part 1:LCD parameters | ||
| 1 | Product name | 8.0inch lcd module |
| 2 | Model number | SW080HB-SVA4 |
| 3 | Size | 8.0INCH |
| 4 | Type | TFT |
| 5 | Viewing angle | 6:00 |
| 6 | Display scale | 16:9 |
| 7 | Display mode | Normally white, Transmissive |
| 8 | Resolution | 1024*600 |
| 9 | Piexel pitch | 0.1775(W)*0.1656(H) |
| 10 | Dimension | 192.8*116.9*6.4mm |
| 11 | Active area | 176.64*99.36 |
| 12 | Color | 16.7M |
| 13 | Color arragement | RGB |
| 14 | Interface | LVDS |
| 17 | Response time | 30ms |
| 18 | Contrast ratio | 700:1 |
| 19 | Brightness | 600cd/m2 |
| 20 | VDD | 3.3V |
| 21 | Backlight | LED |
| 22 | Backlight color | White |
| 23 | LED lifetime | 20000hours |
| 24 | Voltage for LED | 9.9V |
| 25 | Current for LED | 240mA |
| 26 | Consumption | / |
| 27 | Module weight | / |
| 28 | Drive IC | / |
| 29 | Interface connect type | connector type |
| 30 | Surface tratement | Plain |
| 31 | Pin number | 40PINS |
| 32 | Warranty | 12 months |
| 33 | Packing material | Box |
| 34 | Shipment | Express*Air*Sea |
| Part 2:Operation Speficifactions | ||
| 1 | Operature Temperature | -20----70℃ degrees |
| 2 | Storage Temperature | -30----80℃ degrees |
| Part 3:Touch panel | ||
| 1 | Touch | RTP ,CTP is available,depends on customer need |
| Part 4:Lead time | ||
| 1 | Sample | 2 working days |
| 2 | Mass production | 2-4 weeks |
.

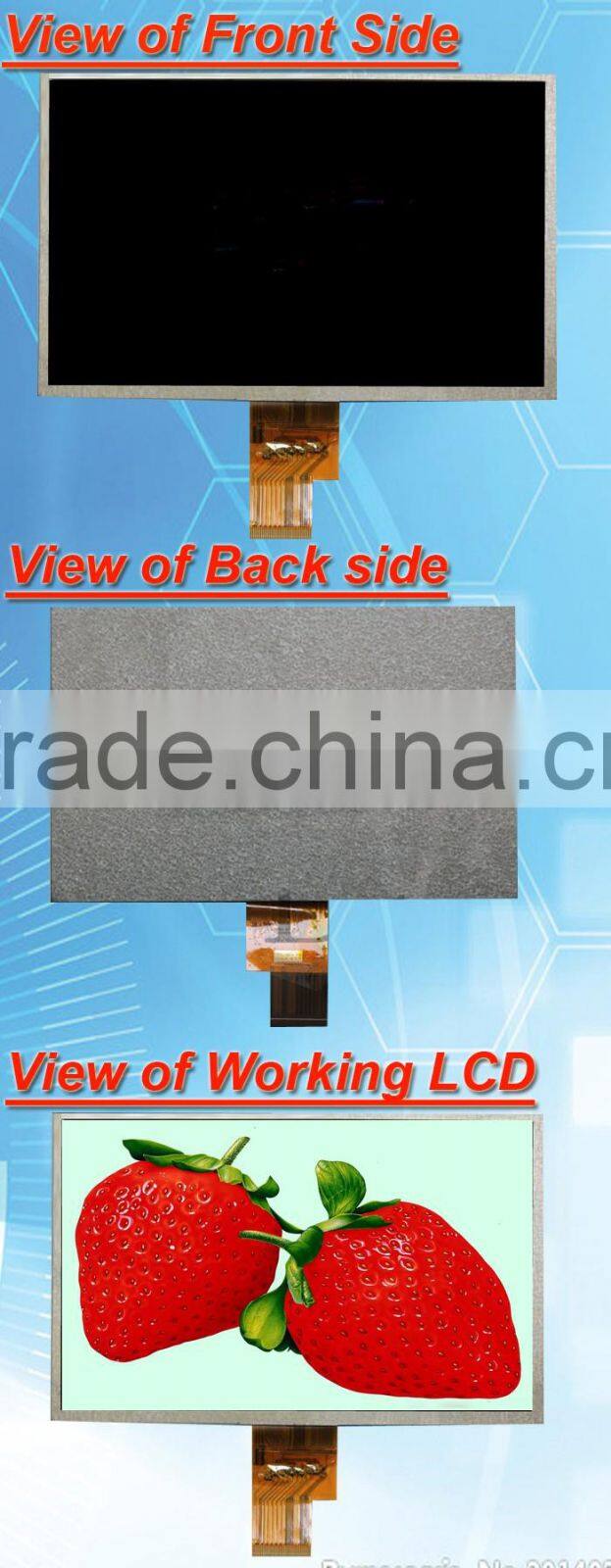

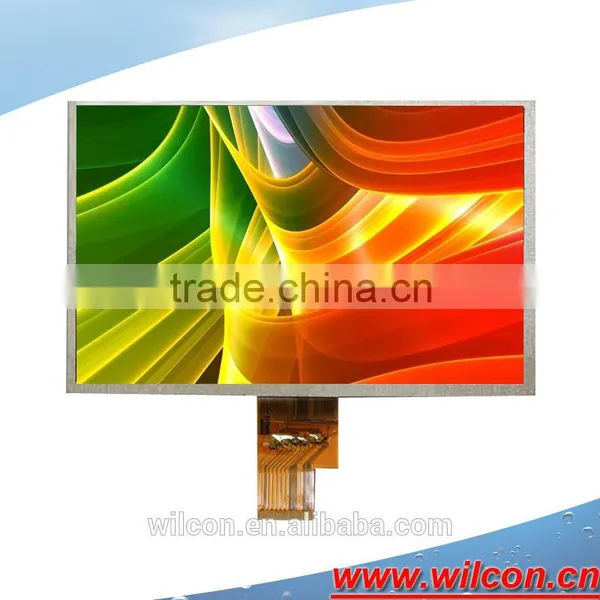

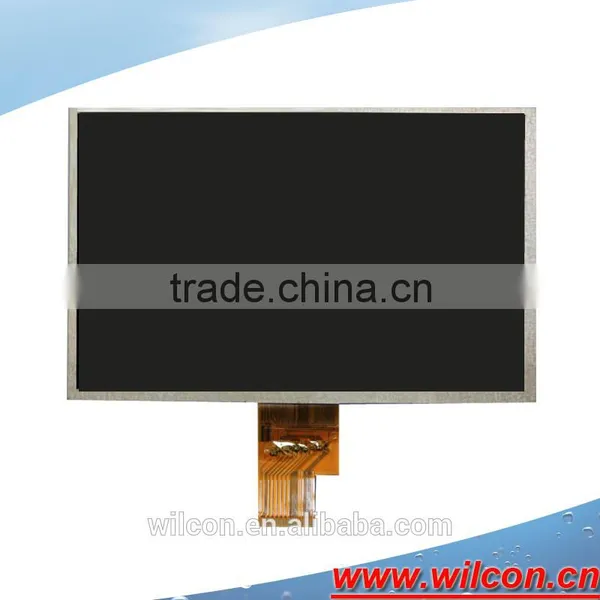

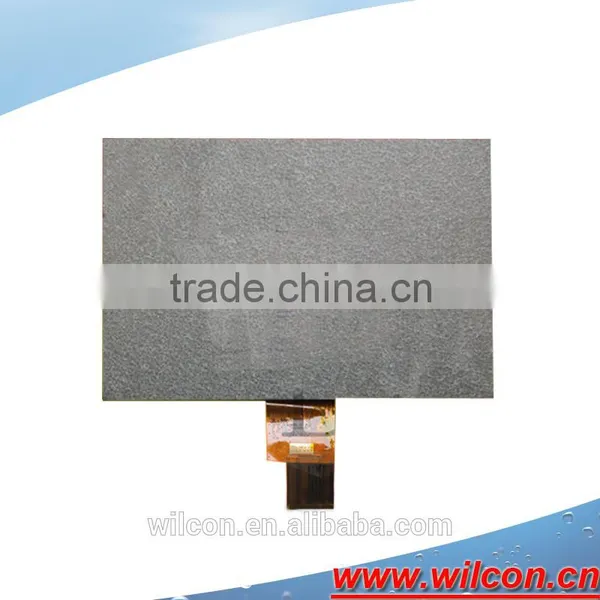

LCD PICS

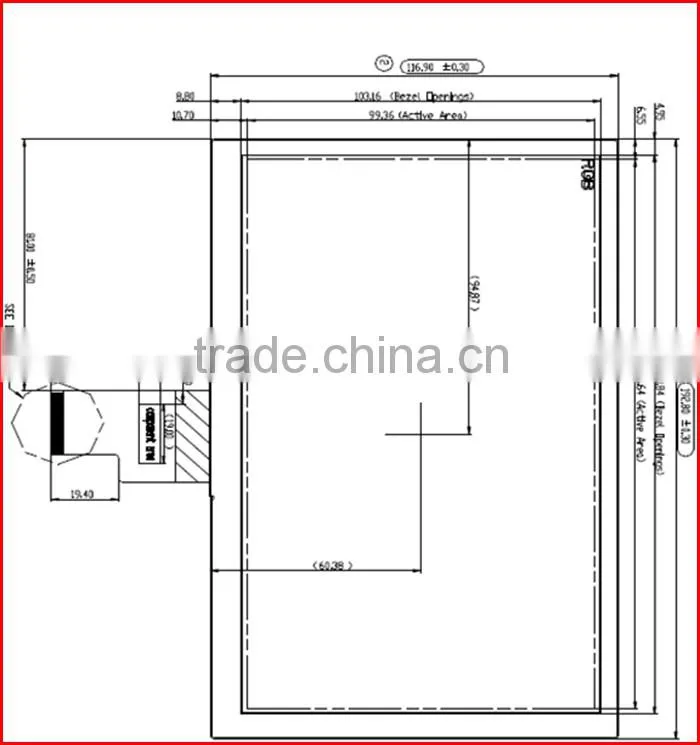

LCD structure
Packaging & Shipping
Our Services
Company Information
