8inch 700nits 1024*768 High Brightness Lcd Capacitive Touch Panel With LVDS Interface

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Wilcon
Model Number	SW080A-SV7-CTP		Type	Other, TFT, TFT

8.0inch TFT LCD module

LCD specification

Part 1:LCD parameters
1	Product name	8.0inch lcd module
2	Model number	SW080A-SV7-CTP
3	Size	8.0INCH
4	Type	TFT
5	Viewing angle	IPS
6	Display scale	4:3
7	Display mode	Normally black, Transmissive
8	Resolution	1024*768
9	Piexel pitch	0.05275*0.15825
10	Dimension	174.3135.54.8mm
11	Active area	162.05*121.54
12	Color	16.7M
13	Color arragement	RGB
14	Interface	LVDS
17	Response time	39ms
18	Contrast ratio	800:1
19	Brightness	700cd/m2
20	VDD	3.3V
21	Backlight	LED
22	Backlight color	White
23	LED lifetime	20000hours
24	Voltage for LED	18V
25	Current for LED	250mA
26	Consumption	/
27	Module weight	/
28	Drive IC	/
29	Interface connect type	connector type
30	Surface tratement	Hard coationg
31	Pin number	40PINS
32	Warranty	12 months
33	Packing material	Box
34	Shipment	ExpressAirSea

Part 2:Operation Speficifactions
1	Operature Temperature	-10----50℃ degrees
2	Storage Temperature	-20----60℃ degrees

Part 3:Touch panel
1	Touch	Capacitive touch panel

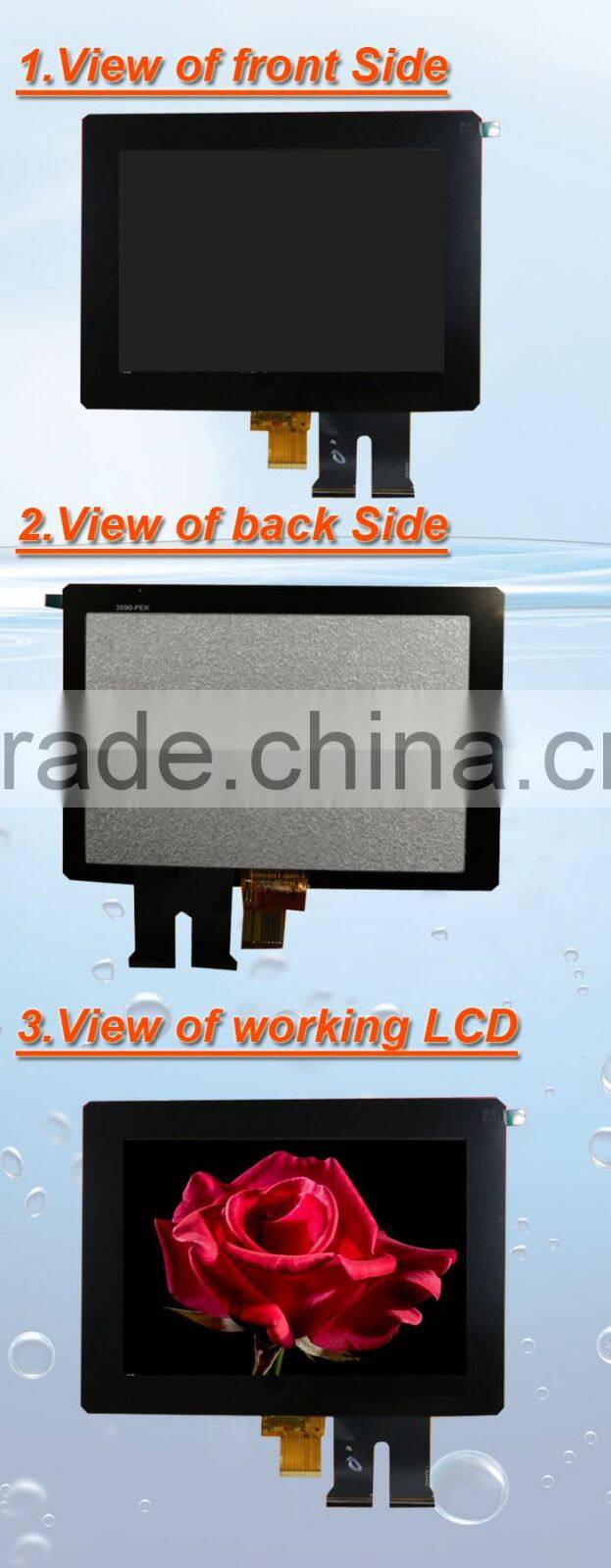

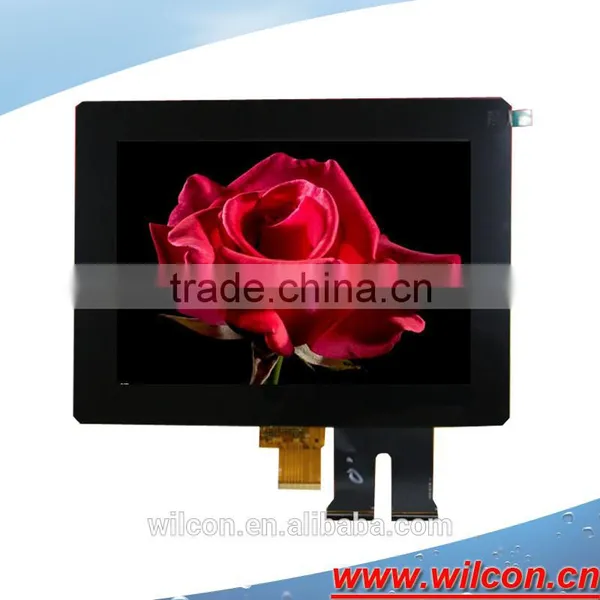

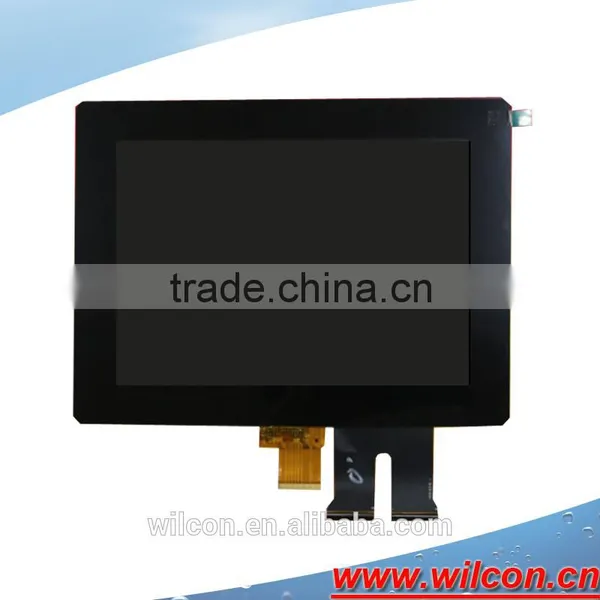

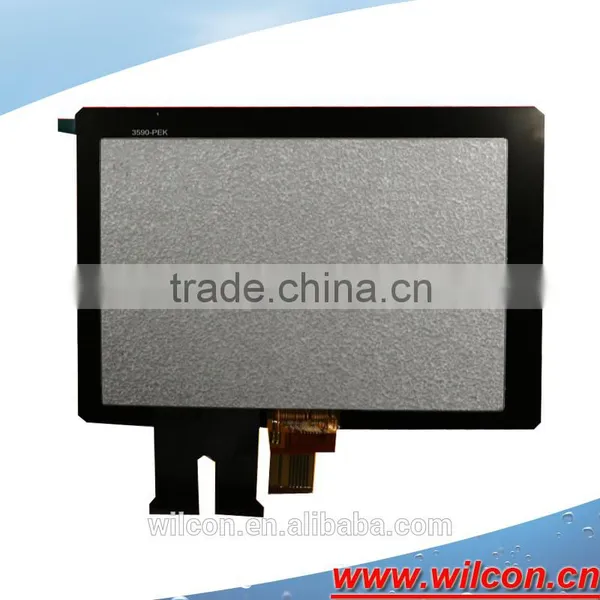

LCD PICS

LCD structure

CTP drawing
