2.4inch 240*320 ILI9341 controller IC MCU interface tft lcd display module
USD $0.1 - $99
/ Piece
1 Piece(Min.Order)
- Shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Wilcon | |
| Model Number | SW024N-SV300 | Type | Other, TFT, TFT |
Product Description
2.4inch tft lcd display module
LCD specification
| Part 1:LCD parameters | ||
| 1 | Product name | 2.4inch tft lcd display module |
| 2 | Model number | SW024N-SV300 |
| 3 | Size | 2.4INCH |
| 4 | Type | TFT |
| 5 | Viewing angle | 12:00 |
| 6 | Display scale | 4:3 |
| 7 | Display mode | Normally white,Transmissive |
| 8 | Resolution | 240*320 |
| 9 | Piexel pitch | 0.153*0.153 |
| 10 | Dimension | 42.72*60.35*2.3mm |
| 11 | Active area | 36.72*48.96 |
| 12 | Color | 262K |
| 13 | Color arragement | RGB |
| 14 | Interface | MCU |
| 17 | Response time | 30ms |
| 18 | Contrast ratio | 250:1 |
| 19 | Brightness | 300cd/m2 |
| 20 | VDD | 2.8V |
| 21 | Backlight | LED |
| 22 | Backlight color | White |
| 23 | LED lifetime | 20000hours |
| 24 | Voltage for LED | 3.2V |
| 25 | Current for LED | 60mA |
| 26 | Consumption | / |
| 27 | Module weight | / |
| 28 | Drive IC | / |
| 29 | Interface connect type | soldering type |
| 30 | Surface tratement | Hard coationg |
| 31 | Pin number | 37PINS |
| 32 | Warranty | 12 months |
| 33 | Packing material | Box |
| 34 | Shipment | Express*Air*Sea |
| Part 2:Operation Speficifactions of 2.4inch tft lcd screen | ||
| 1 | Operature Temperature | -20----70℃ degrees |
| 2 | Storage Temperature | -30----80℃ degrees |
| Part 3:Touch panel | ||
| 1 | Touch | RTP is available |
| Part 4:Lead time for 2.4inch tft lcd screen | ||
| 1 | Sample | 2 working days |
| 2 | Mass production | 2-4 weeks |

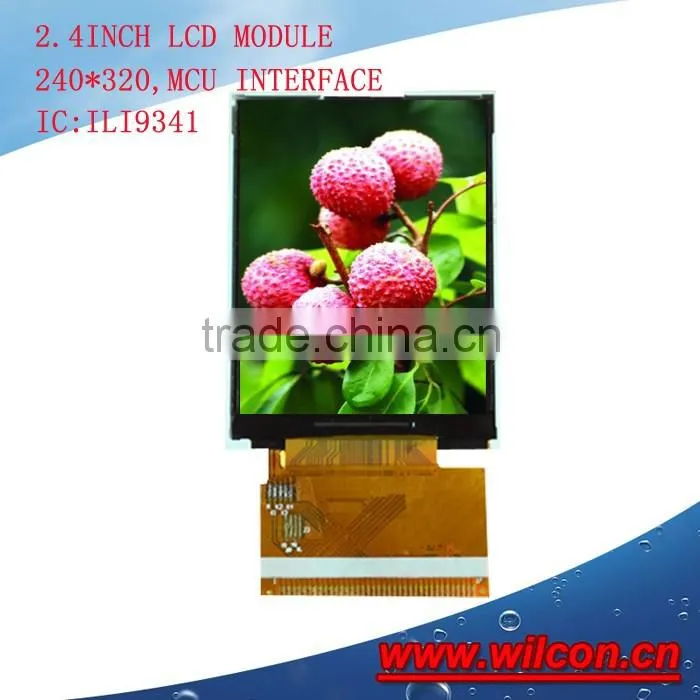

2.4inch tft lcd display module working pic

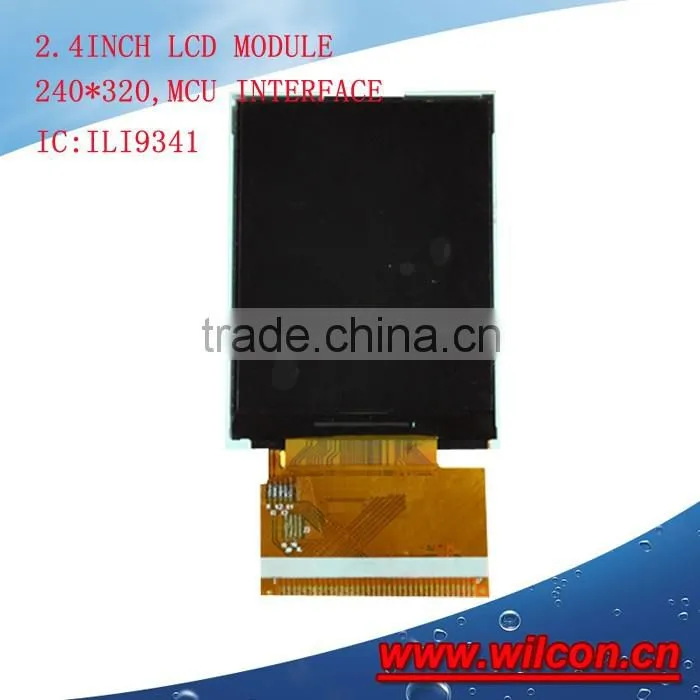

2.4inch tft lcd display module blank pic

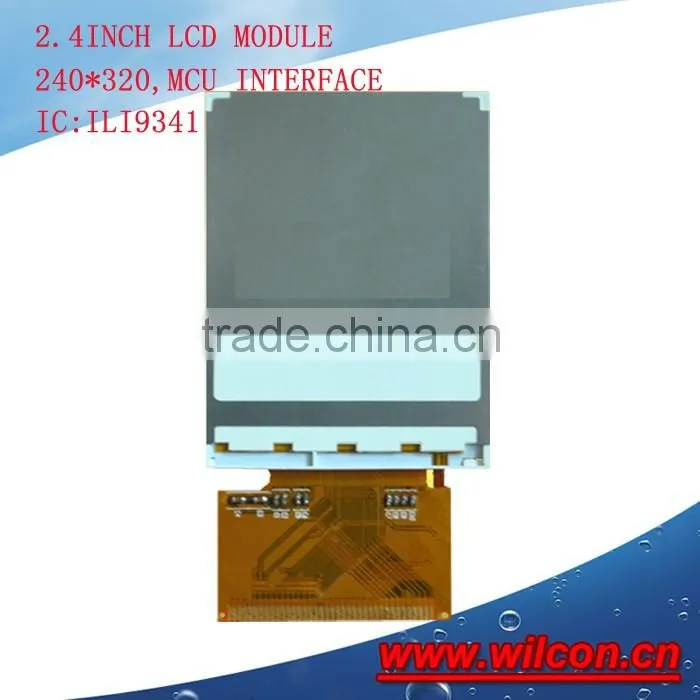

2.4inch tft lcd display module back pic
Packaging & Shipping
Our Services
If you are interested in 2.4inch tft lcd display module ,pls contact us for more information.
