Home > Products > TFT lcd module > 4.3inch 480*272 lvds interface lcd module
4.3inch 480*272 lvds interface lcd module
USD $0.1 - $99
/ Piece
1 Piece(Min.Order)
- 10000 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
-
negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
-
digital fire alarm installation module display, HTN segment display with blue led lcd panel
-
negative autoreclose circuit-breaker lcd display, segment module with blue led
-
charger negative character lcd display,white led ,battery segment small flexible display
-
character small charger lcd display ,custom battery display ,white led
-
segment positive temperature time clock lcd display,blue TN white backlight
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Wilcon | Model Number: | SW043N-SV1-L |
| Type: | Other, TFT, TFT |
Product Description
4.3inch LVDS interface lcd screen
LCD specification
| Part 1:LCD parameters | ||
| 1 | Product name | 4.3inch lvds interface lcd screen |
| 2 | Model number | SW043N-SV1-L |
| 3 | Size | 4.3INCH |
| 4 | Type | TFT |
| 5 | Viewing angle | 6:00 |
| 6 | Display scale | 16:9 |
| 7 | Display mode | Transmissive |
| 8 | Resolution | 480*272 |
| 9 | Piexel pitch | 0.066 (H) x 0.198 (V) |
| 10 | Dimension | 105.10*67.2*3.0 mm |
| 11 | Active area | 95.04*53.86mm |
| 12 | Color | 262K |
| 13 | Color arragement | RGB |
| 14 | Interface | LVDS |
| 17 | Response time | 10ms |
| 18 | Contrast ratio | 500:1 |
| 19 | Brightness | 300cd/m2 |
| 20 | VDD | 3.3V |
| 21 | Backlight | LED |
| 22 | Backlight color | White |
| 23 | LED lifetime | 20000hours |
| 24 | Voltage for LED | 25.6V |
| 25 | Current for LED | 20mA |
| 26 | Consumption | / |
| 27 | Module weight | |
| 28 | Drive IC | ILI6408B |
| 29 | Interface connect type | connector type |
| 30 | Surface tratement | Hard coationg |
| 31 | Pin number | 40PINS |
| 32 | Warranty | 12 months |
| 33 | Packing material | Box |
| 34 | Shipment | Express*Air*Sea |
| Part 2:Operation Speficifactions | ||
| 1 | Operature Temperature | -20----70℃ degrees |
| 2 | Storage Temperature | -30----80℃ degrees |
| Part 3:Touch panel | ||
| 1 | Touch | RTP ,CTP is available,depends on customer need |
| Part 4:Lead time | ||
| 1 | Sample | 2 working days |
| 2 | Mass production | 2-4 weeks |
.

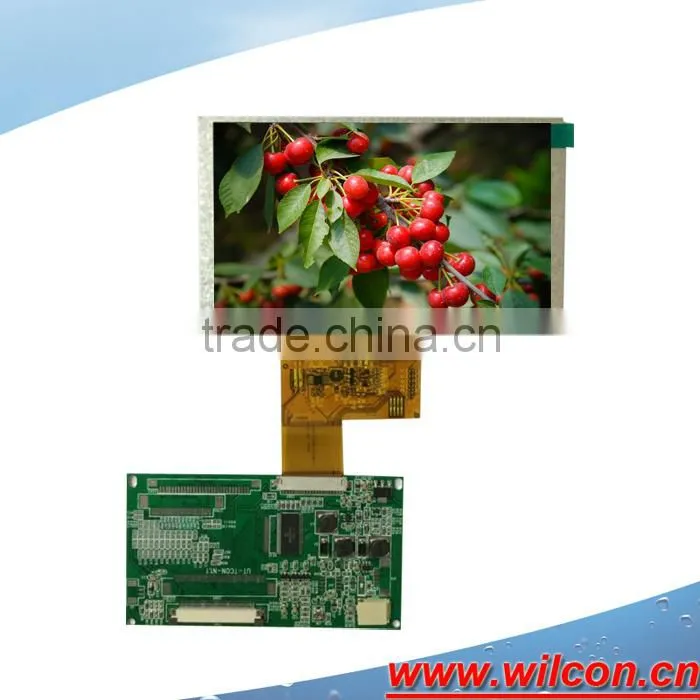

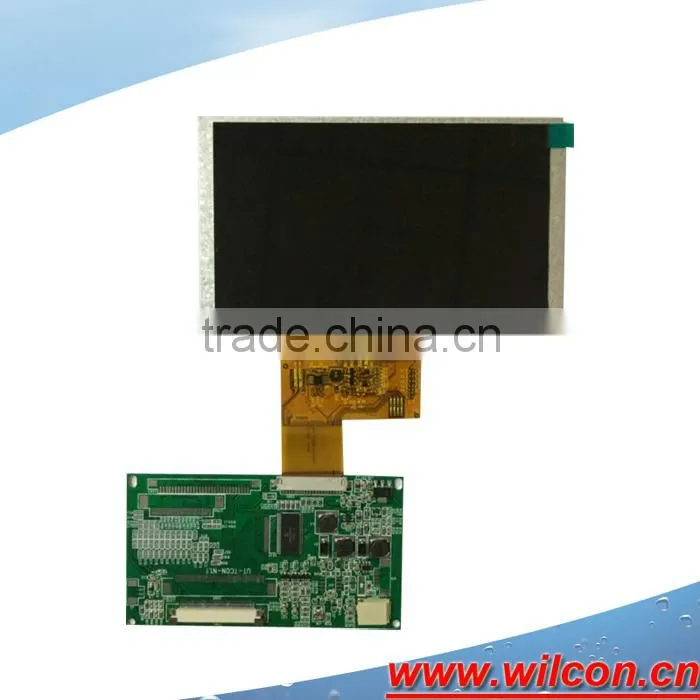

4.3INCH LCD with LVDS board PICS
LCD structure

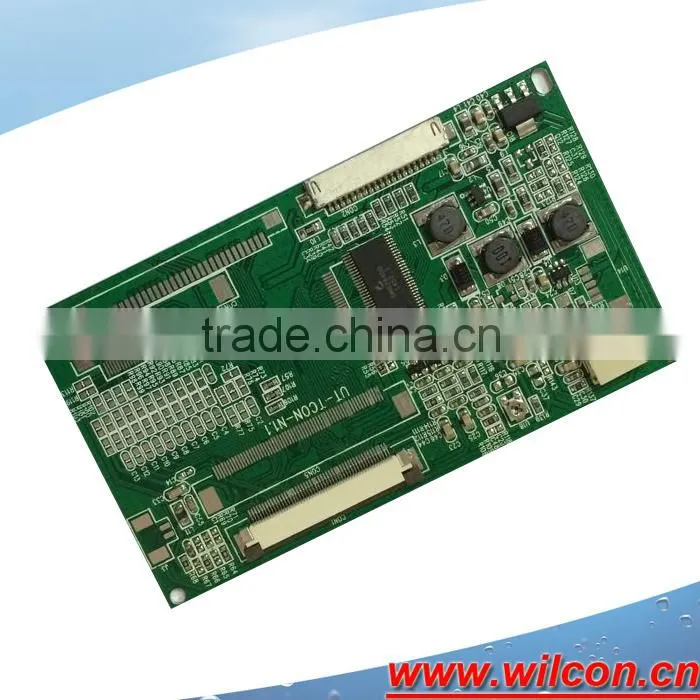

LVDS board structure
