Home > Consumer Electronics > Display & Accessories > LCD Module > 10.1inch Lvds 1000nits 1280*800 Sunlight Readable Full Viewing Angle Dispay With USB Capacitive Touch
10.1inch Lvds 1000nits 1280*800 Sunlight Readable Full Viewing Angle Dispay With USB Capacitive Touch
US$ 0.1 - 99
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Wilcon
Model Number:
SW101H-SV1280800-CTP(USB interface)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10.1inch Lvds Interface 1280*800 High Brightness IPS Panel Touch Screen With IIC CTPUS$ 0.1 - 99MOQ: 1 Piece -
10.1inch 1000nits Lvds Intenrface 1280*800 IPS Tft Lcd Display Read Under SunshineUS$ 0.1 - 99MOQ: 1 Piece
-
2.8inch 240*320 ILI9341 700cd/m2 Sunlight Readable Lcd Module ScreenNegotiableMOQ: 1 Piece
-
4.0inch 480*800 Support RGB/MCU/SPI Muti Interface IPS Tft Lcd PanelUS$ 0.1 - 99MOQ: 1 Piece
-
4.0inch 480*800 Support RGB/MCU/SPI Muti Interface IPS Tft Lcd ModuleUS$ 0.1 - 99MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Wilcon
Model Number
SW101H-SV1280800-CTP(USB interface)
Type
Other, TFT, TFT
10.1inch high brightness IPS lcd touch screen
LCD specification
| Part 1:LCD parameters | ||
| 1 | Product name | 10.1inch high brightness IPS lcd touch screen |
| 2 | Model number | SW101H-SV1280800-CTP(USB interface) |
| 3 | Size | 10.1INCH |
| 4 | Type | TFT |
| 5 | Viewing angle | IPS |
| 6 | Display scale | 16:10 |
| 7 | Display mode | Normally white, Transmissive |
| 8 | Resolution | 1280*800 |
| 9 | Piexel pitch | 0.0565(W)*0.1695(H) |
| 10 | Dimension | 222.5*152.5*7.4MM |
| 11 | Active area | 216.96*135.6 |
| 12 | Color | 16.7M |
| 13 | Color arragement | RGB |
| 14 | Interface | LVDS |
| 17 | Response time | 35ms |
| 18 | Contrast ratio | 800:1 |
| 19 | Brightness | 1000cd/m2 |
| 20 | VDD | 3V |
| 21 | Backlight | LED |
| 22 | Backlight color | White |
| 23 | LED lifetime | 20000hours |
| 24 | Voltage for LED | 9V |
| 25 | Current for LED | 480mA |
| 26 | Consumption | 4.32W |
| 27 | Module weight | / |
| 28 | Drive IC | / |
| 29 | Interface connect type | connector type |
| 30 | Surface tratement | Anti glare |
| 31 | Pin number | 40PINS |
| 32 | Warranty | 12 months |
| 33 | Packing material | Box |
| 34 | Shipment | Express*Air*Sea |
| Part 2:Operation Speficifactions | ||
| 1 | Operature Temperature | 0----50℃ degrees |
| 2 | Storage Temperature | -20----60℃ degrees |
| Part 3:Touch panel | ||
| 1 | Touch | CTP(USB interface) |
| Part 4:Lead time | ||
| 1 | Sample | 2 working days |
| 2 | Mass production | 2-4 weeks |
.

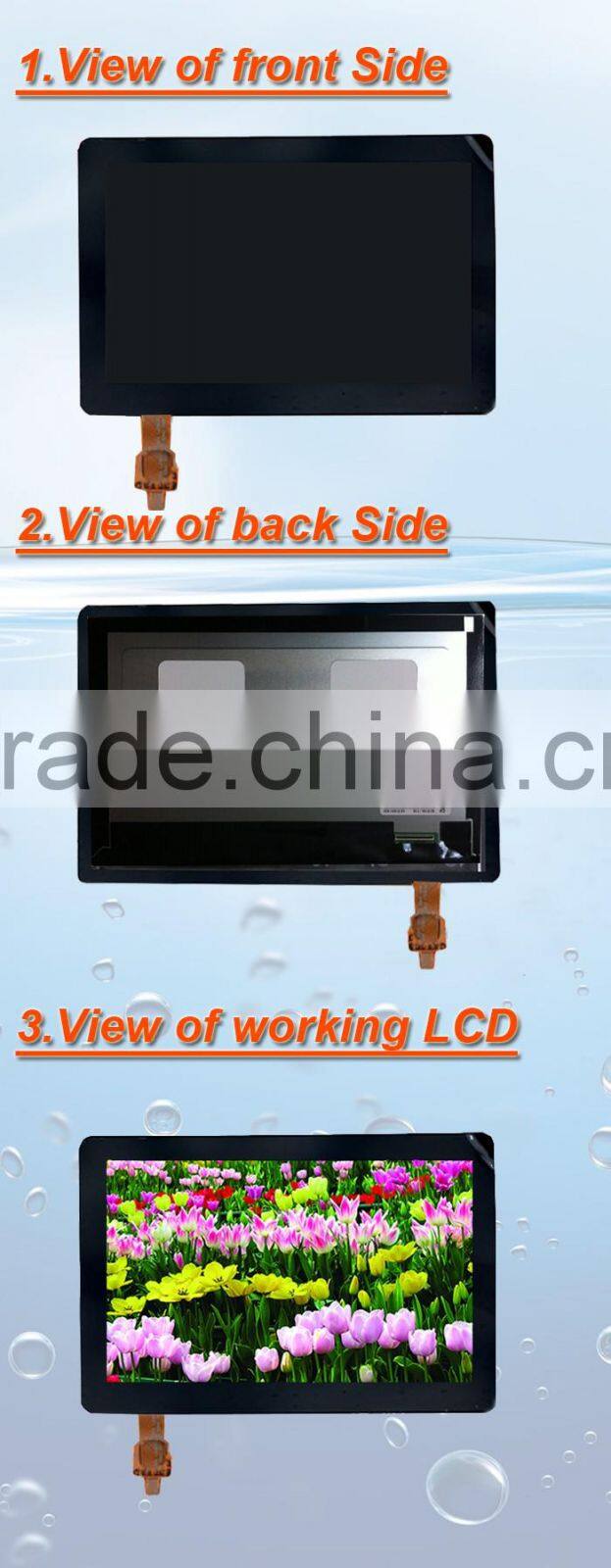

LCD PICS
LCD structure

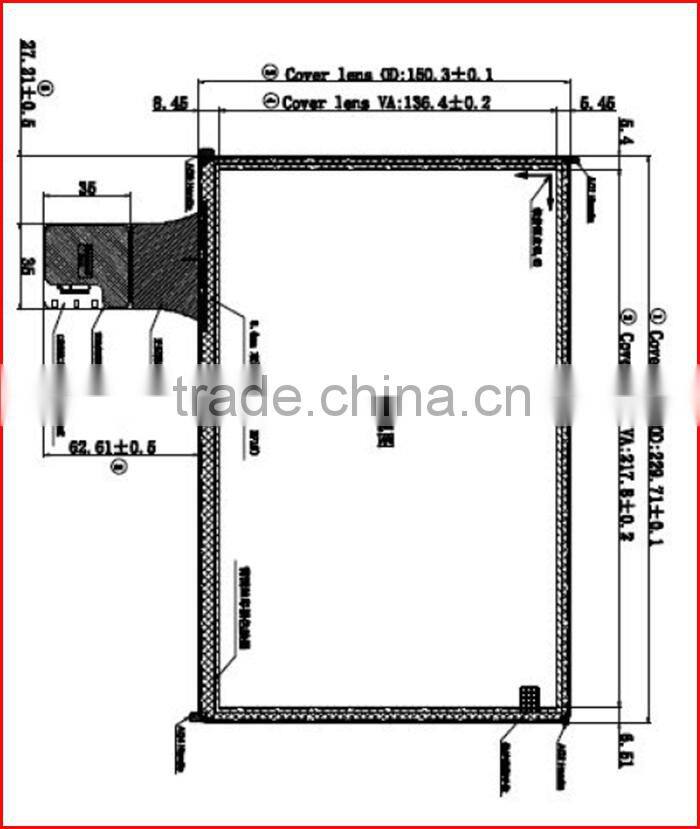

CTP structure
