Home > Consumer Electronics > Display & Accessories > LCD Module > 4.0inch 480*800 Support RGB/MCU/SPI Muti Interface IPS Tft Lcd Panel
4.0inch 480*800 Support RGB/MCU/SPI Muti Interface IPS Tft Lcd Panel
US$ 0.1 - 99
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Wilcon
Model Number:
SW040A-SV03
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4.0inch 480*800 Support RGB/MCU/SPI Muti Interface IPS Tft Lcd ModuleUS$ 0.1 - 99MOQ: 1 Piece -
4.8inch 540*960 MIPI Interface560cd/m2 Sunlight Readable Tft Lcd Screen for DisplayUS$ 0.1 - 99MOQ: 1 Piece
-
4.8inch 540*960 MIPI Interface 560cd/m2 Outdoor IPS Display Screen PanelUS$ 0.1 - 99MOQ: 1 Piece
-
2.4inch 240*320 ILI9341 Controller IC MCU Interface Tft Lcd Screen DisplayUS$ 0.1 - 99MOQ: 1 Piece
-
2.4inch 240*320 ILI9341 Controller IC MCU Interface Tft Lcd Screen ModuleUS$ 0.1 - 99MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Wilcon
Model Number
SW040A-SV03
Type
Other, TFT, TFT
4.0inch RGB/MCU/SPI muti interface IPS tft lcd display
LCD specification
| Part 1:LCD parameters | ||
| 1 | Product name | 4.0inchRGB/MCU/SPI muti interface IPS tft lcd display |
| 2 | Model number | SW040A-SV03 |
| 3 | Size | 4.0INCH |
| 4 | Type | TFT |
| 5 | Viewing angle | IPS |
| 6 | Display scale | 5:3 |
| 7 | Display mode | Transmissive |
| 8 | Resolution | 480*800 |
| 9 | Piexel pitch | / |
| 10 | Dimension | 57.14*96.85*2.0MM |
| 11 | Active area | 51.84*86.40 |
| 12 | Color | 262K |
| 13 | Color arragement | RGB |
| 14 | Interface | RGB/MCU/SPI |
| 17 | Response time | 16ms |
| 18 | Contrast ratio | 700:1 |
| 19 | Brightness | 250cd/m2 |
| 20 | VDD | 2.8V |
| 21 | Backlight | LED |
| 22 | Backlight color | White |
| 23 | LED lifetime | 20000hours |
| 24 | Voltage for LED | 25.6V |
| 25 | Current for LED | 20mA |
| 26 | Consumption | / |
| 27 | Module weight | / |
| 28 | Drive IC | ILI9806G |
| 29 | Interface connect type | connector type |
| 30 | Surface tratement | Hard coationg |
| 31 | Pin number | 50PINS |
| 32 | Warranty | 12 months |
| 33 | Packing material | Box |
| 34 | Shipment | Express*Air*Sea |
| Part 2:Operation Speficifactions | ||
| 1 | Operature Temperature | -10----60℃ degrees |
| 2 | Storage Temperature | -20----70℃ degrees |
| Part 3:Touch panel | ||
| 1 | Touch | RTP ,CTP is available,depends on customer need |
| Part 4:Lead time | ||
| 1 | Sample | 2 working days |
| 2 | Mass production | 2-4 weeks |
.

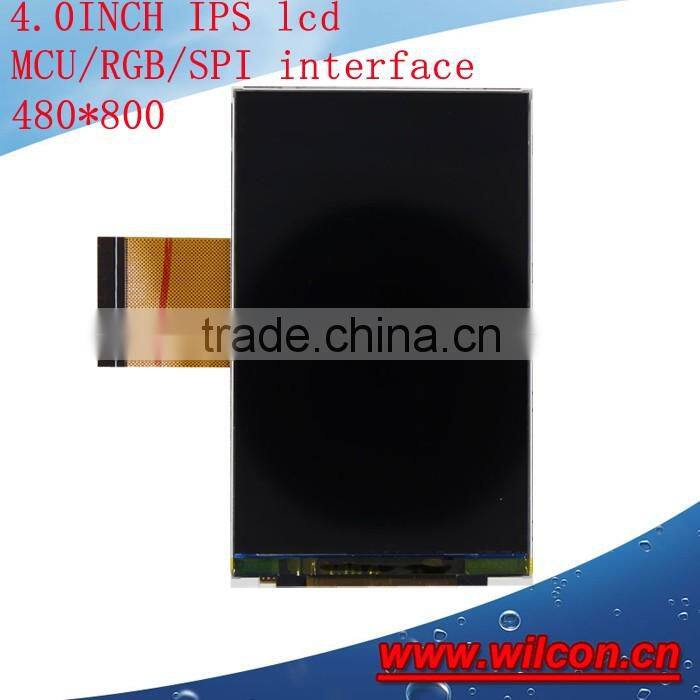

LCD fron pic

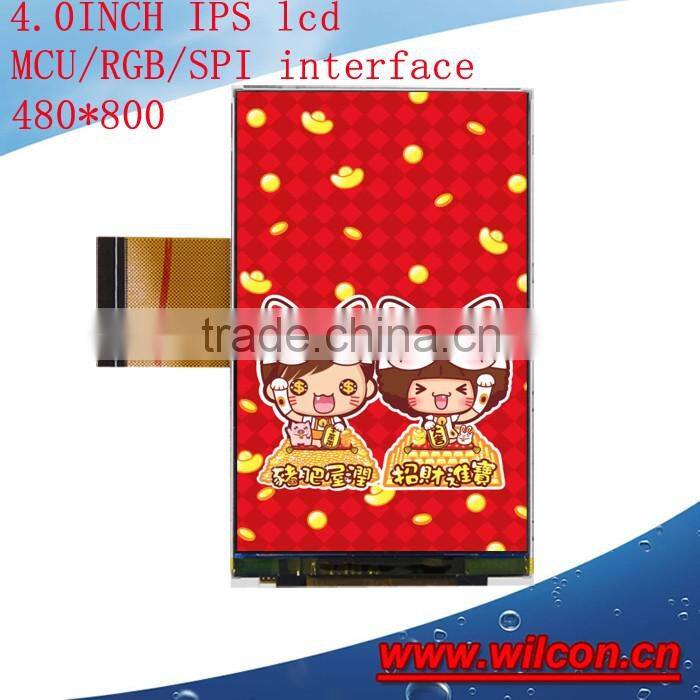

LCD working pic

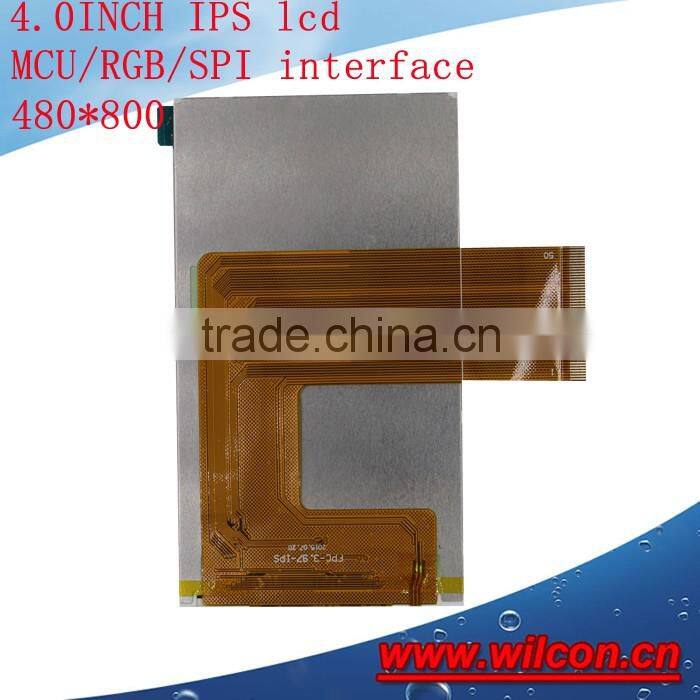

LCD back pic
LCD structure
