Home > Consumer Electronics > Display & Accessories > LCD Module > 10.1inch Lvds 350nits 1280*800 IPS Screen Touch Lcd Panelwith I2C Interface CTP
10.1inch Lvds 350nits 1280*800 IPS Screen Touch Lcd Panelwith I2C Interface CTP
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Wilcon
Model Number:
SW101-SVIA-01G-CTP(I2C)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10.1inch 350nits 1280*800 Tft IPS Lcd Display Screen With Lvds InterfaceNegotiableMOQ: 1 Piece -
10.1inch 1280*800 Lvds IPS Display Capacitive Touch Module With I2C Interface CTPNegotiableMOQ: 1 Piece
-
10.1inch 1280*800 Lvds IPS Display Capacitive Touch Panel With USB Interface CTPNegotiableMOQ: 1 Piece
-
10.1inch 1280*800 Lvds Interface IPS Lcd Panel Screen With 280nitsNegotiableMOQ: 1 Piece
-
8inch 1024*768 350nits Lvds Interface IPS Display Capacitive Touch ScreenNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Wilcon
Model Number
SW101-SVIA-01G-CTP(I2C)
Type
Other, TFT, TFT
10.1inch IPS screen touch lcd
LCD specification
| Part 1:LCD parameters | ||
| 1 | Product name | 10.1inch lcd module |
| 2 | Model number | SW101-SVIA-01G-CTP(I2C interface) |
| 3 | Size | 10.1INCH |
| 4 | Type | TFT |
| 5 | Viewing angle | IPS |
| 6 | Display scale | 16:10 |
| 7 | Display mode | Normally white, Transmissive |
| 8 | Resolution | 1280*800 |
| 9 | Piexel pitch | 0.0565(W)*0.1695(H) |
| 10 | Dimension | 229.46*149.1*4.2mm |
| 11 | Active area | 216.96*135.6 |
| 12 | Color | 16.7M |
| 13 | Color arragement | RGB |
| 14 | Interface | LVDS |
| 17 | Response time | 35ms |
| 18 | Contrast ratio | 800:1 |
| 19 | Brightness | 350cd/m2 |
| 20 | VDD | 2.5V |
| 21 | Backlight | LED |
| 22 | Backlight color | White |
| 23 | LED lifetime | 20000hours |
| 24 | Voltage for LED | 9.3V |
| 25 | Current for LED | 260mA |
| 26 | Consumption | 3.57W |
| 27 | Module weight | / |
| 28 | Drive IC | / |
| 29 | Interface connect type | connector type |
| 30 | Surface tratement | Anti glare |
| 31 | Pin number | 40PINS |
| 32 | Warranty | 12 months |
| 33 | Packing material | Box |
| 34 | Shipment | Express*Air*Sea |
| Part 2:Operation Speficifactions | ||
| 1 | Operature Temperature | 0----50℃ degrees |
| 2 | Storage Temperature | -20----60℃ degrees |
| Part 3:Touch panel | ||
| 1 | Touch | CTP (I2C interface) |
| Part 4:Lead time | ||
| 1 | Sample | 2 working days |
| 2 | Mass production | 2-4 weeks |
.

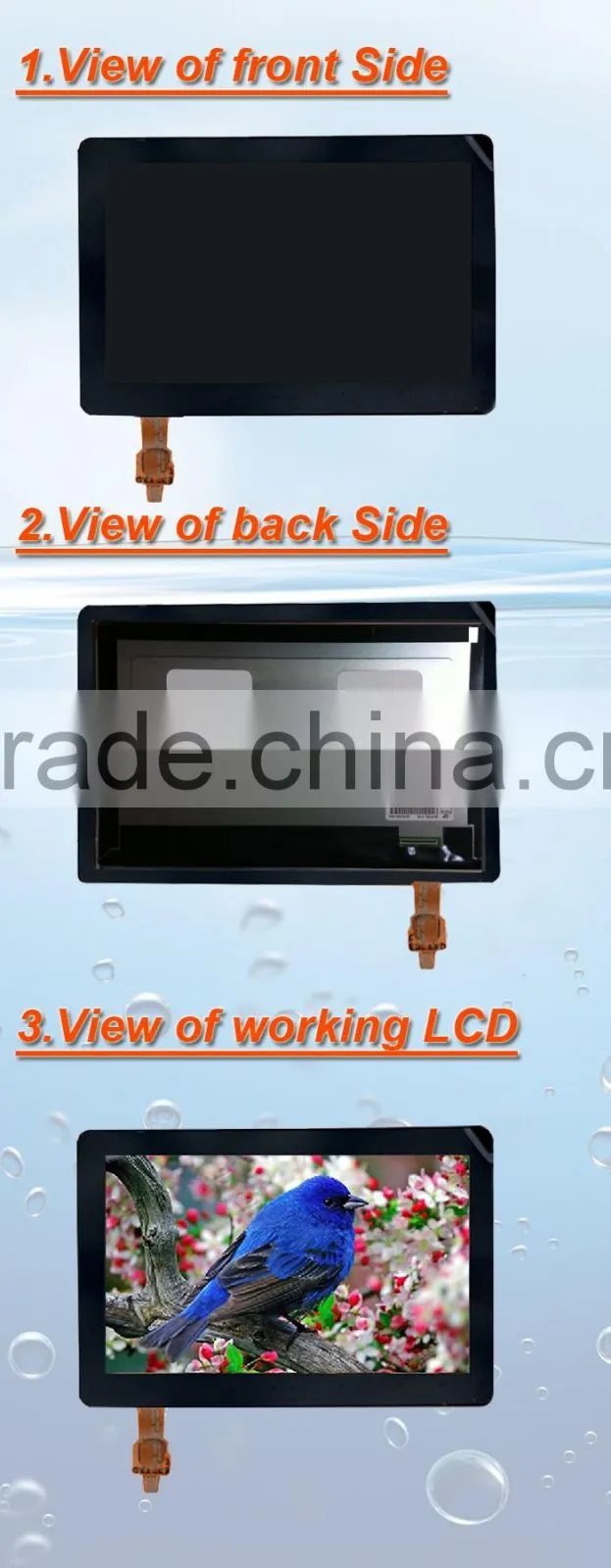

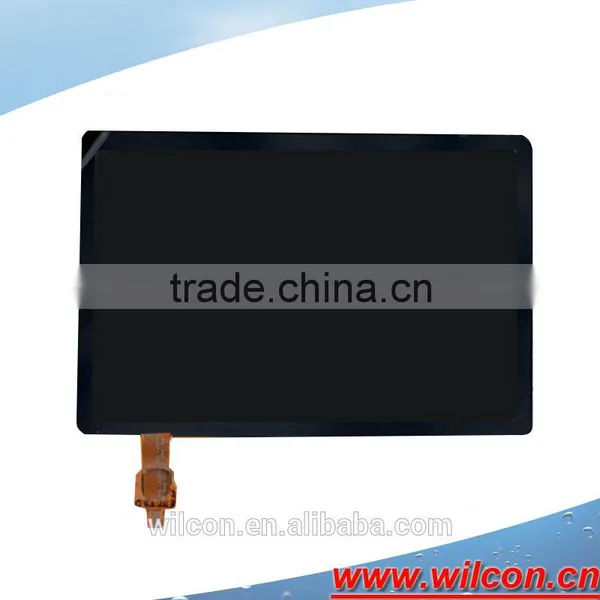

LCD PICS

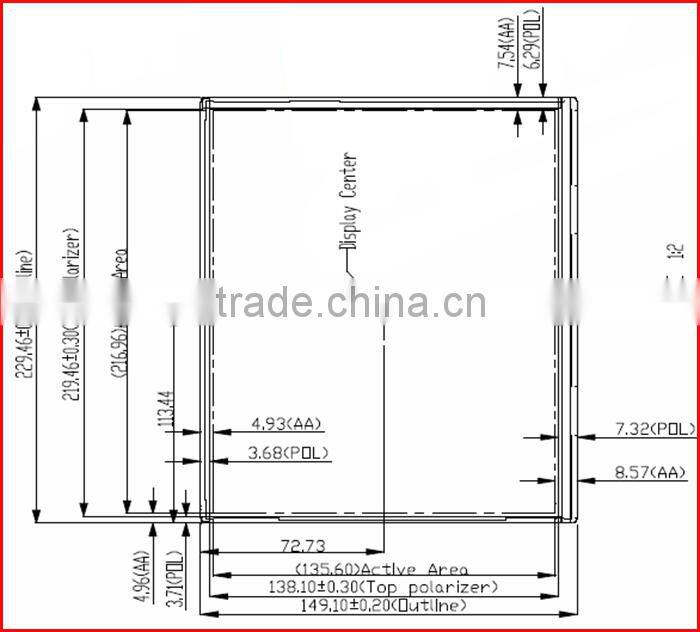

LCD structure

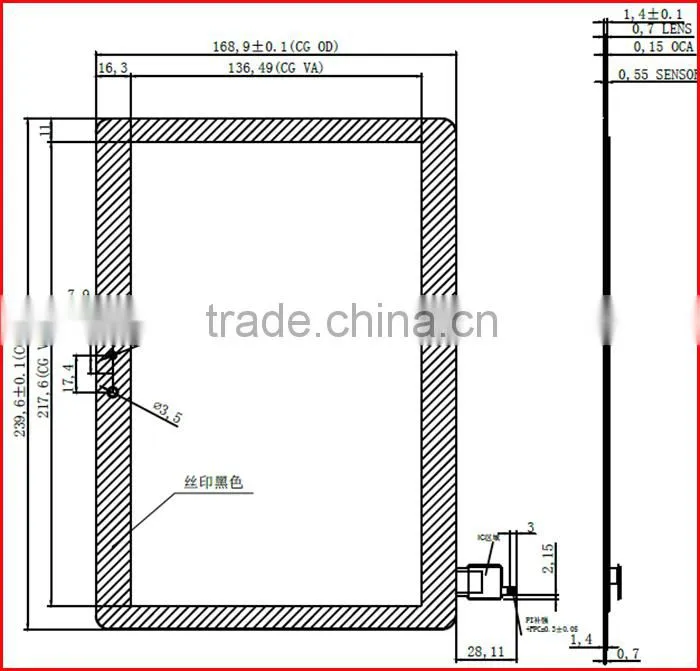

CTP structure
