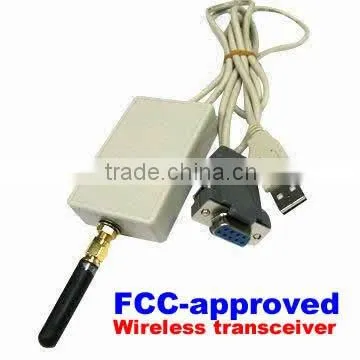

FCC-approved RF Data Transceiver, 433Mhz RF Module

FCC-approved RF Data Transceiver, 433Mhz RF Module thumbnail-1
FCC-approved RF Data Transceiver, 433Mhz RF Module thumbnail-2
FCC-approved RF Data Transceiver, 433Mhz RF Module photo-1
FCC-approved RF Data Transceiver, 433Mhz RF Module photo-2
US$ 20 - 30 MOQ: 2 Units
Key Specifications
Get Latest Price
Brand Name:
Yishi
Model Number:
YS-C10F
Use:
Universal
Contact Supplier Request Quote Chat Now
Shenzhen Yishi Electronic Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Yishi
Model Number YS-C10F
Use Universal
Place of Origin Guangdong, China

Specifications

CC1101 based RF module for serial data to wireless

S-C10F RF module

RF power: ≤50mW/17dBm

Receiving current: ≤20mA
Transmitting current: ≤40mA
Power supply: 3.3 to 5.5V DC
Receiving sensitivity: -108dBm (at 9,600bps)and -112dBm (at 1,200bps)
Dimension: 40 x 24 x 6mm (without antenna port)
Products main features:<ul>
Up to 115.2kbps high data rate, low power consumption
Carrier frequency: 433MHz or ISM others optional
Interface: RS-232/RS-485/TTL optional
Chipcon CC1101 chip-set based

Yishi wireless data modules are designed for the professional  data collection systems, provides RF link radio communication between two points up to 10km. The module works on ISM frequency band, half duplex integrated receiving and transmitting. Users could use  RS-232, RS-485 and UART/TTL level interface port for direct connection with PC, RS485 devices, monolithic processors and other UART components kind of applications.FCC-approved RF data transceiver, 433Mhz RF module

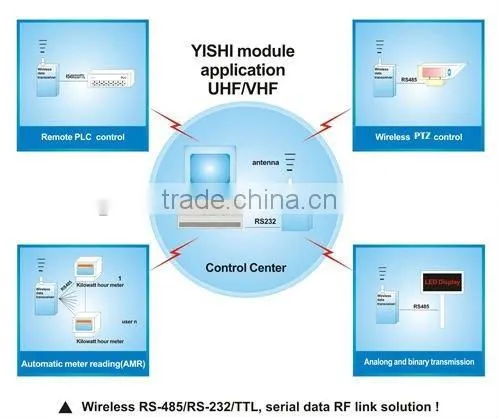

Applications areas:
  * Automatic meter reading (AMR) and home automation;
  * Supervisory control and data acquisition (SCADA);
  * Remote control,industry data collection;
  * Monitoring of remote systems
  * Production reporting of active systems
  * Wireless remote control alarm, Wireless sensor;
  * Sports training & competition;
  * Wireless POS, PAD, wireless smart terminal;
  * Electronic bus station and intelligent traffic;
  * Wireless electronic display screen and queuing machin
  * Point to multi-point wireless network.
