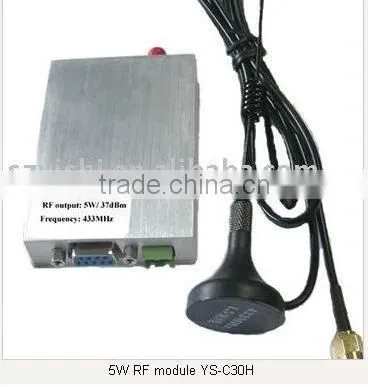

Help Center5W UHF Data Radio YS-C30H RF Serial Module
Related Products
-
10mW 500m Wireless Data Transceiver Module, UHF 410-915Mhz RS232/RS485/TTL CC1020 RF ModuleUS$ 20 - 30MOQ: 2 Units -
500mw rf Module Embedded Data Transceiver YS-C20LUS$ 30 - 40MOQ: 2 Units
-
Rs232 Cable Wiring Replacement 5W Wireless Serial Data TransmitterUS$ 100 - 120MOQ: 2 Units
-
AV to VGA Video Converter Box, High Resolution: 1920 x 1200NegotiableMOQ: 1
-
433mhz Wireless Data Transmitter CC1101 RFmoduleNegotiableMOQ: 2 Units
Specifications

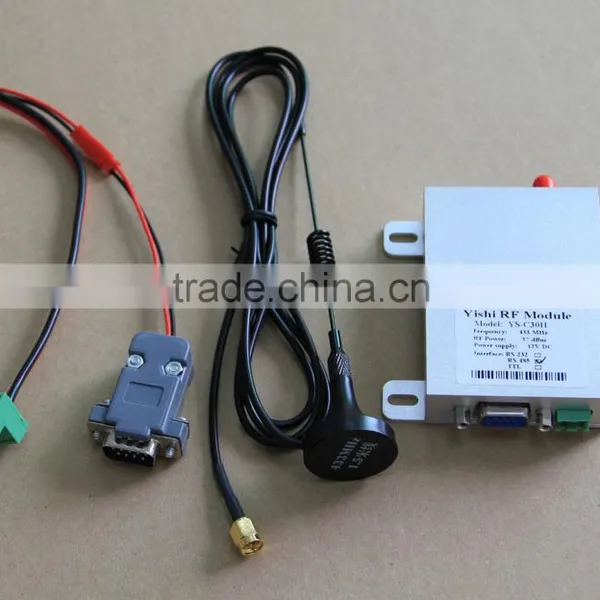

wireless data radio, 5W output wireless data transceiver for RS232/RS485/TTL to wrieless. 10km rangeYS-C30H 5W 433Mhz Data raido For seiral to wireless
Specifications
* RF power: ≤5W /37dBm;
* Receiving current: <30mA;
* Transmitting current: <1.5A;
* Sleep current: <1mA
* Power supply: DC 12V;
* Size: 85mm×58mm×16mm (without antenna port).
High speed, Industrial design standard with high reliability and stability!
1. Products Main Features
* Interface: RS-232/ RS-485/ TTL/USB optional;
* Multi-channels: 8 channels, expandable for 16/32 channels;
* Baud rate in air: 1200/2400/4800/9600/19200bps, set before delivery;
* Transparent data transmission: What has been received is exactly what has been transmitted, suitable for any standard or non-standard user protocols;
*SMT techniques, Aluminum alloy crust with good thermal and Shielding Performance
* Integrated power amplifier and TCXO components, Watchdog strengthen reliability
* Interface format: 8N1/8E1/801 user-defined, or customization for other format interface;
* Modulation: GFSK. Based on the Gaussian Frequency Shift Keying (GFSK) modulation, High anti-interference and Low BER (Bit error Rate);
* Half duplex: Integration of receiver and transmitter,auto change for receiving and sending;
* Low power consumption and sleep function;
* Widen Temperature: -35 ~ +75 (-31~167 F);
* Working humidity: 10%~90% relative humidity without condensation;
* Impedance50Ω (SMA antenna port, multiple antenna options available);
* Complying with EN 300220 and ARIB STD-T67.
2. Application areas
* Automatic meter reading(AMR);
* Environment monitor system;
* Wireless electronic display screen;
* Wireless smart terminal: POS, PDA, PTZ;
* RS-485 wire multi-drop system changeover wireless system;
* Industrial Automation, PLC Control, Wireless Data Acquisition, SCADA;
* Range: ≤8Km (BER=10-3@9600bps, when antenna is 2m above ground in open area),
≤12Km (BER=10-3@1200bps, when antenna is 2m above ground in open area);
