0.5W UHF Wireless RF data transmitter (YS-C20L) 433Mhz RF module
USD $40 - $40
/ Piece
2 Pieces(Min.Order)
- shenzhen
- Credit Card PayPal
You May Like
-
YS-C30M 5km 433Mhz data transceiver, vhf 2W RS232 RS485 TTL RF Modules
-
RF Data Modem, 433Mhz, 868Mhz, 915Mhz, 300M-12Km Wireless transmitter
-
300m 20mW RF modules data transceiver module, 433MHz USB RS232 RS485 TTL RF Modules
-
868Mhz RF module, 2Km wireless data transmitter and receiver
-
433Mhz USB RF module 50mW wireless transceiver YS-C10U
-
4ch super regeneration PT2272 receiver board YS-CZS7
Product Details
| Place of Origin | Guangdong, China | Brand Name | Yishi | |
| Model Number | YS-C20L 433M |
Product Description

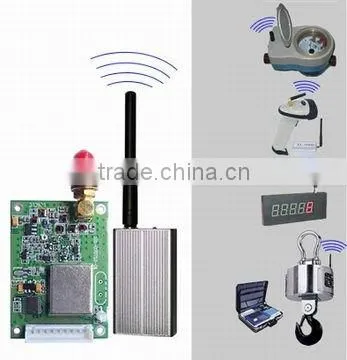

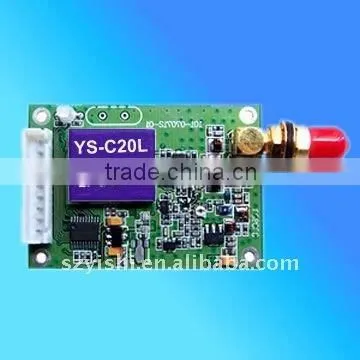

YS-C20L 0.5W RF module
Product Description
1.Main Features:
* Carrier frequency: 433 MHz, 450MHz, 868MHz, 915MHz or ISM others;
* Provide rich interface:RS-232/ TTL/ RS-485;
* 8 channels, expandable for 16/32 channels according to requirements of customers;
* Baud rate: 1200/2400/4800/9600/19200bps;
* Interface format: 8N1/8E1 user-defined, or customization for other format interface;
* Integration of receiving and transmitting and half duplex;
* Low power consumption and sleep function;
* Temperature: -35~+75 C;
* Impedance: 50 Ohm(SMA antenna port, multiple antenna options available);
* Complying with EN 300220 and ARIB STD-T67.
2.Application areas:
* Automatic meter reading (AMR) and home automation
* Supervisory control and data acquisition (SCADA)
* Remote control,industry data collection;
* Monitoring of remote systems
* Production reporting of active systems
* Wireless remote control alarm of power supply and fan equipment in the computer room;
* Sports training & competition;
* Wireless POS, PAD wireless smart terminal;
* Electronic bus station and intelligent traffic;
* Point to multi-point wireless network,data collection system.
* Supervisory control and data acquisition (SCADA)
* Remote control,industry data collection;
* Monitoring of remote systems
* Production reporting of active systems
* Wireless remote control alarm of power supply and fan equipment in the computer room;
* Sports training & competition;
* Wireless POS, PAD wireless smart terminal;
* Electronic bus station and intelligent traffic;
* Point to multi-point wireless network,data collection system.
3.Specifications:
* Power supply: DC 5V;
* RF power: 500mW;
* Receiving current: <25mA;
* Transmitting current: <400mA;
* Sleep current: <20uA;
*Transmission distance:
2Km (BER=10-3@9600bps);
3Km (BER=10-3@1200bps);
2Km (BER=10-3@9600bps);
3Km (BER=10-3@1200bps);
* Size: 53mm*38mm*10mm (without antenna port ).
4.Interface definition:
Pin No. | Pin name | Description | Level | Remands |
1 | GND | Grounding of power supply | ||
2 | Vcc | Power supply DC | 5V | |
3 | RXD/TTL | Serial data receiving end | TTL | |
4 | TXD/TTL | Serial data transmitting end | TTL | |
5 | DGND | Digital grounding | ||
6 | A(TXD) | A of RS-485 or TXD of RS-232 | ||
7 | B(RXD) | B of RS-485 RXD of RS-232 | ||
8 | SLEEP | Sleep control (input) | TTL | Low level sleep |
9 | RESET | Reset (input) | TTL | Negative impulse reset |
5.Setting of channel, interface, and data format
The user can change or view the module's interface baud rate, channel and address code.
Parameter setting or reading as per the testing software "YSPRG.EXE" in the CD (in products box) .
Channel No. | Frequency | Channel No. | Frequency | Channel No. | Frequency | Channel No. | Frequency |
1 | 429.0325MHZ | 2 | 430.0325MHZ | 3 | 431.0325MHZ | 4 | 432.0325MHZ |
5 | 433.0325MHZ | 6 | 434.0325MHZ | 7 | 435.0325MHZ | 8 | 436.0325MHZ |
NOTE: Generally the module in receiving state, if the IDLE pin continuously connect low level (>200millisecond), the module will be in sleep state, at the same time the module can not receive or transmit any data, only when the IDLE pin hang or in the state of high level (VH<3.5V), the module can be in receiving state again.
