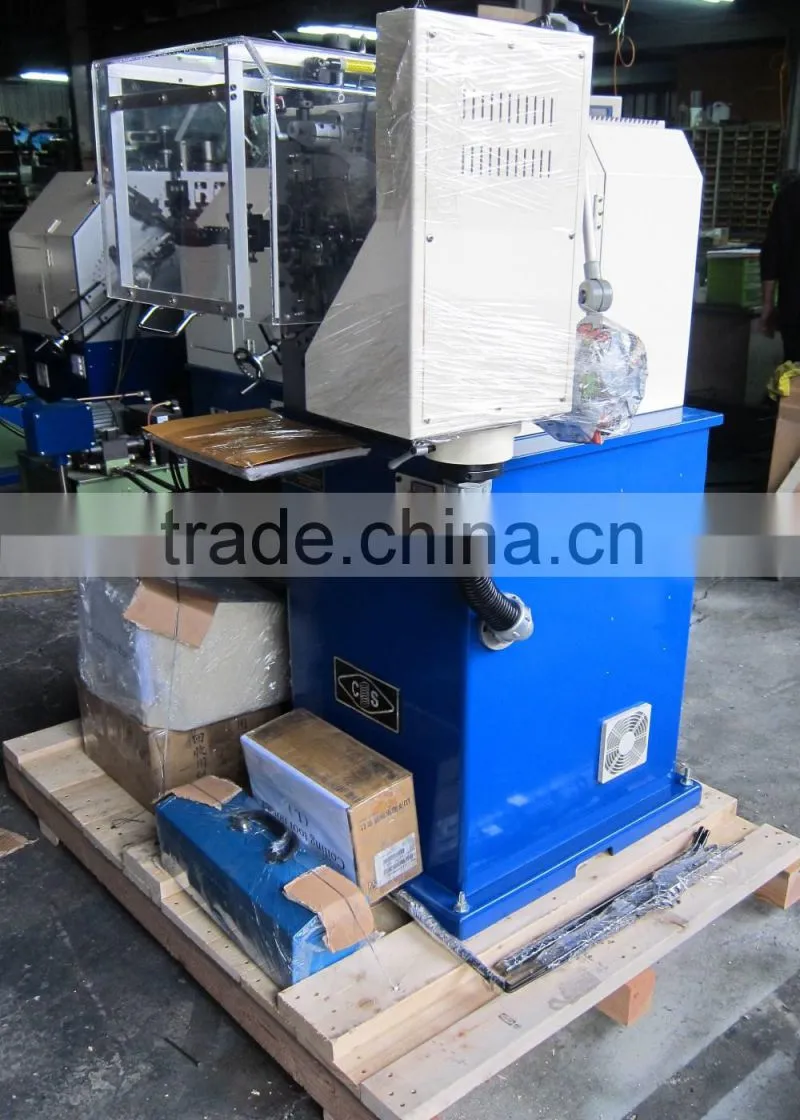

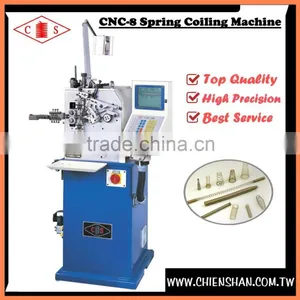

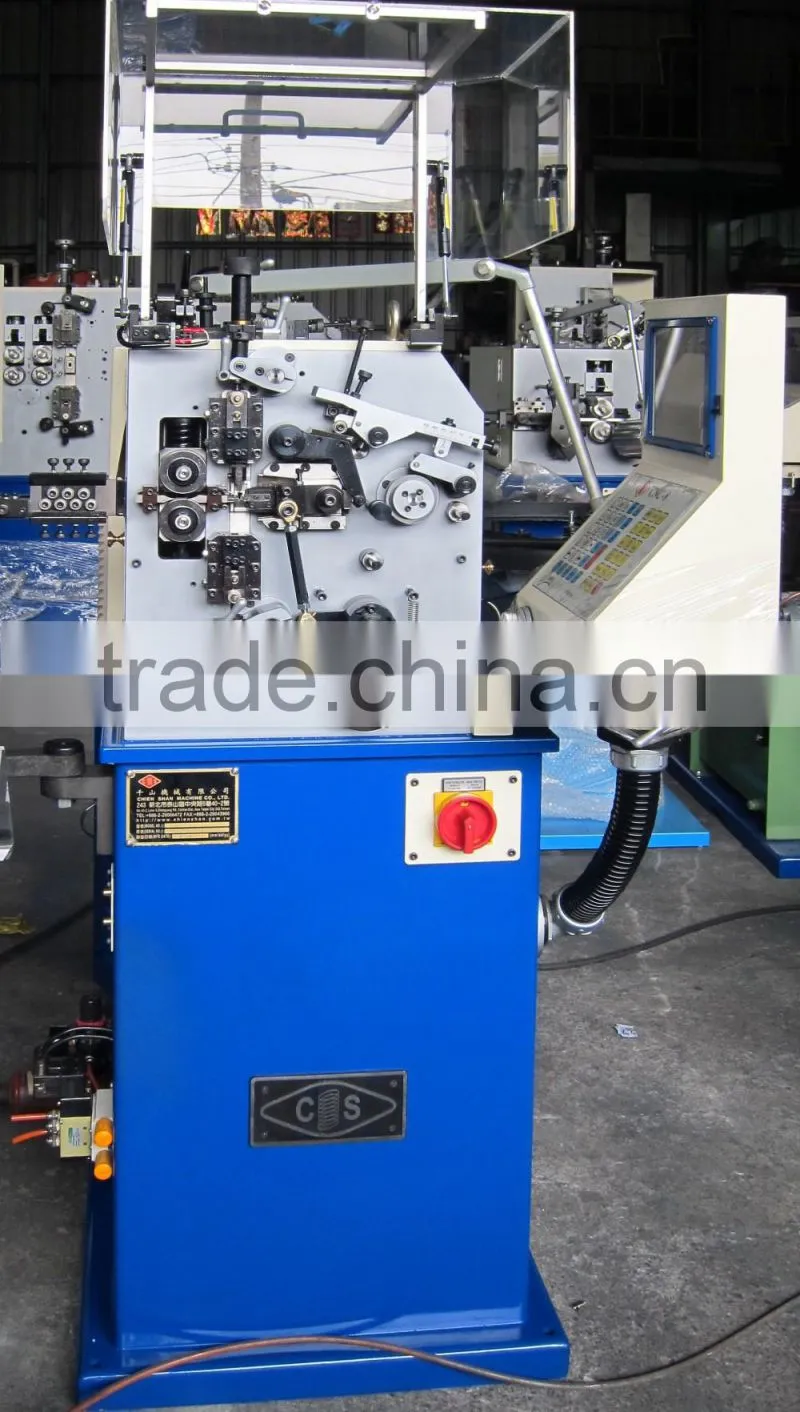

Steel Extension Spring Making Machine for Pen
Model |
Spring Coiling Machine |
Wire Diameter |
0.13 ~ 0.8 mm |
Max. O.D. |
20 mm |
Max. Production Speed |
600 pcs/min |
Feed Length |
Unlimited |
Feed Speed |
150 m/min |
Feed (Y) Axis (kw) |
Y Axis 750W |
Cam (X) Axis (kw) |
X Axis 750W |
Monitor Display |
Color / Chinese / English |
Max. Value |
X : 359.99° Y : 99999.99 mm |
Min. Value |
X : 0.01° Y : 0.01 mm |
Memory |
999 Programs Max. 250 Lines for each program |
Machine Dimensions |
88 x 88 x 180 cm |
Wooden Case Dimensions |
149 x 112 x 170 cm |
Machine Weights |
360 Kgs |
Gross Weights |
570 Kgs |
Power |
220V 3P 50/60Hz |
Wire Diameter suitable for 0.13 ~ 0.8 mm.
Max O.D. up to 20 mm.
2-axis control, for wire feed and pitch mechanism.
High precision equipped with CNC controlled servo-motion system
High production speed Max. up to 600 pcs/min..
Simplified setup and program with English/Chinese platform.
Capable of various kind of springs such as compression springs, oil seal springs, taper springs, battery springs and so on.

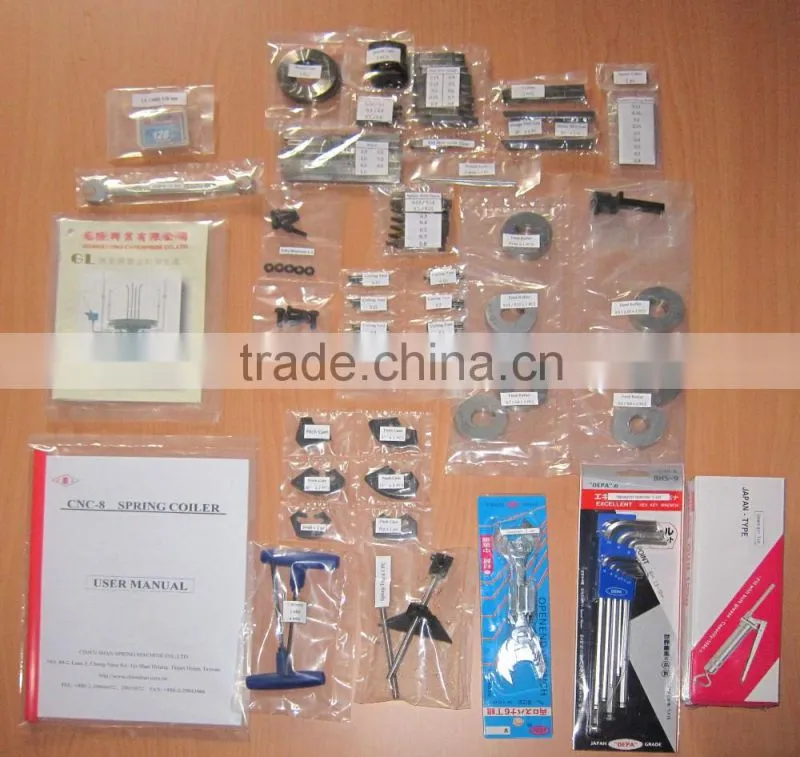

One Set Tools + User Manual
