Home > Manufacturing & Processing Machinery > Glass Machine > Glass Production Line > Good Quality Glass Shaping Machine

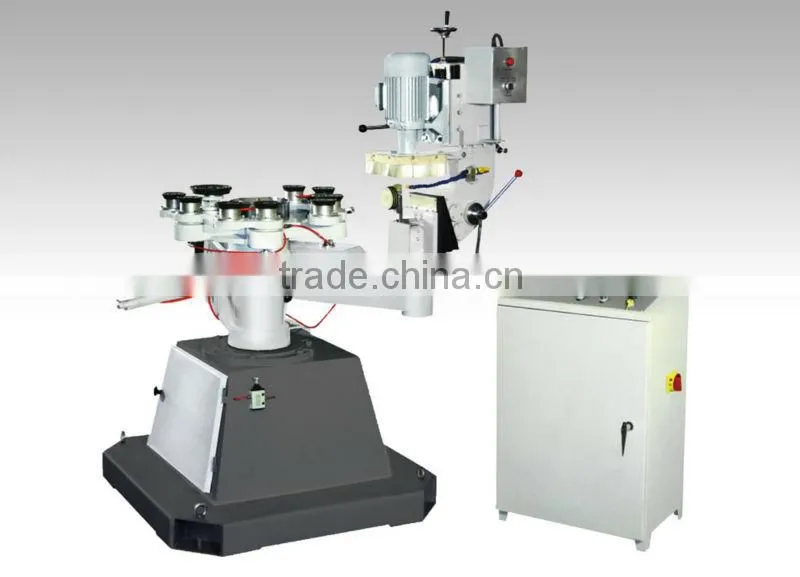

Good Quality Glass Shaping Machine

Name: Good Quality Glass Shaping Machine
Brand: SANKEN, S&K
SKU: 112517477

Good Quality Glass Shaping Machine thumbnail-1

Good Quality Glass Shaping Machine photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Machine Type:

Glass Edging Machine

Place of Origin:

Guangdong, China

Brand Name:

SANKEN, S&K

Contact Supplier Request Quote Chat Now

Guangzhou S&K Glass Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Machine Type Glass Edging Machine

Place of Origin Guangdong, China

Brand Name SANKEN, S&K

Model Number SKS-02, SKS-02

Certification CE

Specifications

We supply best glass machine, as: glass shape machine, glass shaped machine, glass shaping machine.

We supply best glass machine, as: glass shape machine, glass shaped machine, glass shaping machine.

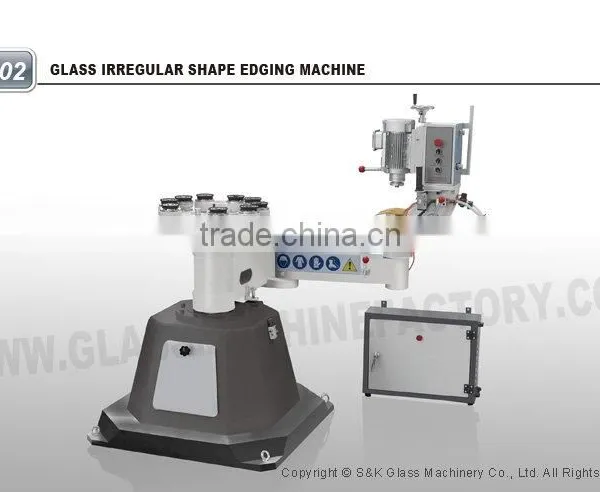

SKS-02 GLASS IRREGULAR SHAPE EDGING MACHINE (New Type)

Our Irregular Glass Edges Grinding is suitable for grinding and polishing the outer circle of the flat glass which are round, oval and even irregular. The base is made of cast and the other parts are made of high strength cast iron, so that the machine has high strength and precision, and the capability is steady. When working,the processed glass is adsorbed onto the vacuum sucker which is driven by an auxiliary motor enables the grinder to work moveably on irregular edges of flat glass in a diameter between l00 and 2000mm. And the speed can be adjusted discretionarily. This machine can also perform semi-grinding on simple-shape irregular glass. When grinding peripheries, three grinding wheels should be installed to do rough-grinding, fine-grinding and polishing. When grinding bevel edge, adjust the wheel to fit the grinding angle after installing the bowl-shape grinding wheel.

Main technique specification:

Movable diameter:	100-2000mm
Glass thickness:	3-30mm
Max.bevel width:	35mm
Bevel angles:	0-15
Speed of the satellitedisc:	0.5-2.5r/mm
Max.occupying area:	2500x2500mm
Total power:	3KW
Weight:	1 Tons
Overall size:	1200x1200mm

===================================================

About us:

S&K Glass Machinery Limited is a Professional Glass Machine Manufacturer & Exporter, we specialize in producing various of High-Class Glass Deep-processing Equipment, such as:

Glass Straight-Line Edging Machine, Glass Double Edging Machine, Bevelling Machine, Glass Washing Machine, Drilling Machine, Sandblasting Machine, Shape Machine, Cutting Machine, Engraving Machine, EVA Laminated Machine, Insulating Machine and etc.

For and on the basis of mutual benefits and further development, we are sincerely willing to be hand in hand together with you in sharing of fruitful success.
