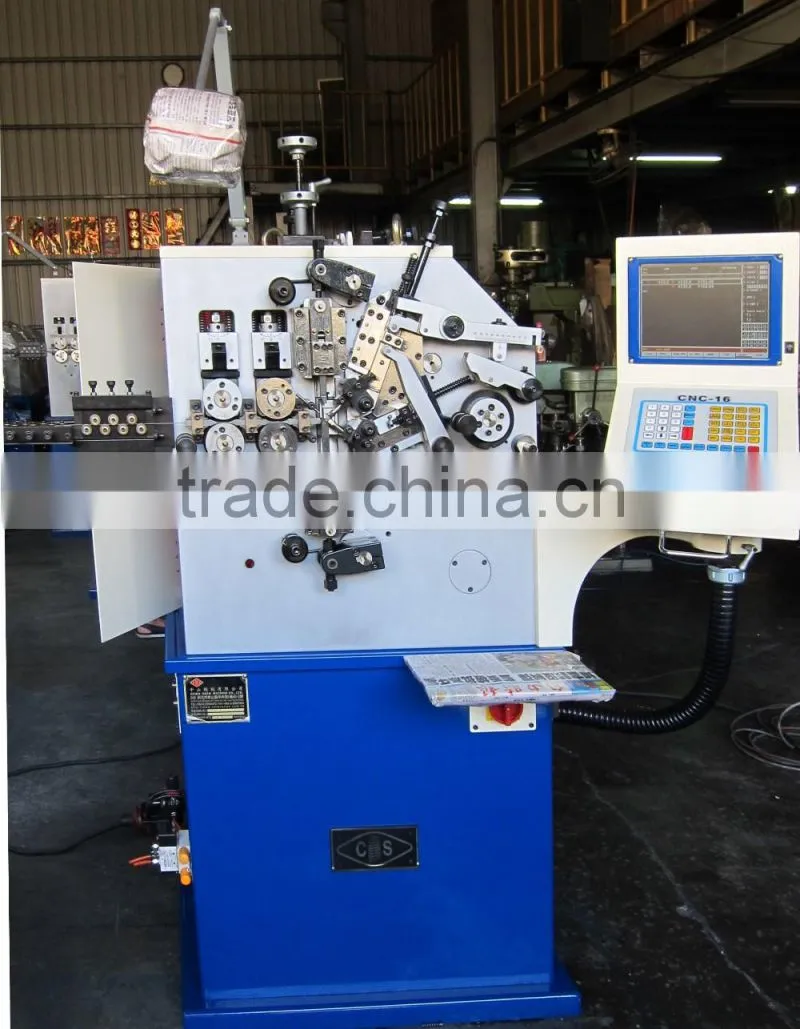

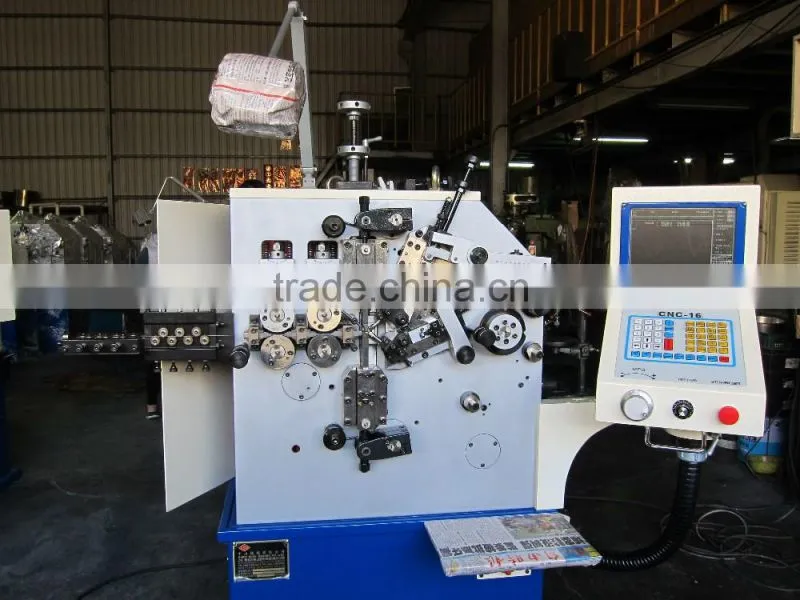

CNC-1623 Taiwan Manufacturer Multifuncational High efficiency Spring Mahcine
Model |

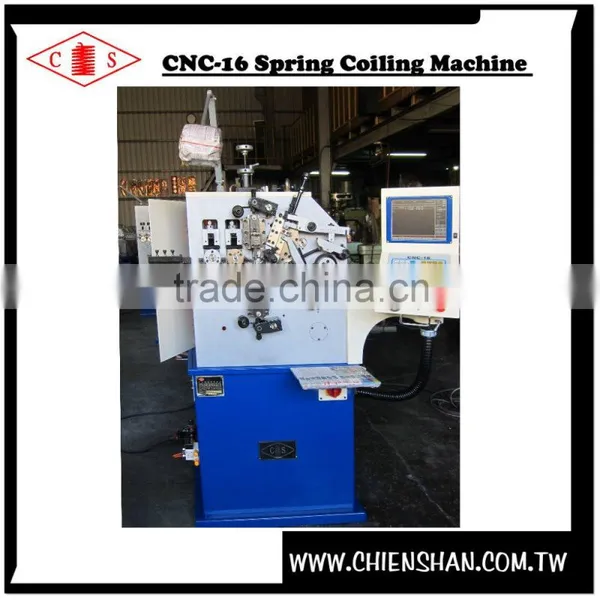

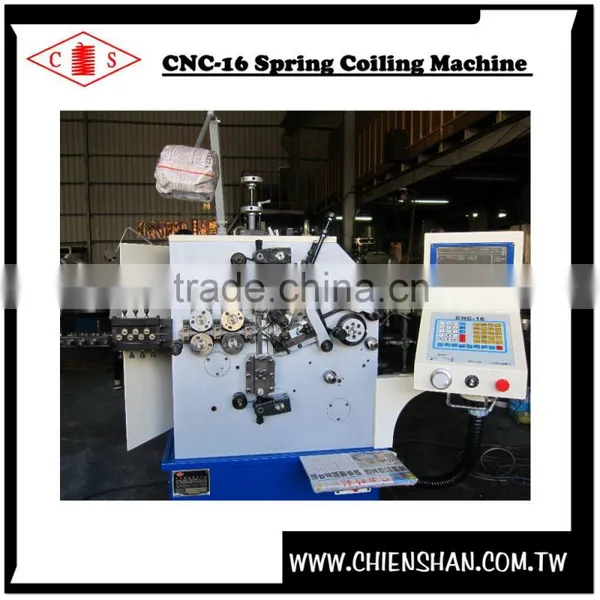

CNC-16 Spring Coiling Machine |
Wire Diameter |
0.4mm ~ 1.6 mm |
Max. O.D. |
45 mm |
Max. Production Speed |
400 pcs/min |
Feed Length |
Unlimited |
Feed Speed |
150 m/min |
D/d |
4 |
Feed (Y) Axis (kw) |
2.0kw |
Cam (X) Axis (kw) |
2.0kw |
Monitor Display |
Color / Chinese / English |
Max. Value |
X : 359.99 Y : 99999.99 mm |
Min. Value |
X : 0.01 Y : 0.01 mm |
Memory |
999 Programs Max. 250 Lines for each program |
Machine Dimensions |
138 x 98 x 168 cm |

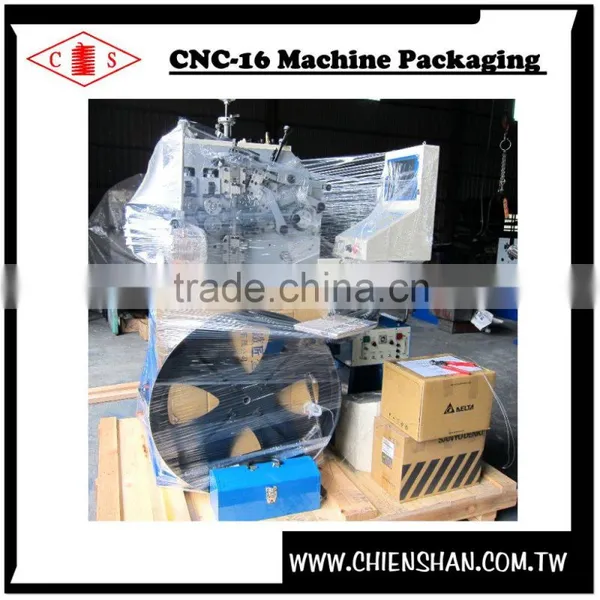

Wooden Case Dimension |
194 x 140 x 194 cm |
Machine Weights |
850 Kgs |
Gross Weights |
1180 Kgs |
Power |
220V 3P 50/60Hz |
Wire Diameter suitable for 0.4~ 1.6mm.
Max O.D. up to 45 mm.
2-axis control, for wire feed and pitch mechanism.
High precision equipped with CNC controlled servo-motion system
High production speed Max. up to 400 pcs/min..
Simplified setup and program with English/Chinese platform.

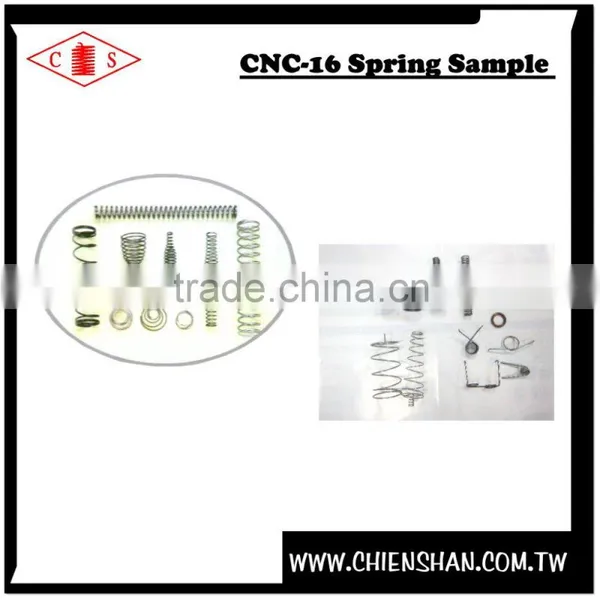

Capable of various kind of springs such as compression springs, oil seal springs, taper springs, battery springs and so on.

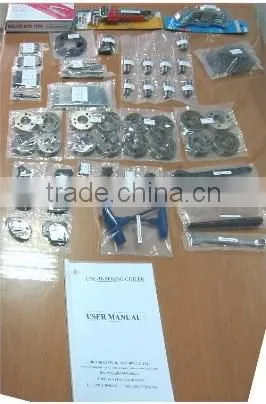

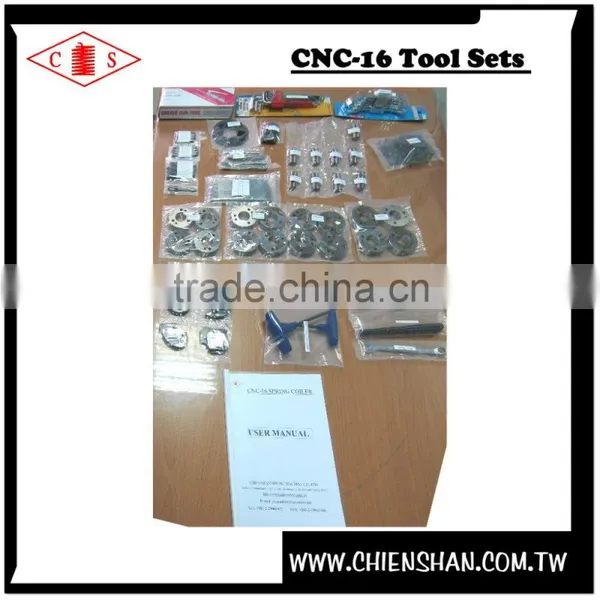

One Set Tools + User Manual
CNC-1623 Taiwan Manufacturer Multifunctional High efficiency Spring Machine
