Specifications
1- Automatic Glass Loading Machine,2-Automatic Glass Cutting Machine,
3-Pneumatic Glass Breaking Table

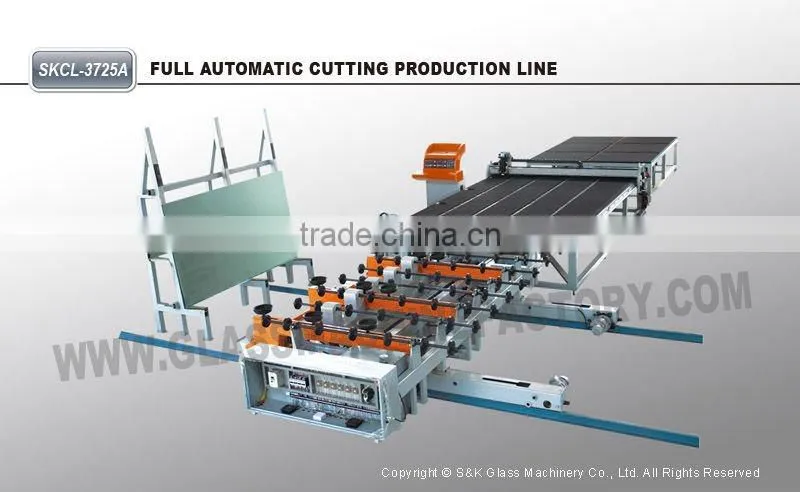

CNC Glass Cutting Machine Production Line in Guangzhou China
CNC Glass Cutting Machine Production Line in Guangzhou China glass machine
1.Glass Automatic Single-side Loading Machine:
1.1 Technical data
Table height:: |
910±10mm |
Max. Sheet Size: |
3660mmX2440mm |
Glass Loading Thickness: |
3-19mm |
Work cycle: |
≤65s |
Glass Conveying Speed: |
45m/min |
Max Glass Weight: |
500 KG |
Power: |
9.5 KW |
1.2 Introduction:
Driven by the gear motors, the machine can know the position of the glass sheet automatically.
Put the Glass-sheets in one side of the machine. Controlled by the PLC in the machine, the operator can finish the job from glass loading to glass position.
CNC Glass Cutting Machine Production Line in Guangzhou China glass machine
2. Automatic Glass Cutting Machine (Model No.: SKC-3725A)
2.1 Technical data:
Max cutting size mm |
3660×2440 |
Max through glass sizemm |
3700×2500 |
Glass cutting thicknessmm |
2-15 |
Cutting Accuracy ( mm |
±0.25/2000 |
Max Cutting speed( m/min |
90 |
|
Cutting function
|
Optical electronic location for cutting head / manual location for glass. |
|
Remark:
|
Machine equipped with glass typesetting and Optimization System. |
CNC Glass Cutting Machine Production Line in Guangzhou China glass machine
2.2 Introduction:
The operator can edit the glass size for cutting with computer. The computer can optimize the cutting size, and give out the data for processing, driven the machine to cut the glass sheet automatically in high speed and high precision.
GUARANTEE/ AFTER SALE SERVICE
Guarantee Period |
one year |
Best Service |
long-term technical support |
Other Supports |
English Software & Instruction, Detailed Videos |
CNC Glass Cutting Machine Production Line in Guangzhou China glass machine
CNC Glass Cutting Machine Production Line in Guangzhou China glass machine
