60A Automatic Distinguish Solar Charge Controller with 12V 24V
| Solar Charge Controller | |||||
| Model | SR-SC2050-30A | SR-SC2050-40A | SR-SC2050-45A | SR-SC2050-50A | SR-SC2050-60A |
| Rated Voltage | 12V/24V Automatic voltage recognition | ||||
| Max charge current | 30A | 40A | 45A | 50A | 60A |
| Max discharge current | 30A | 40A | 45A | 50A | 60A |
| Full charge cut | 13.7V/27.4V | ||||
| Low voltage cut | 10.5V/21V | ||||
| Low voltage restore | 12.6V/25.2V | ||||
| Temperatrre compensation | ‘-3mv/℃/cell | ||||
| Static current | ≤45mA | ||||
| Voltage drop | <220mv | <240mv | <245mv | <270mv | <320mv |
| Wire area max | 10mm2 | ||||
| Weight | 0.6Kg | ||||
| Size | 164mm*110mm*50mm | ||||
| Packing quantity | 30 PCS/CARTON | ||||
| Carton size | 385mm*350mm*380mm | ||||
| Gross weight | 12Kg | ||||
| Certificate: | CE, RoHs | ||||
| OEM & ODM: | YES | ||||

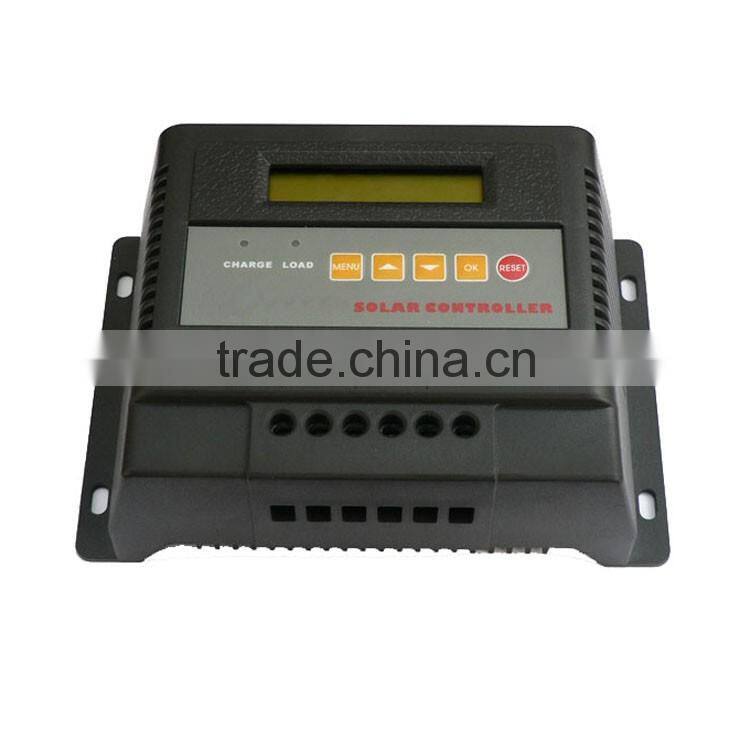

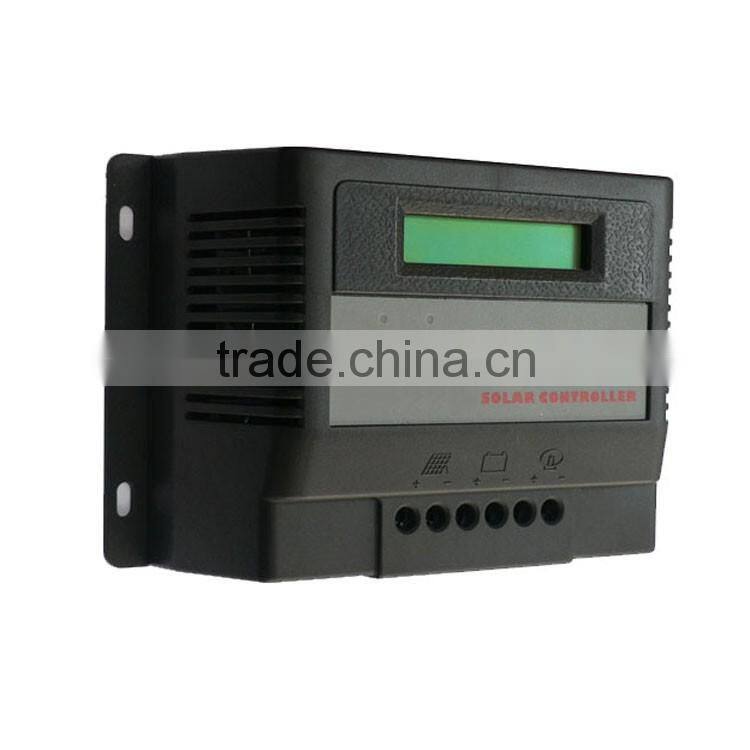

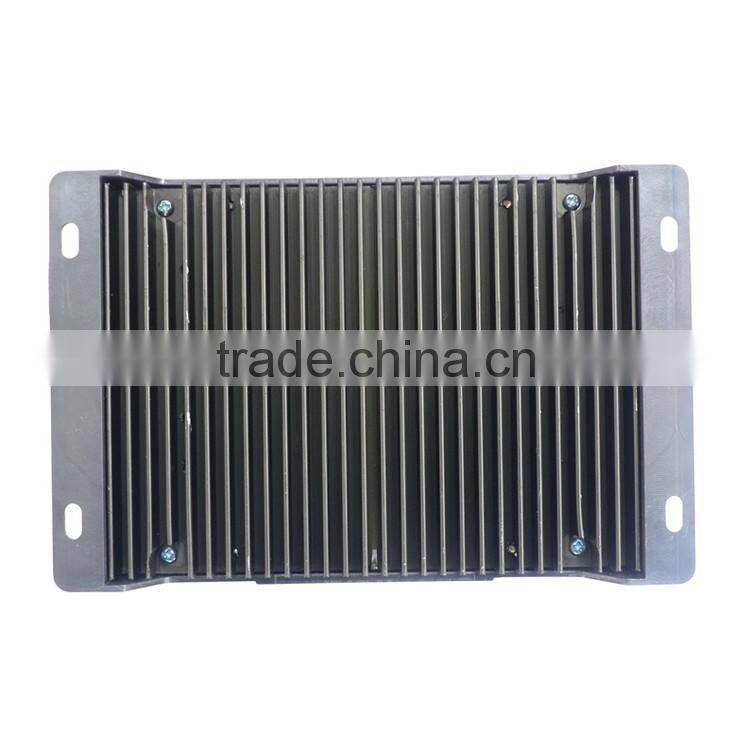

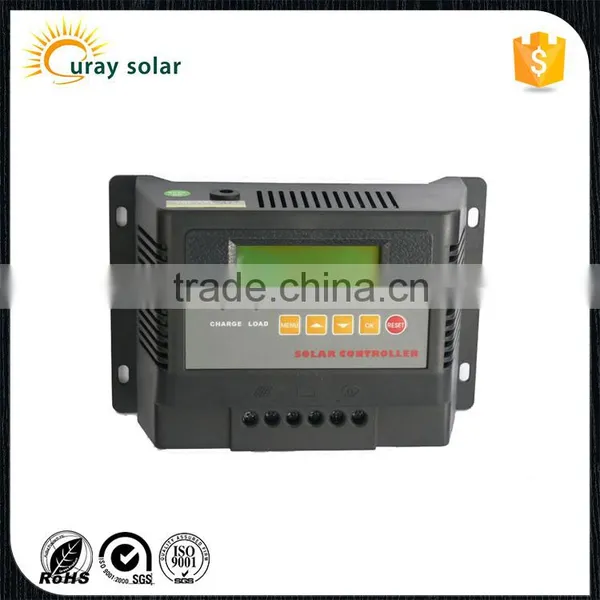

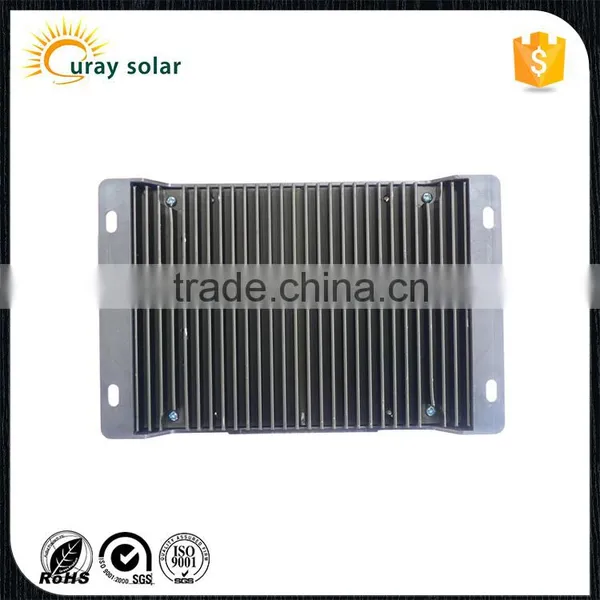

Product Show:
Product Features:
|
The controller is a kind of intelligent, multipurpose solar charge and discharge controller.The family use the fixed LCD display, with a very friendly interface,various control parameters can be flexibly set,fully meet your various application requirements. |
| 1.Image of LCD graphic symbol |
| 2.Automatic Identification System Voltage level |
| 3.Automatic Temperature Compensation |
| 4.Settable Operating mode of Load |
| 5.Battery low Voltage Disconnection(LVD) |
| 6.Simple button operation |
| 7.Intelligent PWM charge mode |
| 8.Adjustable charge-discharge control parameters |
| 9.Short Circuit Protection |
| 10.Battery reverse-discharge protection |
| 11.Battery reverse connection protection |
Contact Information
As an experienced solar photovoltaic products supplier, we offer products including solar outdoor lights: solar lawn lights, solar garden lights, solar street lights, solar wall lights, solar spot lights, solar pillar lights, solar flood lights and solar indoor lighting: solar home lights, solar lamps, solar lighting kits and solar system: solar charge controller, solar inverter, solar home systems. We own many years of production experience, our process technology has reached the advanced level in the solar photovoltaic industry.
1. Color box with inner EPE bag, individual box with carton box.
2, 50 pcs or 30 pcs for each carton, 630 cartons/20GP', 1260cartons/40GP'
3, Customized designs are also welcome.
1. Owning professional technologist and trained workers, we can offer high quality solar products to our customers and constantly updated our products with innovative design.
2. We offer OEM & ODM service to meet various requirements of customers.
3. We offer punctual delivery, good quality products at good price, and can reach different standards of many areas.
4. We have good shipping partner, which could help us to ship the goods to different designated places with high efficiency.
ODM / OEM design is welcome!
