Specifications
We supply glass machine such as glass water jet cutting machinemarble cutting machine water jet, waterjet cutting machine,Glass Water Jet Cutting Machine is CE Quality
1- CNC Cross-Axis Water Jet Cutting Machine
A- Bed guarantees a best stability and no any shake or distortion ever with a high speed operation;
B- No space ball bearing screw and linear guide;
C- Z axis driven by electric motor;
D- Handy integrated lubricated system provides a simple and esay maintenance;
E- Special designed protecting system guarantees a long using life of the equipment;
F- There are 1.0mx1.2m, 2.0mx1.4m, 2.5x1.4m, 2.0mx1.0m, 2.5x1.8m, 3.0mx1.8m, 4.0x1.8m for choosing.
CNC Marble Cutting Machine Water Jet in Guangzhou
glass water jet cutting machine
Cutting Specification of Waterjet Cutting Machine
Model |
SKWJ-1012 |
SKWJ-2014A |
SKWJ-2514A |
SKWJ-2518A |
SKWJ-3015A |
SKWJ-3018A |
SKWJ-4018 |
Cutting table Size |
1.8mx 1.4m |
2.1mx 1.6m |
2.7mx 1.6m |
2.7mx 2.0m |
3.2mx 1.7m |
3.2mx 2.0m |
4.2mx 2.1m |
Cutting stroke |
1.0mx1.2mx0.12m |
1.9mx1.4mx0.12m |
2.5mx1.4mx0.12m |
2.5mx1.8mx0.12m |
3.0mx1.5mx0.12m |
3.0mx1.8mx0.12m |
4.0mx1.8mx0.12m |
Traverse speed |
10m/min |
10m/min |
10m/min |
10m/min |
10m/min |
10m/min |
10m/min |
CNC control |
servo |
servo |
servo |
servo |
servo |
servo |
servo |
Machine Features Size |
1.8mx2mx1.5m |
2.9mx2.2mx1.8m |
3.5mx2.8mx1.8m |
3.5mx2.8mx1.8m |
4.3mx2.3mx1.8m |
4.0mx2.8mx1.8m |
5.3mx3.4mx1.8m |
Cutting Accuracy |
0.1mm |
0.1mm |
0.1mm |
0.1mm |
0.1mm |
0.1mm |
0.1mm |
glass water jet cutting machine
glass water jet cutting machine

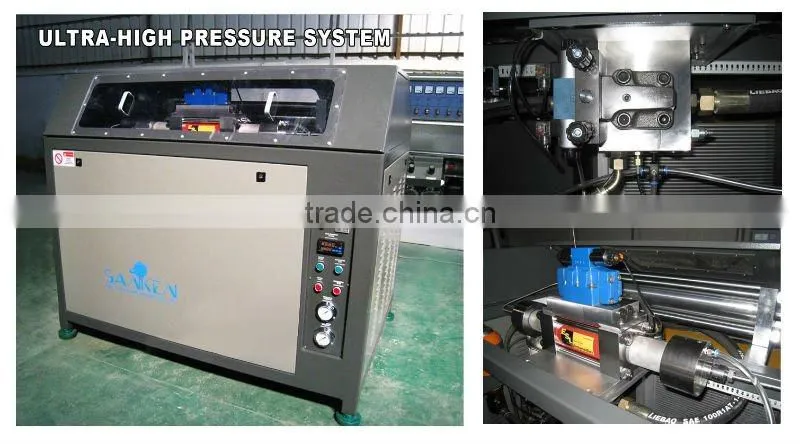

2- ULTRA-HIGH PRESSURE SYSTEM
A- Controlled by PLC;
B- Bigger Attenuator,stable pressure;
C- There are Air Cooling and Water Cooling to be chosen.
glass water jet cutting machine
Technical Data
Model Parameter |
Max presure |
Orifice dia |
Power |
L*W*H(m) |
Cooling |
3000a |
300/40,000 |
0.25 |
18.5/25 |
1.6x1.1x1.3 |
Water/Air |
4000a |
380/55,000 |
0.25 |
22/30 |
1.6x1.1x1.3 |
Water/Air |
4000b |
380/55,000 |
0.30 |
30/40 |
1.6x1.1x1.3 |
Water/Air |
4000c |
400/60,000 |
0.33 |
37/50 |
1.6x1.1x1.3 |
Water/Air |
glass water jet cutting machine
glass water jet cutting machine
GUARANTEE/ AFTER SALE SERVICE
Guarantee Period |
one year |
Best Service |
long-term technical support |
Other Supports |
English Software & Instruction, Detailed Videos |
WHY CUSTOMERS TRUST SANKEN
glass water jet cutting machine
glass water jet cutting machine
glass water jet cutting machine
