Product Name: |

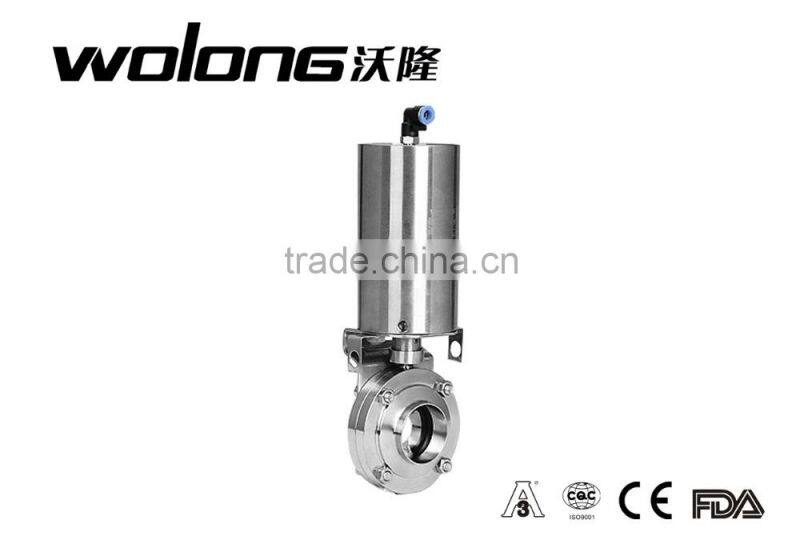

SS304 and SS316L stainless steel sanitary pneumatic butterfly valve with position sensor |
Material: |
ASTM T304/316L,1.4301/1.4404 |
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
Mex working pressure: |
1.0Mpa |
Max. Working Temperature: |
-10℃+150℃ |
Availably size: |
DN10-DN250, 1/2"-10" |
Availably connection: |
Clamp / weld / thread/ weld thread/ flange |
Availably standard |
3A, DIN, SMS, RJT, ISO, IDF |
Operated: |
Manual, Pneumatic, Electric |
Handle application: |
Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle |
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc |
Packaging Details: |
Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers. |
Delivery details: |
Usually within 20 days after receiving T/T down payment |
Q: Are you trading company or factory?
A: We are factory
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 10-45 days if the goods are not in stock, it is according to your quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can offer the samples for free, but we don't pay the cost of freight.
Q: What is your terms of Payment?
A: Payment<=3000 usd, 100% T/T in advance. Payment>=3000 usd, 30% in advance, 70% against B/L
