Home > Products > Sanitary SS Valve > Ball valve for sanitary or industry
Ball valve for sanitary or industry
- 100000 Piece / Pieces per Month
- Fuzhou Shanghai Ningbo
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Standard or Nonstandard: | Standard | Structure: | Ball | Pressure: | Low Pressure |
Power: | Manual | Material: | Stainless Steel | Temperature of Media: | High Temperature |
Media: | Other, gas ,oil ,water | Port Size: | 3/8"-6"&DN10-DN300 | Place of Origin: | Fujian, China |
Model Number: | WL004 | Brand Name: | Wolong |
Product Description
BALL VALVE for sanitary or industry
Specification
Product Name: | Ball Valve for sanitary or industry |
Material: | AISI304, AISI316L |
Size: | 1"-6"&DN10-DN150 |
Polished | mirror polished, sub-light, matt polished,180G, 240G, 400G,acid pickling |
Connection Mode: | Welded,Clamp,Threaded, Flanged |
Body: | Out from full machined, high polished. Ra less than 0.6um. 9.5 um, USA and Europe required. Electric polished and PTFE coating can be required |
Gasket/Seal: | EPDM,SILICONE RUBBER,PTFE,Viton/FRD |
Working Principal: | manual operation or driving device operation |
Pressure: | Low pressure , 0bar -1.0Mpa(10bar) |
Thickness: | 1.2mm--2mm |
Standard: | SMS,DIN,3A,ISO,IDF,BS4825, |
Processing: | imported CNC machined by forged |
Certificate: | CE, ISO9001/2008, 3A,SGS |
Application scope: | Dairy, food, beer, beverage, pharmacy, cosmetic, water etc |

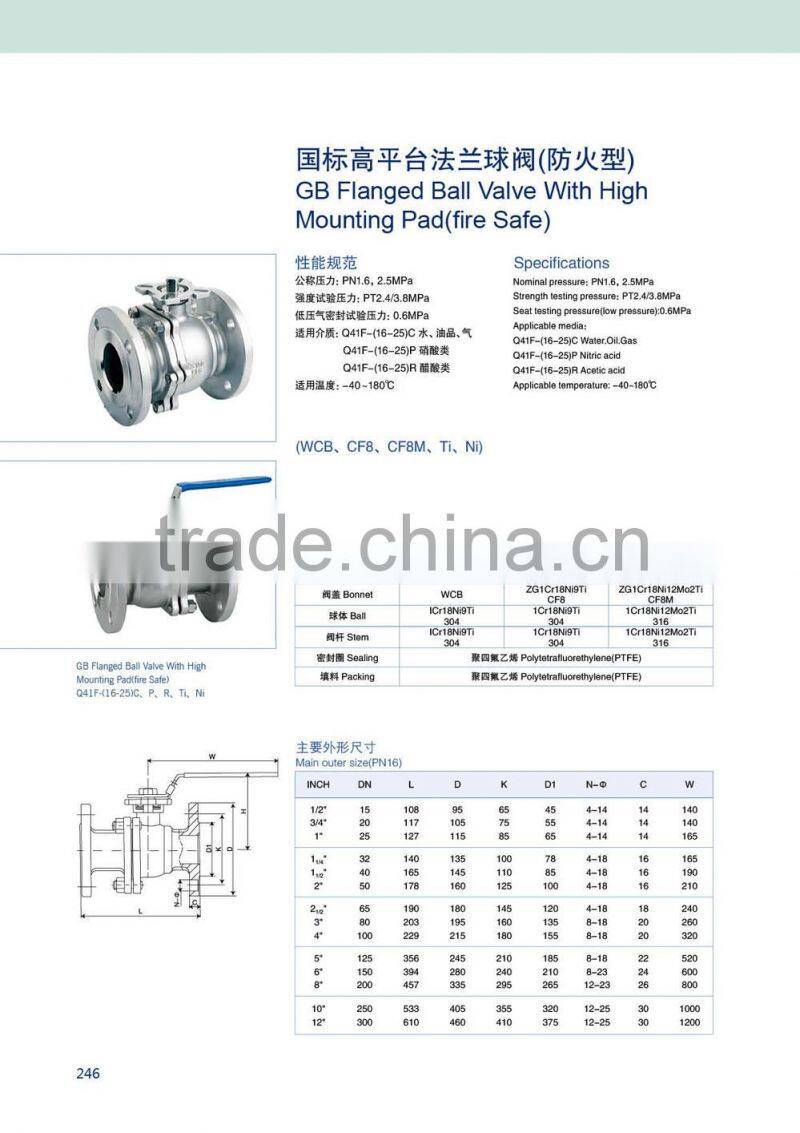

Product show

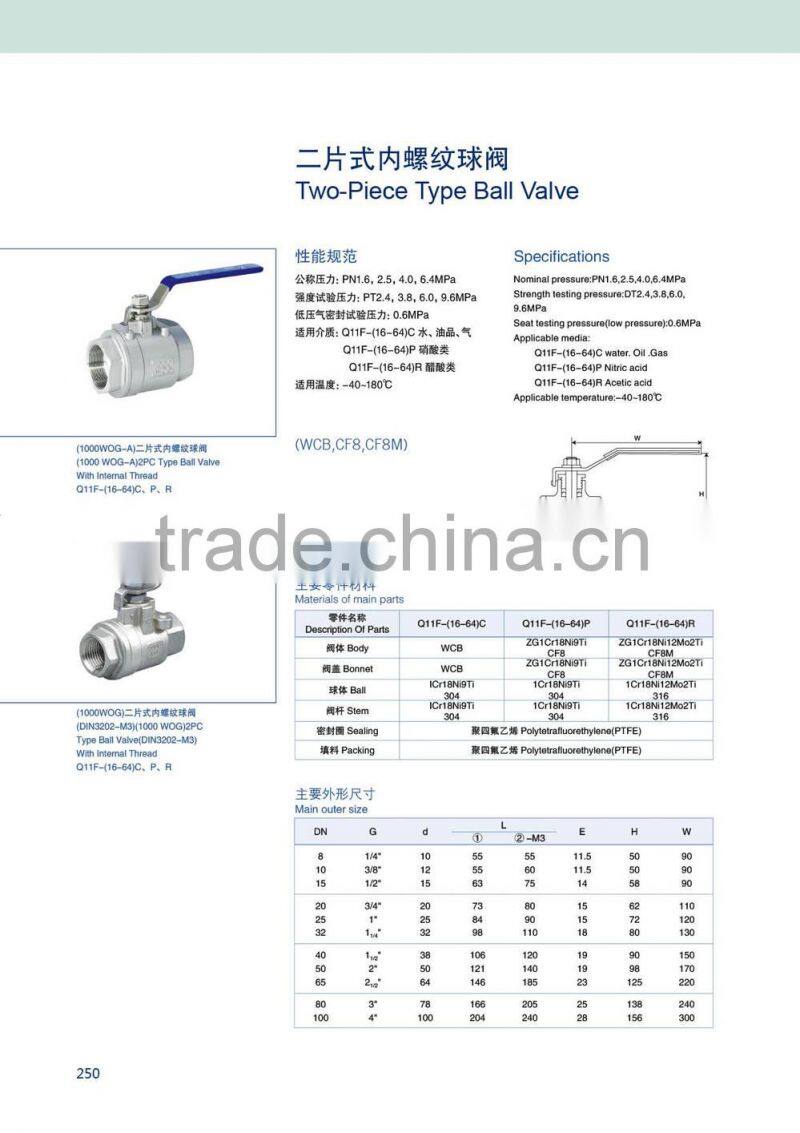

Specification data
Packaging and delivery
Wolong Introduce
Fujian Wolong Pipe &Valve Manufacturing Co., Ltd. manufactures stainless steel sanitary fluid valves, pipes and fittings.
Based on fine technology background and resources, the company designs and produces 3A, SMS, DIN, BS, AS, DS,
ISO, IDF, BPE and RJT sanitary standard pipe fittings and industrial standard pipe fittings to meet customers demands fully.
Its rich technology experience and consistent quality style ensure each pipe fitting in line with FDA and GMP requirements.
Certification
Trade show
Your Concern
A: We ususlly purchase 30% order earnest,70% before delivery goods
Q:What is your main market?
A:We have five years to export Australia,Many cooperationer in European Market.
Q:How about your capacity?
A:As you know,we have 100staffs,own two cut mechine,and 10pieces punch press,and 10 pieces lathe, and 20 people who responsible for polish. So please believe us we can delivery as you order.
Q:Can you give me a discount?
A: As you know,we are manufactory,so please believe us our price is competitive.If your orrder enough,we can consider give you a discount.
Q:Can i get free samples from your factory?
A: Yes,of course,we like to sent you free samples for your reference,however,freight you pay.
Q:If products have some quality problem,how would you deal with?
A:We will responsible for all the quality problems if this had happened.
