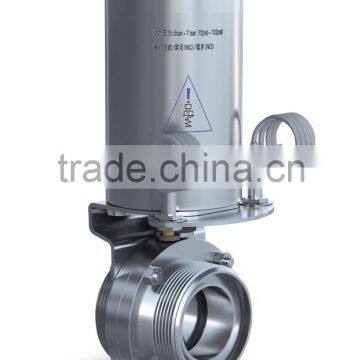

pneumatic sanitary butterfly valve stainless steel Butterfly valve

Product Name:

pneumatic sanitary butterfly valve stainless steel Butterfly valve

Material:

 ASTM T304/316L,1.4301/1.4404

Seal Material:

EPDM (standard) FPM/SILICON/NBR, FDA177.2600

Mex working pressure:

1.0Mpa

Max. Working Temperature:

-10℃+150℃

Availably  size:

DN10-DN250, 1/2"-10"

Availably connection:

Clamp / weld / thread/ weld thread/ flange

Availably standard

3A/DIN/SMS/RJT/ISO/IDF

Operated:

Manual,Pneumatic, Electric

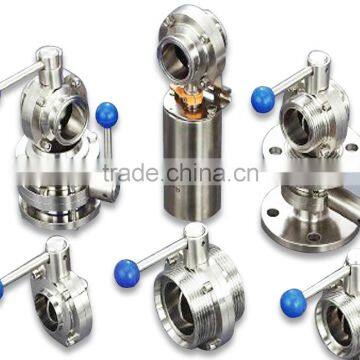

Handle application:

Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc

Packaging Details:

Plastic pack for each valve. then a carton, then to woodencase.Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment
